Summary of Contents for Kinnarps WORKS DS

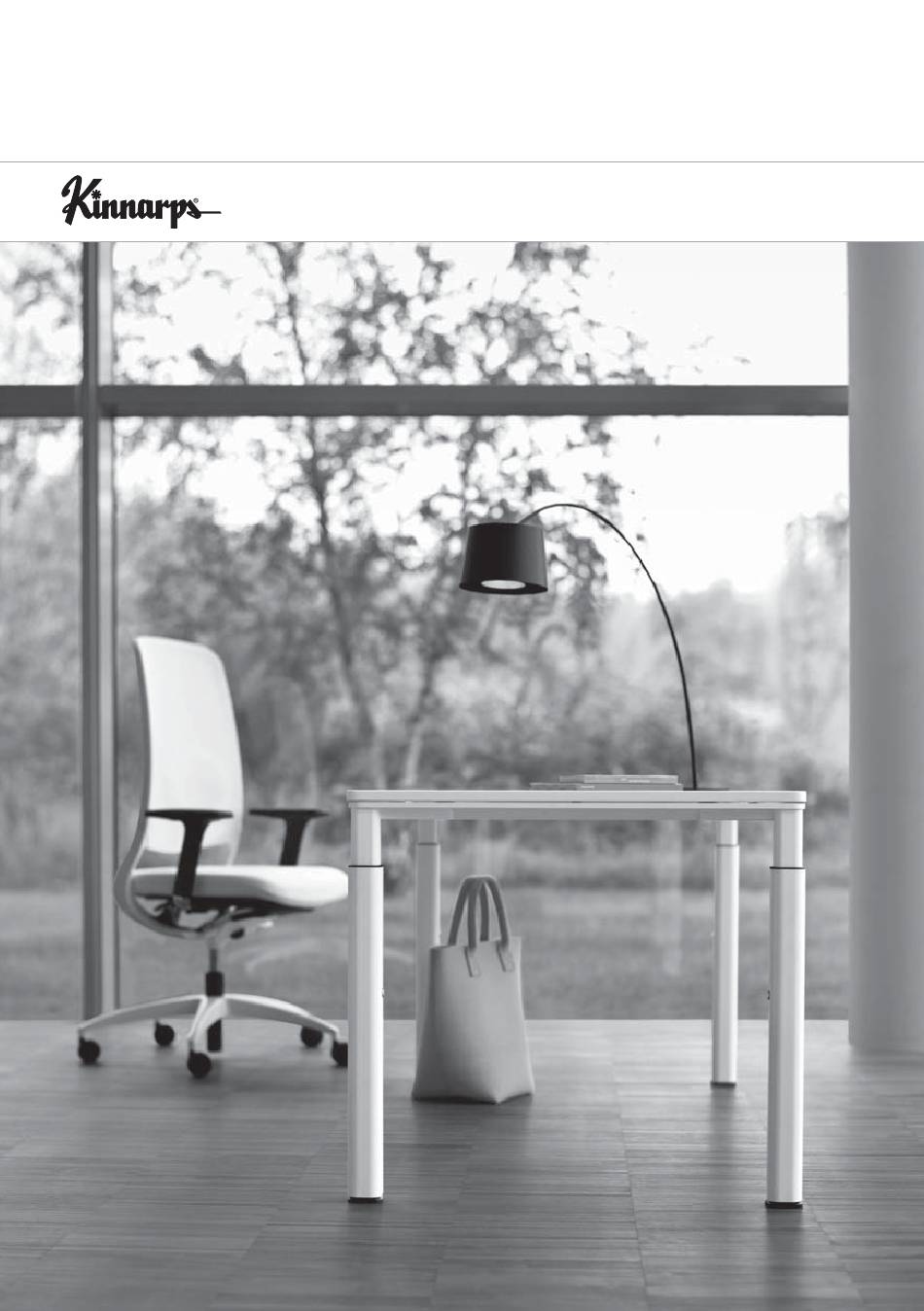

  • Page 1 Montageanleitung WORKS DS Assembly instructions WORKS DS...
  • Page 3: Table Of Contents

    Inhalt Contents Montage Fuß Assembly leg Montage Stützfuß Assembly support leg Montage 3. Ebene Assembly 3rd level Montage CPU-Halter Assembly computer bracket Montage Druckertablar Assembly printer shelf Montage Blockansatz Assembly twin workplace extension Montage Erweiterungselement Assembly extension unit Montage Verbindungselement Assembly linking unit Montage Kabelkanal Assembly cable duct...
  • Page 4: Montage Fuß

    Montage Fuß Assembly leg M10 x 20 / 6 mm 50 Nm...
  • Page 5: Montage Stützfuß

    Montage Stützfuß Assembly support leg M8 x 30 / 6 mm 30 Nm...
  • Page 6: Montage 3. Ebene

    Montage 3. Ebene Assembly 3rd level M6 x 16 / 5 mm M8 x 20 / 6 mm 10 Nm 30 Nm...
  • Page 7: Montage Cpu-Halter

    Montage CPU Halter Assembly computer bracket M6 x 16 / 5 mm 10 Nm...
  • Page 8: Montage Druckertablar

    Montage Druckertablar Assembly printer shelf 10 Nm 4 mm Schrauben sind am Druckertablar befestigt / Screws are attached to the printer shelf...
  • Page 9: Montage Blockansatz

    Montage Blockansatz Assembly twin workplace extension M6 x 16 / 5 mm 10 Nm...
  • Page 10: Montage Erweiterungselement

    Montage Erweiterungselement Assembly extension unit M6 x 16 / 5 mm 10 Nm...
  • Page 11: Montage Verbindungselement

    Montage Verbindungselement Assembly linking unit M10 x 20 / 6 mm 50 Nm...
  • Page 12: Montage Kabelkanal

    Montage Kabelkanal Assembly cable duct M6 x 45 / 5 mm 10 Nm...
  • Page 13: Montage Beinraumblende

    Montage Beinraumblende Assembly modesty panel M6 x 16 / 5 mm 10 Nm 10 Nm...
  • Page 14: Montage Beinraumblende

    Montage Beinraumblende Assembly modesty panel Holz / wood 5 x 20 / PZ 2 Lochblech / perforated metal plate Glas / glass M8 x 25 / 5 mm...
  • Page 15: Höhenverstellung

    Höhenverstellung Height adjustment werkzeuglos / tool-less Bitte drehen Sie den Knopf (siehe unten), um die Höhe verstellen zu können. Please turn the button as shown below to be able to adjust the height. Tischplatte nach oben: jetzt an Tischplatte ziehen Tischplatte nach unten: Knopf jetzt eindrücken und Tischplatte nach unten schieben Table top up: lift table top now...
  • Page 16 Montageanleitung WORKS DS Assembly instructions WORKS DS Kinnarps’ business philosophy is simple. We create effi cient, long-term, global solutions to improve the way you work and the prosperity of your business. Kinnarps GmbH Kinnarps GmbH Technische Änderungen, Druckfehler Mainzer Straße 183 Cammer Straße 17...
