Summary of Contents for POWERTECH PLUS MB3613

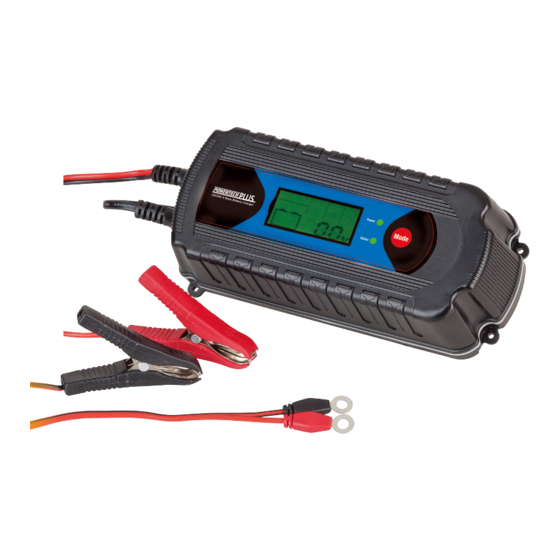

- Page 1 12V / 24V, 7.2Amp / 3.6Amp 9 Stages Charging Smart Battery Charger MB3613 User Manual Thank you for purchasing this charger, please read this manual carefully before use to ensure your safety and optimal use of your product. We recommend to keeping this manual for future reference.
-
Page 2: Important Safety Instructions
Suitable for Normal Lead Acid, Sealed, Gel or Lipo4 Batteries between 5-150Ah for 12V batteries and 5-120Ah for 24V batteries. IMPORTANT SAFETY INSTRUCTIONS Gases the battery, and the area should be kept well ventilated. Because of this risk of explosive gas only connect and disconnect the battery leads when the mains supply is disconnected. -
Page 3: Charging Characteristic
FEATURES Automatic and Intelligent 9-Stage Charging Curve The MB3613 is controlled by a microprocessor with 9-stage charging characteristic for charging batteries automobiles, motorcycles, snow mobiles, tractors, personal watercraft, boats etc. A microprocessor senses the condition of the battery to provide the right current and voltage to the battery (charging characteristic). - Page 4 Power Supply: MB3613 has a power supply mode setting which has a constant voltage of 13.8V and current up to 5A, keep to provide power to computer system of modern car when replacing battery (Please don’t reverse battery connection to avoid the...
-
Page 5: Reverse-Polarity Protection
Charge Memory If power off on charging, MB3613 can automatically restart charging base on pre -vious on previous power down status for battery and charging current. ATTENTION: Once the clamp of charger is disconnected from the battery, this me- mory is erased and the charging mode will need to be reselected. -
Page 6: Mode Button
OPERATION Charger LED display Power LED - Green color LED to indi- cate Power is connect to charger STATUS LED - Green color LED to indica- te that the battery is char- ging. Red color LED to in- dicate a charging failure, battery problem or reverse polarity. -
Page 7: Preparing The Battery
(marked N or -). Once you connected the MB3613 battery charger to AC power, it will sound a tone for 0.5 seconds and all of the LEDs on the touch panel will be on for a short time. -
Page 8: When Charging Is Complete
3. CHARGING • Connected to power supply and the battery, the charger will automatically enter into charging status, it is working on slow charging stage for 12V batteries by default. The slow charge icon will illuminate, and the charger is automatically detecting the battery. This is the standard charging mode. -
Page 9: Maintenance And Care
MAINTENANCE AND CARE It is essential to keep your battery regularly charged throughout the year, especially during the winter months. In the winter the effectiveness of your car battery is redu- wipers and lights are all draining power. It is at this time that batteries have to be at peak power.
