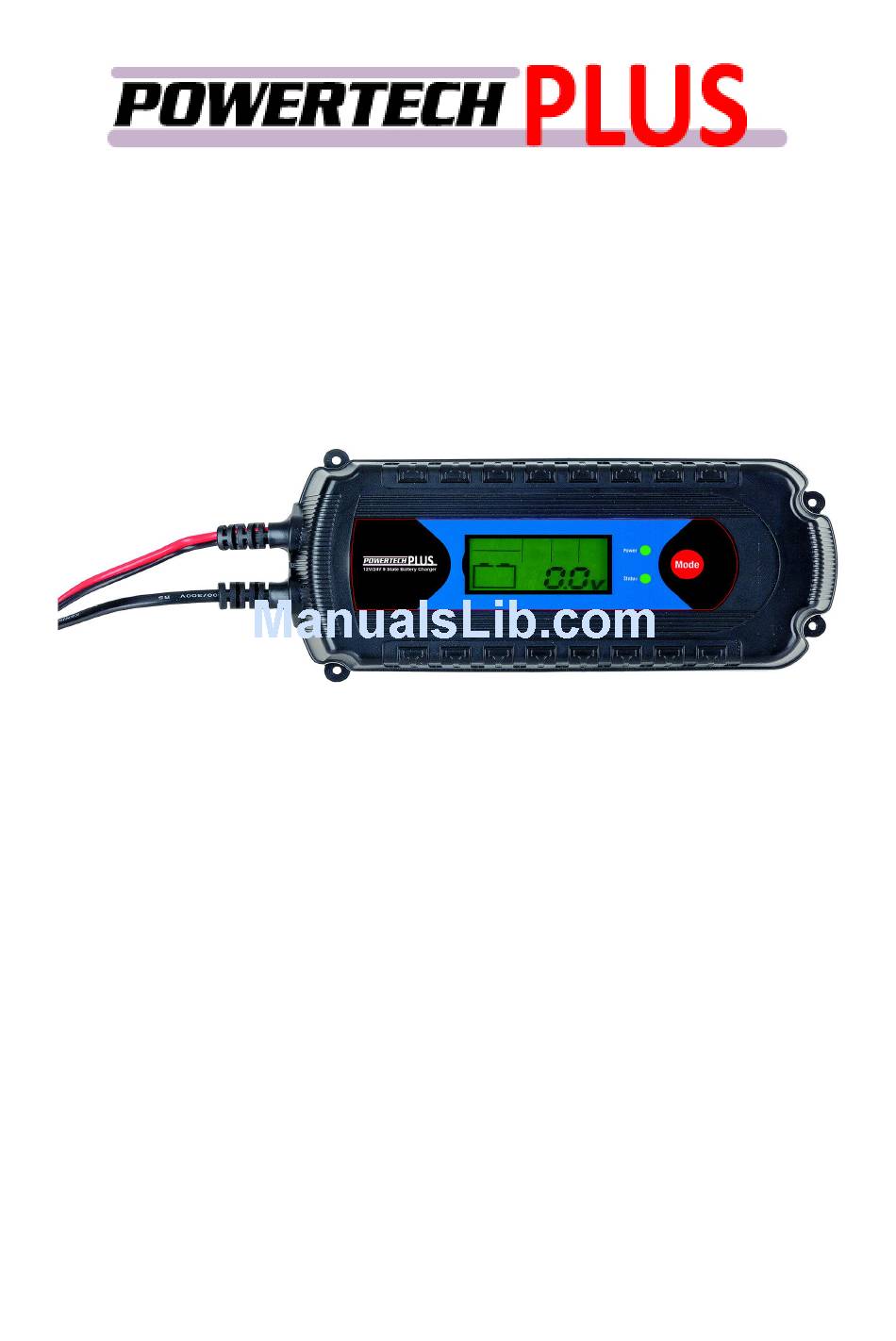

- Page 1 9-Stage 12/24V Battery Charger MB-3613 User Manual...
- Page 2 The charger is suitable for 12V/24V regular ,lead-acid and Lithium Iron Phosphate batteries with 5Ah~120Ah capacity.
- Page 3 Charging modes include: 12V/2A (standard), 12V/7.2A (standard), 12V/7.2A(AGM), 12V/7.2A(Lithium),12V/7.2A(recondition), 24V/2A (standard), 24V/3.6A(standard) , 24V/3.6A (AGM) and 24V/3.6A (Lithium).
- Page 5 LCD Display Information: Charging Features: Bad Battery Detection (1) ▪ Measures the voltage of your battery prior to charging. ▪ If the reference voltage is ≥30V±0.5, it's considered a 'bad battery'. Devulcanisation (2) ▪ When the charging period reaches four hours in Pulse Charging mode and the battery voltage variation exceeds the voltage setting, the system enters the next mode.
- Page 6 Pre Charge (3) ▪ Identifies the battery voltage before charging. ▪ If the battery voltage is lower than the reference voltage, the battery will be pre-charged in order to avoid damage to the battery. ▪ 12V: 5-8V 2 minutes, 8-10V 9 hours. ▪...
- Page 7 Float Charge (8) ▪ The maintenance charge. ▪ Trickles the charge until the battery is nearly at 100% capacity. ▪ Charging with a small current can eliminate the vulcanization of the negative electrode plate. Pulse Charge (9) ▪ Once the battery voltage has been adjusted in the previous mode, the battery voltage returns to 13V/26V when the pulse charging mode is executed.
- Page 8 12V/2A SLOW standard charging mode 12V/7.2A FAST standard charging mode 12V/7.2A FAST AGM charging mode 12V/7.2A FAST Lithium charging mode 24V/2A SLOW standard charging mode 24V/3.6A FAST standard charging mode 24V/3.6A FAST AGM charging mode 24V/3.6A FAST Lithium charging mode Power output mode 5.1A 13.8V...
- Page 9 Lead-Acid and Lithium Iron Phosphate...
-
Page 10: Error Codes
Error Codes &Solutions: Problem Error Codes Solutions Check the battery voltage is for 12V Battery failed system Remove the reverse, unplug immediately Reverse polarity from mains, connect the red clamp to Er1 + Red LED protection positive (+) battery post, and black light on clamp to negative (-) post. - Page 11 Distributed by: TechBrands by Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com Made in China...
