TytoPro
Tyto Exam Camera
User Guide
August 2019
Document Number: 760-00045 C01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TytoPro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TytoCare TytoPro

Summary of Contents for TytoCare TytoPro

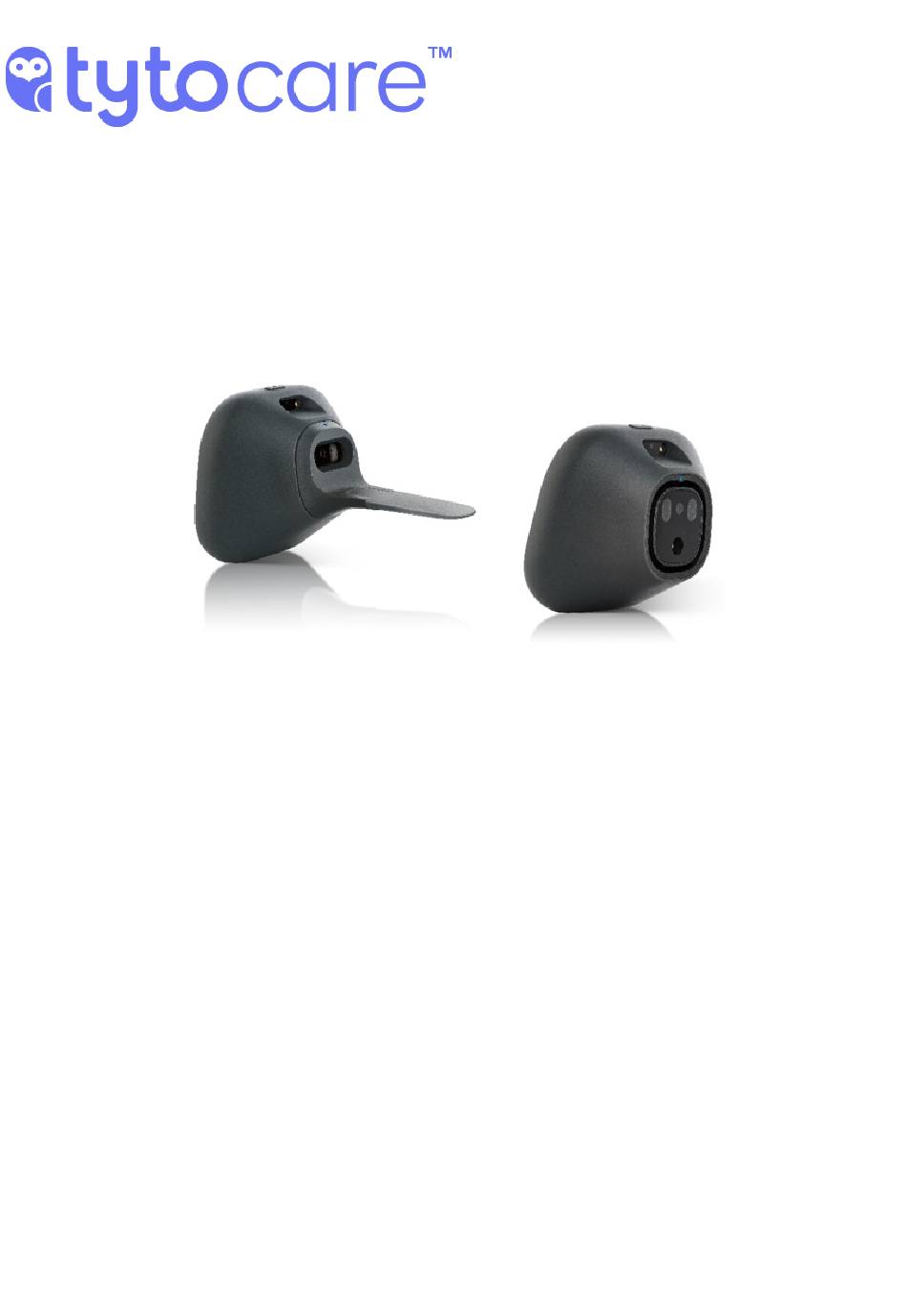

  • Page 1 TytoPro Tyto Exam Camera User Guide August 2019 Document Number: 760-00045 C01...
  • Page 2 TytoCare Ltd., is strictly prohibited. In the event of any permitted copying, redistribution or publication of copyrighted material, no changes in, or deletion of, author attribution, trademark legend or copyright notice shall be made.

  • Page 3: Table Of Contents

    TytoPro Tyto Exam Camera User Guide Table of Contents General Safety Messages/Product Overview General Safety Messages Product Overview Before the Exam User Role Performing Guided and Unguided Exams Guided Exams Prepare for Throat or Skin Exam Select Which Exam Video Tutorial and Animation...
  • Page 4 TytoPro Tyto Exam Camera User Guide Changing the Illumination Brightness Take Pictures Finishing the Skin Exam Tagging Body Part After the Exam © 2019 TytoCare All rights reserved. 4 of 26...

  • Page 5: General Safety Messages/Product Overview

    Note: A note provides other important information. Disclaimer Information provided by TytoCare is believed to be accurate and reliable. However, TytoCare assumes no responsibility for the use of such information, nor for any infringements of patents or other rights of third parties, that may result from its use.
  • Page 6 TytoPro Tyto Exam Camera User Guide General Safety Messages/Product Overview By a clinician/healthcare professional, collaborating online with another clinician during or after examinations. © 2019 TytoCare All rights reserved. 6 of 26...

  • Page 7: Before The Exam

    The type of user role, Guided or Unguided, is defined by the System Administrator when your user was created. Contact the System Administrator of your TytoCare system to determine whether your user is defined as Guided or Unguided, or in case you wish to change your user role.

  • Page 8: Guided Exams

    TytoPro Tyto Exam Camera User Guide Guided Exams Guided Exams Note: Refer to the TytoPro General Operation User Guide for preliminary instructions on logging in to the system and viewing the Exam menu. Prepare for Throat or Skin Exam This section discusses the preparatory steps that are common for both exams - throat and skin.

  • Page 9: Video Tutorial And Animation

    TytoPro Tyto Exam Camera User Guide Guided Exams Video Tutorial and Animation The first time you do either exam, a video tutorial is played on the Tyto App. This tutorial is essential to instruct you how to perform the exam successfully. Please watch the complete tutorial before starting the exam.

  • Page 10: Using The Tongue Depressor

    TytoPro Tyto Exam Camera User Guide Guided Exams 2. Tap START to start recording video. Point camera towards tonsils. The tonsils are loc- ated at the back of the mouth, at the sides of the uvula. Please note: Use the “Desired Image” picture, shown in the Tyto App, to see what the tonsils look like.
  • Page 11 TytoPro Tyto Exam Camera User Guide Guided Exams How to connect the tongue depressor: 1. Attach the holder connector part to the device socket, following the blue dots. © 2019 TytoCare All rights reserved. 11 of 26...
  • Page 12 TytoPro Tyto Exam Camera User Guide Guided Exams 2. Insert the disposable tongue depressor blade into the holder until you hear a lock- ing click. © 2019 TytoCare All rights reserved. 12 of 26...
  • Page 13 TytoPro Tyto Exam Camera User Guide Guided Exams 3. To detach the blade from the holder, press the locking latch at the bottom of the tongue depressor. Warning: If the tongue depressor disconnects from the tongue depressor holder, for example by the patient biting the tongue - gently pull the tongue depressor out of mouth, or wait until the patient releases the tongue depressor.

  • Page 14: Start Recording

    TytoPro Tyto Exam Camera User Guide Guided Exams Start Recording 1. Position the Tyto Exam Camera as shown in the animation. 2. When you tap Start on the device, the device will immediately begin recording video for the throat exam.

  • Page 15: Review Or Delete The Recording

    TytoPro Tyto Exam Camera User Guide Guided Exams Review or Delete the Recording From the Tyto App, you can view or delete the recording: Play to start exam video, or (Delete) to delete. Take Another Recording If the recorded video was not successful, or the tonsils were not visible, you can retake the exam.

  • Page 16: Skin Exam

    TytoPro Tyto Exam Camera User Guide Guided Exams Skin Exam Review Skin Exam Procedure Please take a few moments to review the basic procedure for performing the skin exam. 1. Place the device about 1.5-2 inches from skin to allow the camera to focus.

  • Page 17: Take A Picture

    Note: If you cannot obtain a sharp image, try moving the camera a small distance away from the skin. If you still cannot get a sharp image, contact TytoCare Support. Take More Pictures or End the Exam...

  • Page 18: Reviewing Pictures In The Gallery

    TytoPro Tyto Exam Camera User Guide Guided Exams Tap Redo) to return to the Camera screen, where you can take another picture (DONE) to end the exam and return to the Exam selection screen. Reviewing Pictures in the Gallery Picture Gallery allows you to view the skin images you have taken, and optionally to delete or tag the relevant body part of each image.
  • Page 19 TytoPro Tyto Exam Camera User Guide Guided Exams 3. Tap the image you wish to view 4. View image and tag body part (see below). Please review each captured image and make sure the image is clear and sharp. If you wish to delete the picture, tap (Delete).

  • Page 20: Tagging Body Part

    TytoPro Tyto Exam Camera User Guide Guided Exams Note: After deleting the picture, the Device will continue to show the “Repeat” or “Done” buttons with “Image captured” indication. This is standard behavior for the Device. Tagging Body Part It’s recommended to tag the body part of the skin images to allow the clinician to know which body area the image was taken from.
  • Page 21 TytoPro Tyto Exam Camera User Guide Guided Exams 2. Type the relevant body part 3. Finish typing or tap the body part from the opened list. Please refer to Section - After the Exam in the Tyto Device General User Guide for further instructions.

  • Page 22: Unguided Exams

    TytoPro Tyto Exam Camera User Guide Unguided Exams Unguided Exams Note: Refer to the TytoPro General Operation User Guide for preliminary instructions on logging in to the system and viewing the Exam menu. Throat Exam To start a throat exam, tap THROAT from...

  • Page 23: Finishing The Throat Exam

    TytoPro Tyto Exam Camera User Guide Unguided Exams Finishing the Throat Exam When you have completed the necessary video recordings, and the tonsils are clearly recorded, (DONE) on the device. This will stop the video recording and exit the throat exam.

  • Page 24: Skin Exam

    TytoPro Tyto Exam Camera User Guide Unguided Exams Skin Exam To start a skin exam, tap SKIN from the examination selection screen. Note: The Skin icon is located on the second screen of the device, by swiping the screen to the left.

  • Page 25: Finishing The Skin Exam

    1.5-2 inches (3.5-5 cm) away from the skin to achieve focus. Note: If you cannot obtain a sharp image, try moving the camera a small distance away from the skin. If you still cannot get a sharp image, contact TytoCare Support. Finishing the Skin Exam...

  • Page 26: Tagging Body Part

    TytoPro Tyto Exam Camera User Guide Unguided Exams Tagging Body Part For each picture that you have taken, it is recommended to tag or identify which part of the body the picture represents. This is done using the Picture Gallery feature in the App. For details, see Section - Tagging Body Part.
