ALEKO® Outdoor Barrel Sauna
www.AlekoProducts.com
B4C/B5C/B6C/B8C
Series with canopy
B4/B5/B6/B8
Series without canopy
'
User s Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the B4 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aleko B4 Series

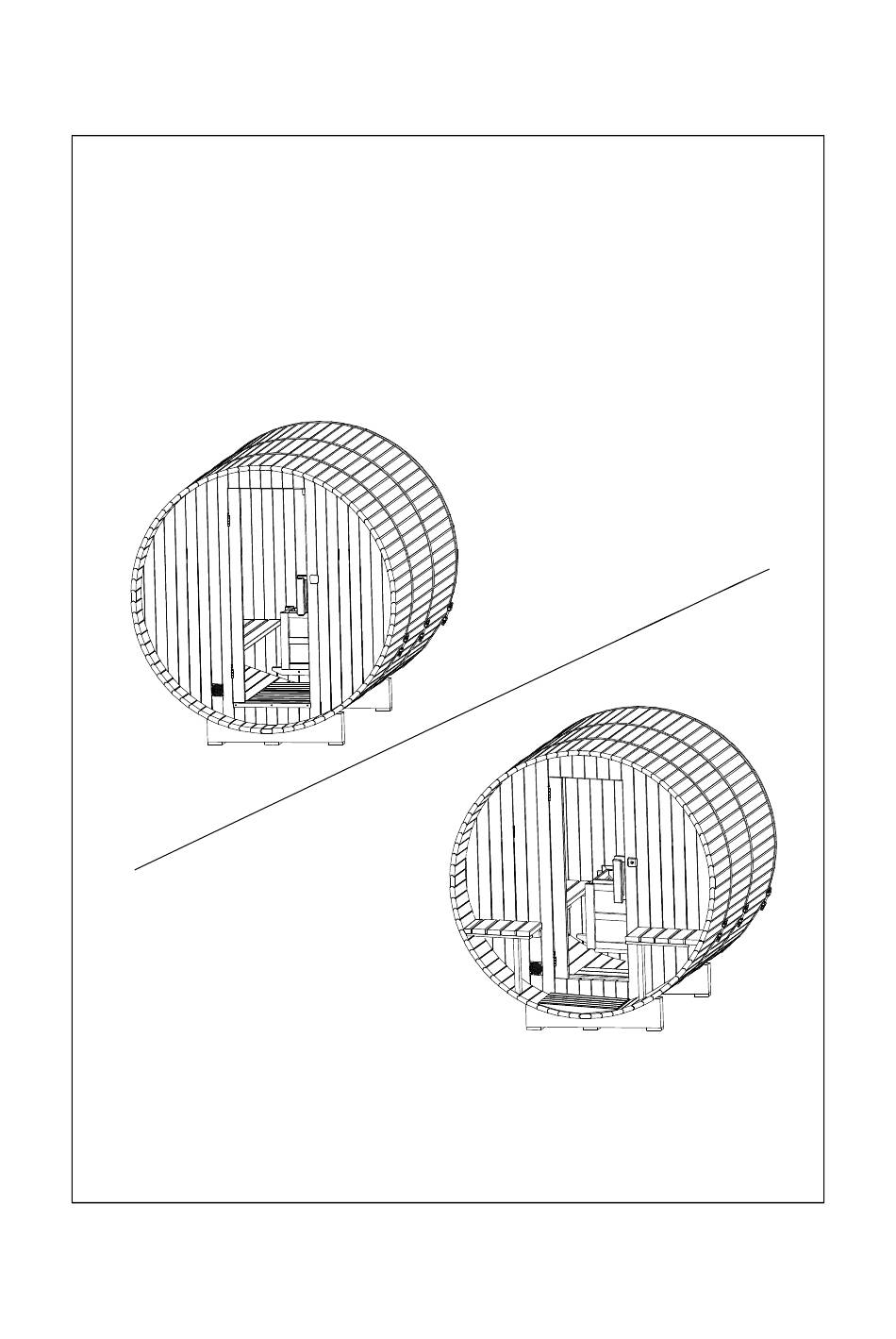

  • Page 1 ALEKO® Outdoor Barrel Sauna www.AlekoProducts.com B4/B5/B6/B8 Series without canopy B4C/B5C/B6C/B8C Series with canopy User s Manual...
  • Page 2 : Introduction Instructions before assembly At least two people are required to assemble the sauna. Assembly location: check whether the ground or platform is horizontal, and slight slope will not affect the assembly and use of sauna, but if the slope is evident, a pad is needed to keep the sauna level.
  • Page 3 Wooden Components of Sauna Name Name Quantity Quantity Backrest (Optional) Stave Heater fence Front Wall Sauna Heater (Optional) Outside bench 4.5~6KW Back Wall Outside Floor Base Bench Feet Floor Inside bench Sequences and Contents of Sauna Assembly 、 ………… ………… ………… ………… ………… ………… ……… Base Assembly 、...
  • Page 4 Tools : Ⅰ. Base Assembly Placement of base Place the base shown in the figure, and adjust it in horizon by pads (beneath the base). (2)Bottom stave assembly ① Take out the stave with drain hole and cable hole in the middle of the base, place other stave in the same level with this one, and fix the end to the base with screws.
  • Page 5 2. Front and Back Wall Assembly Assembly front and back wall as shown in Figure 4. ST5x50 ST5*30fastening stainless steel sheet The stave of front right The stave of The stave of wall ST5x50 front middle front left wall wall Front Wall Back Wall ((1)Insert back wall to the cross slots of the back wall on the base, and front wall to the...
  • Page 6 3. Top assembly Apply glass glue along the edge of front and back walls. Figure 6 A1 shows stave must be assembled before the glass glue dries. Assemble the rest staves with screw holes to both sides of sauna bottom up until to the half of front and back walls.
  • Page 7 4. Steel Strip Assembly Each steel strip consists of one long and one short steel strip. (2)Use the fat bolts and nuts to connect one of the end of the long belt and the short belt together . (Shown in Figure 8) +M12x180 Figure of steel strip Assemblying Figure 8...
  • Page 8 5. Bench Assembly Place bench straight on the bracket of front and back walls to make screw holes of the bench on the bracket of front and back wall, and fasten the benches by screws. (shown in Figure 9) Assembly supports as shown in Figure 9. Note: no need to assemble outside bench for the sauna series without canopy) ST5x40 Bench inside...
  • Page 9 6. Heater and Lamp Base Assembly (1)Install the heater against the back end between the benches at both sides, and it should be on the support bar at the bottom of the back end. (shown in Figure 10) (2)The lamp base should be assemblyed on the top bracket of back wall. (shown in Figure 10) Only qualified electricians are permitted for installing the electric wire of the heater and the lamp holder.
  • Page 10 9. Instructions before Use Instructions before use 1. A member of the high blood pressure, heart disease, high blood pressure do not sauna. 2. Who has a cold should not be sauna. because the sauna room hidden cryptococcus bacteria can enter human body through respiratory tract, such as easy to cause pneumonia, etc.
  • Page 11 10. Instructions Maintenance instructions ℃ ℃ Turn on sauna heater, setting desired temperature, normally 60 (in the area between bench surface and your head). Start with low temperature and increase it according to endurance of your body when you are in a sauna for the first time. Before the sauna, take off clothes, glasses, jewelries, cell phones and other belongings, and then take a simple shower or spa.
  • Page 12 Bitumen roof (Optional) Assembly instruction - 12-...
  • Page 13 Tools for assembly bitumen roof Prepare the following tools before assembly 1 . Tools you need to prepare Tape Power Drill × Glass Glue Gun× 1 Pencil ×1 × Screw positions and quantity of bitumen roofs Standard component 1000X330 Standard component 1/2 Standard component 1/3 Standard component 1/4 6 screws required...
  • Page 14 ( ) 3 The teeth of the second-layer tiles should be Assembled downwards, covering the first layer tiles and fasten them with screws. (shown in Figure 2) Figure 2 ( ) The teeth of the third-layer tiles should be downwards, and the teeth connect to form a hexagon.
  • Page 15 ( ) 6 Cover tiles on both sides with tiles in the top middle. Tiles on the top cover each other and are fastened with screws. (as shown in Figure 5) Figure 5 ( ) 7 Start to tightly Assembly decoration board symmetrically from vertical center line, apply glass glue first, then fasten with screws (as shown in Figure 6).
  • Page 16 12. RECOMMENDATIONS AND SUGGESTION FOR SAUNA (1)It is recommended to paint (wood wax, tung oil) on external wooden parts of sauna to prevent corrosion, crack and tarnish. Suggestions: after assembling sauna, wash interior twice a day for 2-3 days. It is suggested to lay a carpet before the door to prevent abrasion and dirt. Pay attention to maintenance, electricity and fire of sauna.
