Solid Signal Genie C41W Hands On

Wireless client
Hide thumbs Also See for Genie C41W:

Advertisement

Quick Links

Download this manual
Solid Signal goes...
HANDS ON
C41W Wireless Genie Client

Advertisement

loading
Need help?

Need help?

Do you have a question about the Genie C41W and is the answer not in the manual?

Questions and answers

Related Manuals for Solid Signal Genie C41W

Summary of Contents for Solid Signal Genie C41W

  • Page 1 Solid Signal goes... HANDS ON C41W Wireless Genie Client...
  • Page 2 DIRECTV and will make installations easier and give customers options for redecorating. This product is currently in pilot testing and will be available from Solid Signal soon. ©2013, SolidSignal.com Reproduction is permitted provided copyright information is intact.

  • Page 3: How It Works

    HOW IT WORKS The wireless Genie client can be used with either the DVRs, and HR34 HR44 Genie can be used in combination with other clients. You can use the Genie C31 and C41 DVR and up to 3 clients (wired or wireless) at any time. The wireless client does not depend on your wireless network at all.
  • Page 4 ©2013, SolidSignal.com Reproduction is permitted as long as copyright information is intact. GENIE SYSTEM WITH WIRELESS CLIENT TO DISH OR MULTISWITCH Use Solid Copper Core Wiring for lines from LNB and power inserter DC POWER PASS Wireless video bridge Stand-Alone SWM Module Only SWIM Power to HR44...
  • Page 5 H25 and C31 (H2510PIN) from Solid Signal DIRECTV 10PINCOMPOS 10 Pin to Composite Dongle for DIRECTV C31 (10PINCOMPOS) from Solid Signal) connect to older TVs. There’s an HDMI out, digital audio out, power in, and of course the always-useless USB port.

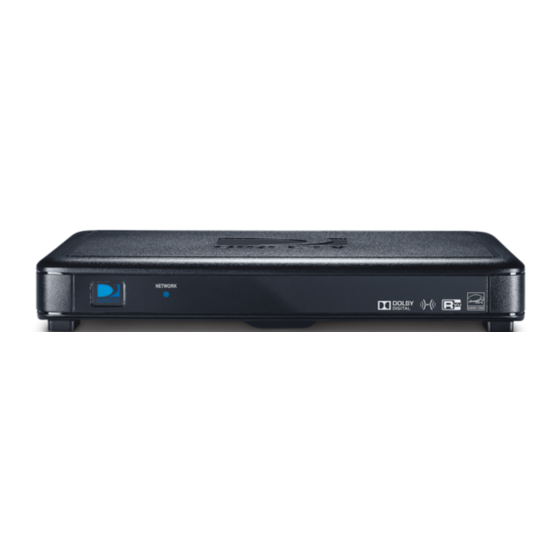

  • Page 6 IN DETAIL: THE C41W WIRELESS CLIENT On the front right of the client is an ever-growing list of endorsement logos, in this case for Dolby Digital, RF4CE (the remote control technology) RVU (the tech that makes clients possible) energy star. Another big improvement from the C31/C41 series is that there’s a center spine on the bottom with two keyhole slots.
  • Page 7 IN DETAIL: THE WIRELESS VIDEO BRIDGE wireless video bridge is about the size of an average router. The base can’t be removed in order to force you to keep vertical, which improves wireless range. only feature on the front is a blue light.
  • Page 8 EPS10 POWER SUPPLY & RC71 REMOTE Both the video bridge and the C41W use the EPS10 power supply. This is the same power supply that ships with H25s, C31s, C41s, and Broadband DECAs. DIRECTV standardized on this design because having an external power brick makes the power supply easier replace if it fails.

  • Page 9: First Time Installation

    FIRST TIME INSTALLATION Setting up the video bridge is easy. Connect it to a free coax line, and if needed disconnect the terminator cap and run a coax line to another receiver. (Otherwise keep the cap in place.) Connect it to the power adapter and plug it in. Withing a moment the light on the front should start flashing blue.

  • Page 10: What Can Go Wrong

    WHAT CAN GO WRONG? If the client pairs properly the network light on the front of the receiver will glow solid green. If it is flashing yellow or solid yellow, that means the connection is too weak to use. In a case like that it may not pair properly, or it may work very slowly. The best thing to do at that point is reposition the video bridge.
  • Page 11 SolidSignal.com is your source for DIRECTV equipment, supplies, and support. We have over 10 years’ experience in installing and supporting satellite equipment. Our technical staff is ready to answer all your questions! visit SOLIDSIGNAL.COM for the best selection of equipment and supplies for the high-end installer or do-it-yourselfer! FORUMS.SOLIDSIGNAL.COM...
