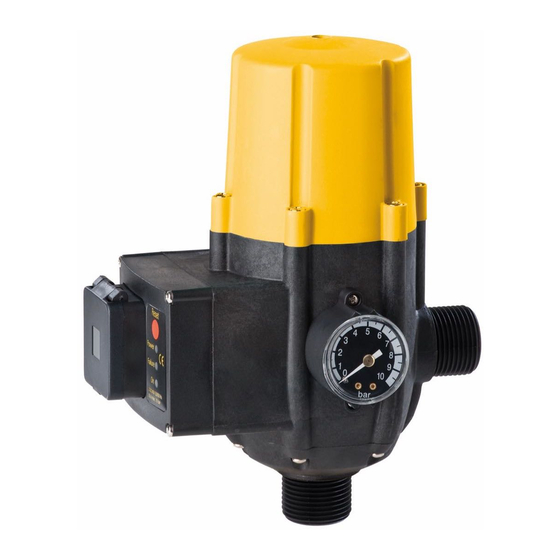

ZETA 02 pump controller
Ζ Ζ
WISY
Rainwater Harvesting
c t i o n s
WISY pump
controller
Advertisement
Related Manuals for Wisy ZETA 02
Summary of Contents for Wisy ZETA 02

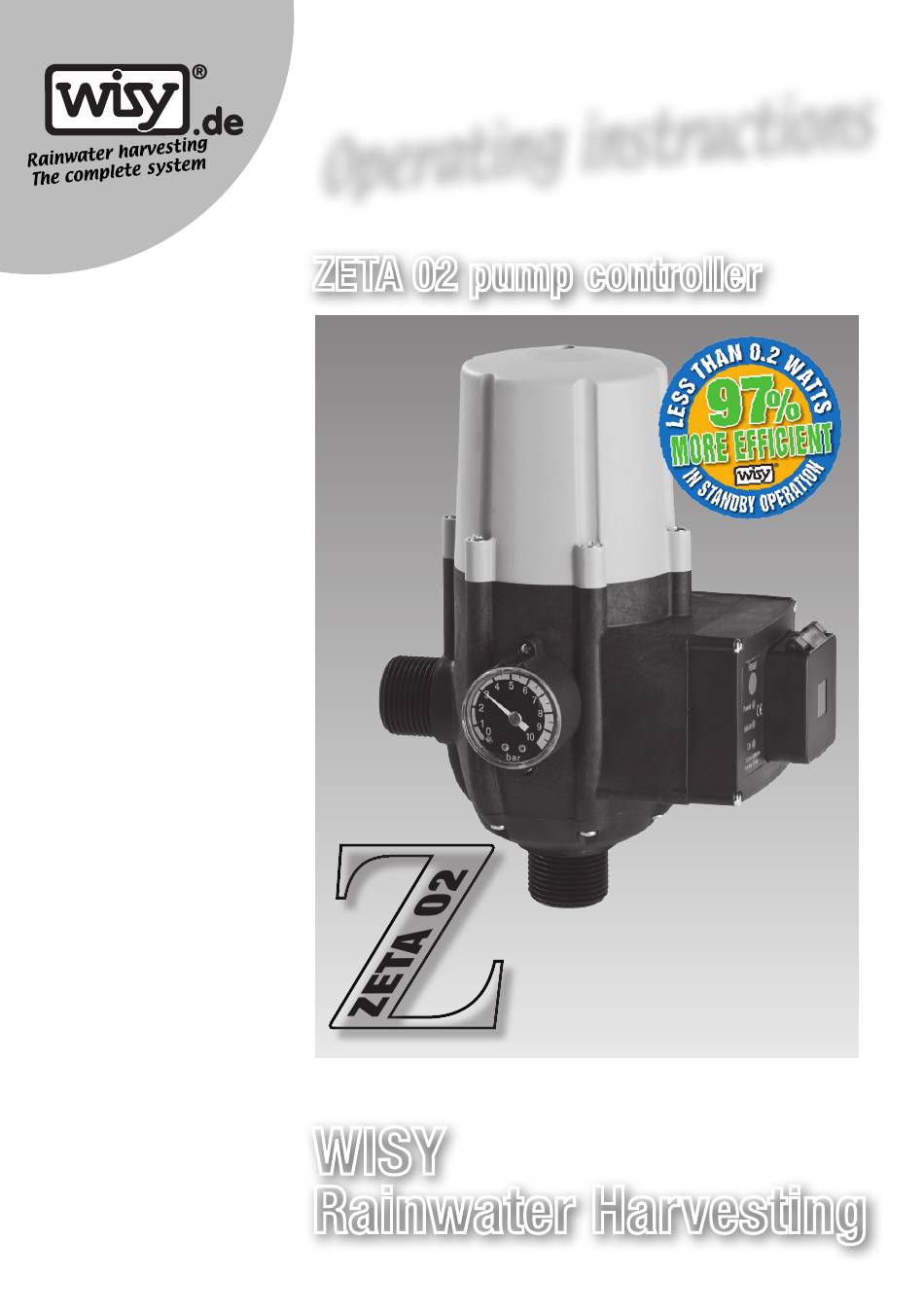

- Page 1 Operating instructions • Operating instructions • Operatin ructions • Operating instructions • Operating instructions Operating instructions • Operating instructions • Operatin ZETA 02 pump controller ructions • Operating instructions • Operating instructions ● Suitable for use Operating instructions • Operating instructions • Operatin...
- Page 2 Please read through these operating instructions carefully before you attempt to install and use the pump controller! Installation instructions and technical advice for WISY‘s highly efficient ZETA 02 and ZETA 02/V pump controllers (original) Contents These installation instructions include the following information relating to: ● Applications and proper use...
- Page 3 Please read through these operating instructions carefully and store them in a safe place for future reference. The ZETA 02 controller may be connected to a supply voltage of between 100 V and 240 V (50 Hz / 60 Hz).
- Page 4 ● An integral electric socket ● A 1.5 m long power cable with electric plug ● ZETA 02/V only: Adjusting screw for cut-in pressure (at top) and with the connections, indicators and switches listed below: ● Inlet with outside thread: 1“ (at bottom) ● Outlet with outside thread: 1“...
- Page 5 ● ZETA 02, cut-in pressure 1.5 bar, 2 x 1” outside thread (Item No. ZT 02 00) ● ZETA 02/V, cut-in pressure adjustable from 1.5 to 2.8 bar, 2 x 1” outside thread (Item No. ZT 02 10) ● ZETA 02/A with sealed 11/4” screw connection at bottom, for AspriPlus (Item No. ZT 02 50) ● ZETA 02/A/V with sealed 11/4”...
- Page 6 ZETA 02 Programming Note: The “Reset” button on the Zeta 02 serves two functions, if pressed for less than 1 sec. it will go into reset mode, pump starts running. If pressed for longer it will go into one of the programming modes below Programming Run-on-time.
- Page 7 To adjust the pressure, read the pressure indicated by the gauge at the moment the pump cuts in. After the pump has stopped, disconnect the ZETA 02/V controller from the power supply and open an outlet until the pressure gauge indicates 0 bar. To increase the cut-in pressure, turn the adjusting screw clockwise.
- Page 8 Maintenance, servicing When servicing needs to be carried out with the storage tank open, the ZETA 02 controller, the connected pump and all other electrical systems must be disconnected from the mains supply. The safety instructions contained in this document must be strictly observed! Inspections/tests at 6-monthly intervals: ● Inspect the ZETA system and water pipes/hoses for leaks...
- Page 9 LED the low water level; vent the (FAILURE) is illuminated. pump (and pumped rising main to ZETA 02 if submersible pump is connected) before recommission- ing the system (contact customer service if required). b) The pump is blocked.
- Page 10 Replacement of the product under guarantee will not extend the original period of the guarantee. WISY shall meet its guarantee obligations for the ZETA 02 pump controller if it can be demon- strated that the following conditions are fulfilled: Terms and conditions of the guarantee 1.
- Page 11 The ZETA 02 / ZETA 02/V pump controller complies with the requirements of the following EU Directives in its basic design, technology and construction: Directive 2004/108/EC dated December 15, 2004 relating to the electromagnetic compatibility of electronic equipment Directive 2006/95/EC dated December 12,...
- Page 12 D-63699 Kefenrod, Germany all our products, please visit: ructions • Operating instructions • Operating instructions Telephone (++49) 60 54 - 91 21-0 www.wisy.de Telefax (++49) 60 54 - 91 21-29 Operating instructions • Operating instructions • Operatin E-mail info@wisy.de...
