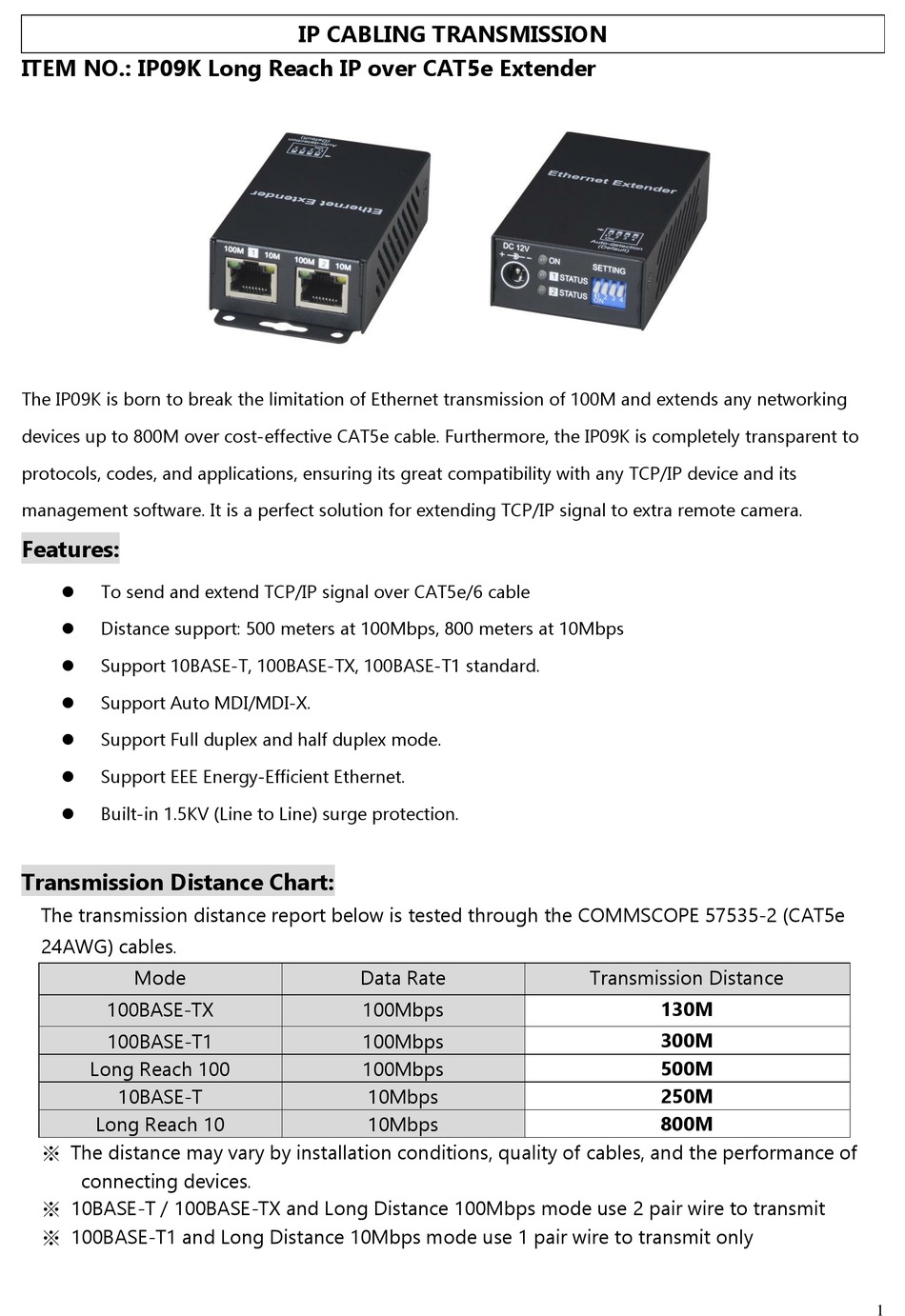

ITEM NO.: IP09K Long Reach IP over CAT5e Extender
The IP09K is born to break the limitation of Ethernet transmission of 100M and extends any networking
devices up to 800M over cost-effective CAT5e cable. Furthermore, the IP09K is completely transparent to
protocols, codes, and applications, ensuring its great compatibility with any TCP/IP device and its
management software. It is a perfect solution for extending TCP/IP signal to extra remote camera.
Features:
To send and extend TCP/IP signal over CAT5e/6 cable

Distance support: 500 meters at 100Mbps, 800 meters at 10Mbps

Support 10BASE-T, 100BASE-TX, 100BASE-T1 standard.

Support Auto MDI/MDI-X.

Support Full duplex and half duplex mode.

Support EEE Energy-Efficient Ethernet.

Built-in 1.5KV (Line to Line) surge protection.

Transmission Distance Chart:
The transmission distance report below is tested through the COMMSCOPE 57535-2 (CAT5e
24AWG) cables.
Mode
100BASE-TX
100BASE-T1
Long Reach 100
10BASE-T
Long Reach 10
※ The distance may vary by installation conditions, quality of cables, and the performance of
connecting devices.
※ 10BASE-T / 100BASE-TX and Long Distance 100Mbps mode use 2 pair wire to transmit
※ 100BASE-T1 and Long Distance 10Mbps mode use 1 pair wire to transmit only
IP CABLING TRANSMISSION
Data Rate
100Mbps
100Mbps
100Mbps
10Mbps
10Mbps
Transmission Distance
130M
300M
500M
250M
800M
