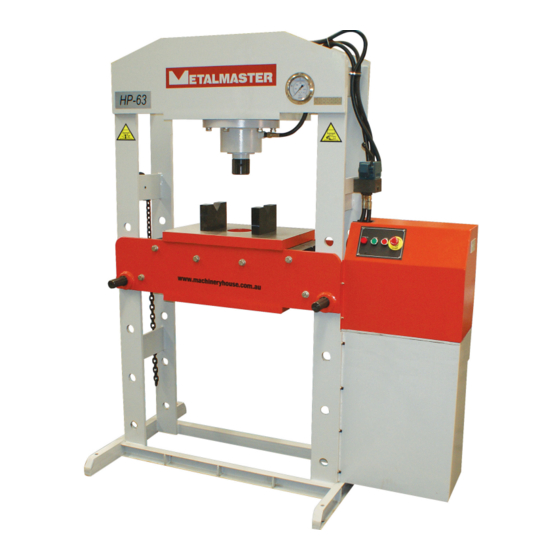

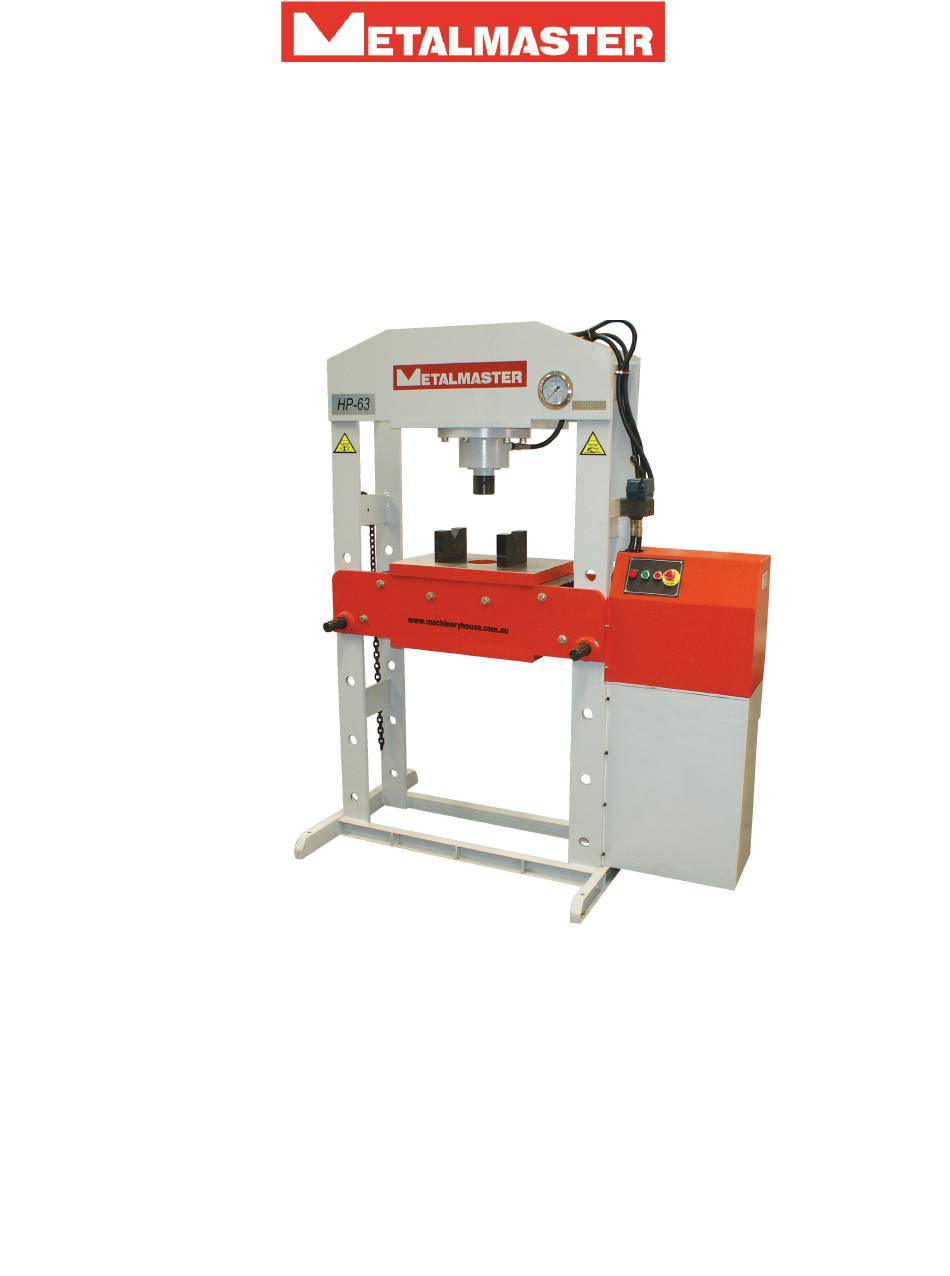

- Page 1 Electrohydraulic Press OPERATION MANUAL HP-63T, HP-100T, HP-150T HP-200T, HP-300T www.machineryhouse.com.au www.machineryhouse.co.nz...
- Page 2 Please read the OPERATING INSTRUCTION before using. INDEX 1. Performance characteristics and application 2. Technical parameters 3. Application 4. Checking & Filling Hydraulic Oil 4. Operation & Controls 5. Spindle Nose 6. Raising & Lowering the Beam 7. Sliding Head Type 8.
-
Page 3: Performance Characteristics
Electric Hydraulic Press 1 Performance characteristics and application Metalmaster Electric hydraulic press are a developed product based on the experi- ences found in the manufacture of press brakes and other hydraulic machines. They are formed with a frame, bench beam, bolt, table plates, high pressure hose, oil tanks, electrical boxes, and pumping stations, etc. - Page 4 Fig.1 1. Main frame 2. Table Plate 3. Bench Beam 4. Pins 5. Pump 6. Lifting Tool 7. Control box 8. High Pressure Hose 9. Cylinder www.machineryhouse.com.au www.machineryhouse.co.nz...
- Page 5 Application 1. Service Conditions: Do not exceeding indoor ambient temperature higher than +40 , or less than -10 Voltage 415V ± 10%, frequency 50Hz. 2. Service Scope: The machine is suitable for the machinery industry where processes such as a press-fit, or demoli- tion, correction and forming operations are required.
-
Page 6: Operations And Controls
Operations And Controls The operator should acquaint themselves with the use of the following controls: 1. Main isolating switch is situated on the back of the machine and must be turned “ON” 2. On/Off control panel contains the start and stop buttons and emergency stop. - Page 7 RAISING AND LOWERING THE BEAM The operator should acquaint themselves with the method of lowering and raising the beam before any attempt is made. 1. Loosen the spindle cap so that the chain retaining plate can be fitted be- tween the spindle and the spindle cap. 2.
- Page 8 SLIDING HEAD TYPE METALMASTER also supply a range of hydraulic presses with a Sliding Work Head. These presses allow for an expansion of many workshop applications. Once unlocked the head slides easily to the left and to the right. To move the head first unlock the two clamps on the head, one on the R/H side and one on the left.
-
Page 9: Troubleshooting
Specifications HP-63/HPM-63 HP-100T/HPM-100T HP-150T/HPM-150T HP-200T/HPM-200T HP-300T/HPM-300T Model Capacity 60 Tonne 100 Tonne 150 Tonne 200 Tonne 300 Tonne Piston Travel 325mm 363MM 390mm 420mm 380mm 895mm 1050mm 1100mm 1050mm 1200mm Between Posts Max Ram-Table 1000mm 1010mm 900mm 700mm 900mm Voltage 7.5Kw 7.5Kw 7.5Kw... -
Page 10: Care And Maintenance
CARE AND MAINTENANCE Before any maintenance is commenced switch the isolating switch to “OFF” If the power is sup- plied through a switch and plug if possible remove the plug from the power point Periodically check the joints and seals for leaks which could cause the machines performance to be restricted. - Page 11 General Machinery Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Read the entire Manual before starting 14. Use correct amperage extension cords. machinery. Machinery may cause serious injury if Undersized extension cords overheat and lose not correctly used.
-
Page 12: Test Report
TEST REPORT ......... Model Number ......... Serial Number ..../../....Date of Manufacturing q Electrics Electric Motor q Hydraulics Pump Hydraulics The product has been checked and is manufactured in accordance with the code of stan- dard for Hydraulic Presses Examiner: ............Date: ../..../....
