Summary of Contents for Cosmo C106SIX-PT

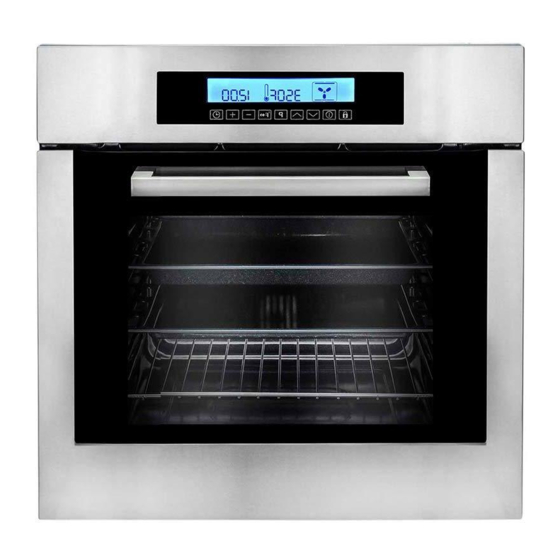

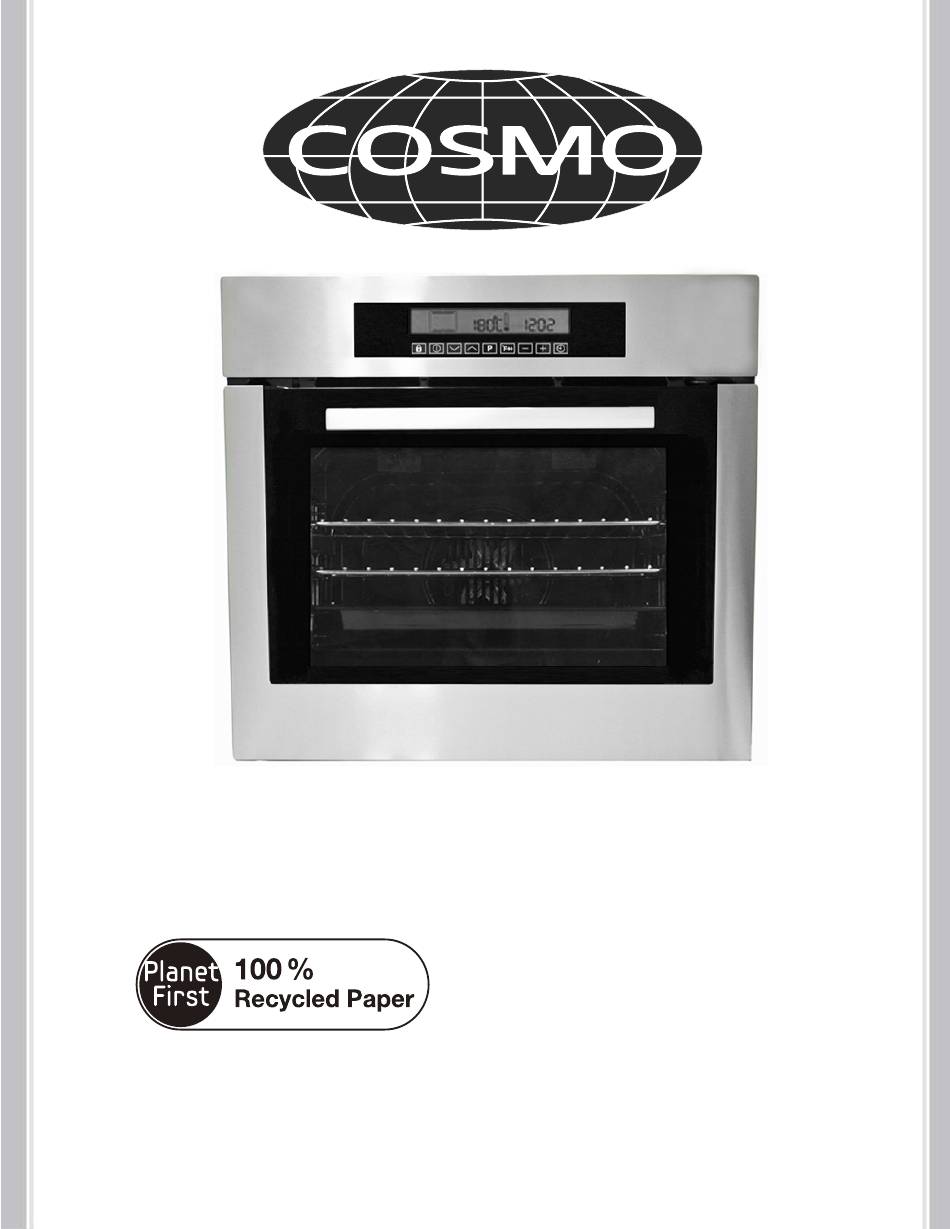

- Page 1 24" CONVECTION OVEN WITH 10 FUNCTIONS This manual is made with 100 % recycled paper. Electronic version of this manual is available at: www.cosmoappliances.com...
- Page 2 Thank You Thank you for your purchase. We know that you have many brands and products to choose from and we are honored to know that you have decided to take one of our products into your home and hope that you enjoy it.
-
Page 3: Table Of Contents
Contents Safety Requirements .......................... 3 Proper installation and maintenance ....................3 Fire safety ............................4 Burn prevention ..........................5 Child safety ............................. 6 Cleaning safety ..........................6 Cookware safety ..........................6 Electrical Requirements ........................7 Installation Instructions ........................8 Installation of built-in ovens ......................8 Electrical installation ........................ -
Page 4: Safety Requirements
Safety Requirements IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire and injury to persons. When using kitchen appliance, basic safety precautions must be followed, including those in the following pages. -
Page 5: Fire Safety
• In the event of an error the display flashes and beeps continuously. Disconnect appliance from the power supply and call a qualified technician. • Do not repair or replace any part of the appliance unless specifically recommended in the manual. -
Page 6: Burn Prevention
TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A GREASE FIRE, OBSERVE THE FOLLOWING： SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off oven EXERCISE CAUTION TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. -
Page 7: Child Safety
Child safety • Secure all loose garments, etc. before beginning. Tie long hair so that it does not hang loose, and do not wear loose fitting clothing or hanging garments, such as ties, scarves, jewelry, or dangling sleeves. • When children become old enough to use the appliance, it is the legal responsibility of the parents or legal guardians to ensure that they are instructed in safe operation of the appliance by qualified persons. -
Page 8: Electrical Requirements
Electrical Requirements Electrical Shock Hazard Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. • Severe shock, or damage to the range • Any additions, changes or conversions may occur if the range is not installed by a required in order for this appliance to qualified installer or electrician. -
Page 9: Installation Instructions
Installation Instructions Electrical Shock Hazard Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock Only a qualified person in compliance with the instructions provided must install the appliance. The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property. - Page 10 IMPORTANT: Installation must be in compliance with all local codes and regulations. In order to ensure adequate ventilation, provide a space of atleast 1.77" at the rear of the cabinet. Installing the oven so that it rests on two strips of wood is preferable. If the oven rests on a continuous, flat surface, there must be an cutout of at least 1 ¾”...
-
Page 11: Electrical Installation
Electrical installation Electrical Shock Hazard Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock Only a qualified person in compliance with the instructions provided must install the appliance. The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property. - Page 12 Three-Wire Connection · Connect red wire from oven to red wire in junction box. · Connect black wire from oven to black wire in junction box. · Connect green ground wire from oven to gray neutral wire in junction box. The conduit cable, where connected at the oven, swivels.
-
Page 13: How To Use Your Oven
How To Use Your Oven Close-up view Figure 5 A. Oven Ventilation B. Door Seal C. Convection Fan Housing D. Oven Door Before using your oven for the first time This multi-function oven combines the advantages of traditional convection ovens with those of the more modern fan assisted models in a single appliance. -
Page 14: Operating The Oven
IMPORTANT: Place the dripping pan provided (only available on certain models) on the bottom shelf of the oven to prevent any sauce and/or grease from dripping onto the bottom of the oven. For all other types of cooking, never use the bottom shelf and never place anything on the bottom of the oven when it is in operation because this could damage the enamel. -
Page 15: Clock / Timer Functions
If your cooking process requires it. Please preheat your oven first before following the steps below. Memory function The Memory function can be used to save a setting which is frequently used. 1. Set oven function,temperature and If necessary the clock functions Clock time and/or End time 2. -
Page 16: Other Functions
End time 1. Select oven function and using button select temperature. 2. press the Clock Functions button repeatedly until the symbol for End time flashes. 3. using the button set the desired switch-off time. The symbols for End time and Cook time light up. -
Page 17: Oven Functions
Oven functions Grill 2131W The top central heating elements come on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking the juices in to keep them tender. The grill is also highly recommended for dishes that require a high temperature on the surface like beef steaks, veal, rib steak, filets, hamburgers. - Page 18 “Fast cooking”Mode 1876W The top and bottom heating elements, as well as the fan ,will come on ,guaranteeing constant heat distributed uniformly throughout the oven. This mode is especially recommended for cooking prepacked food quickly(as pre-heating is not necessary),such as for example:frozen or pre-cooked food) as well as for a few “home-made”dishes.
-
Page 19: Practical Cooking Advice
“Top” Oven 746W The top heating elements comes on .This mode can be used to brown food at the end of cooking . Cooling ventilation In order to cool down the exterior of the appliance, this model is equipped with a cooling fan, which comes on automatically when the oven is hot. - Page 20 Using the grill This multi-function oven offers you 2 different grilling modes. Use the “grill” mode 1. Placing the food under the center of the grill (situated on the 3rd or 4th rack form the bottom) because only the central part of the top heating element is turned on. 2.
- Page 21 For best results place the grid on the lower racks (See “Practical Cooking Advice Table” on Page 21), then, to prevent fat and grease from dripping onto the bottom of the oven and smoke from forming, place a dripping-pan on the 1st oven rack from the bottom. Baking cakes ...
-
Page 22: Practical Cooking Advice Table
Practical cooking advice table Setting Food to be cooked Weight Cooking Preheating Cooking Temperature (in lbs ) rack time time position (Minutes) (Minutes) from bottom 1 Convection Duck 2.25 65-75 Roast veal or beef 2.25 70-75 Pork roast 2.25 70-80 Biscuits (short pastry) 15-20 Tarts... - Page 23 Practical cooking advice table Setting Food to be cooked Weight Cooking Preheating Cooking Temperature (in lbs ) rack time time position (Minutes) (Minutes) from bottom 8 Fast Frozen food Pizza 1.00 cooking Courgette and prawn pie 1.00 Country style spinach pie 1.00 30-35 Turnovers...
-
Page 24: How To Maintain Your Oven
NOTE: Cooking times are approximate and may vary according to personal taste. When cooking using the grill or fan assisted grill, the dripping pan must always be placed on the 1st oven rack from the bottom. How To Maintain Your Oven Electrical Shock Hazard Failure to follow these instructions can result in death, fire, or electrical shock. -
Page 25: Self Cleaning Feature
IMPORTANT: People, Birds and other animals may be extremely sensitive to the fumes given off during self-cleaning. Move them to another well ventilated room during self-cleaning. Automatic self-cleaning The oven is heated to approximately 480 .Any food residues from roasting ,grilling and baking are burnt to ash. You may choose from three cleaning levels. -
Page 26: How To Remove The Oven Door
How to remove the oven door For ease of installation, some oven doors may be removed to reduce the weight of the oven by 30 lbs (14kg) per door, before installing into the cabinet. When removing the door: Make sure oven is cool and power to the oven has been turned off before removing the door. Failure to do so could result in electrical shock or burns. -
Page 27: Replacing The Oven Lamp
Replacing the oven lamp Electrical Shock Hazard Failure to follow these instructions can result in death, fire, or electrical shock. 1. Disconnect the oven from the power 4. Replace the glass cover and supply by means of the omni-polar reconnect the oven to the mains power switch used to connect the appliance to supply. -
Page 28: Transport
Before moving your oven, or performing maintenance, disconnect it from the power supply. To avoid damage to the oven vent, use the transport method shown in Figure 12. Figure 12 Technical Specifications Model · C106SIX-PT Power Source · 240V /60Hz Volume (usable capacity) · 2 cu. ft. Output Power ·...
