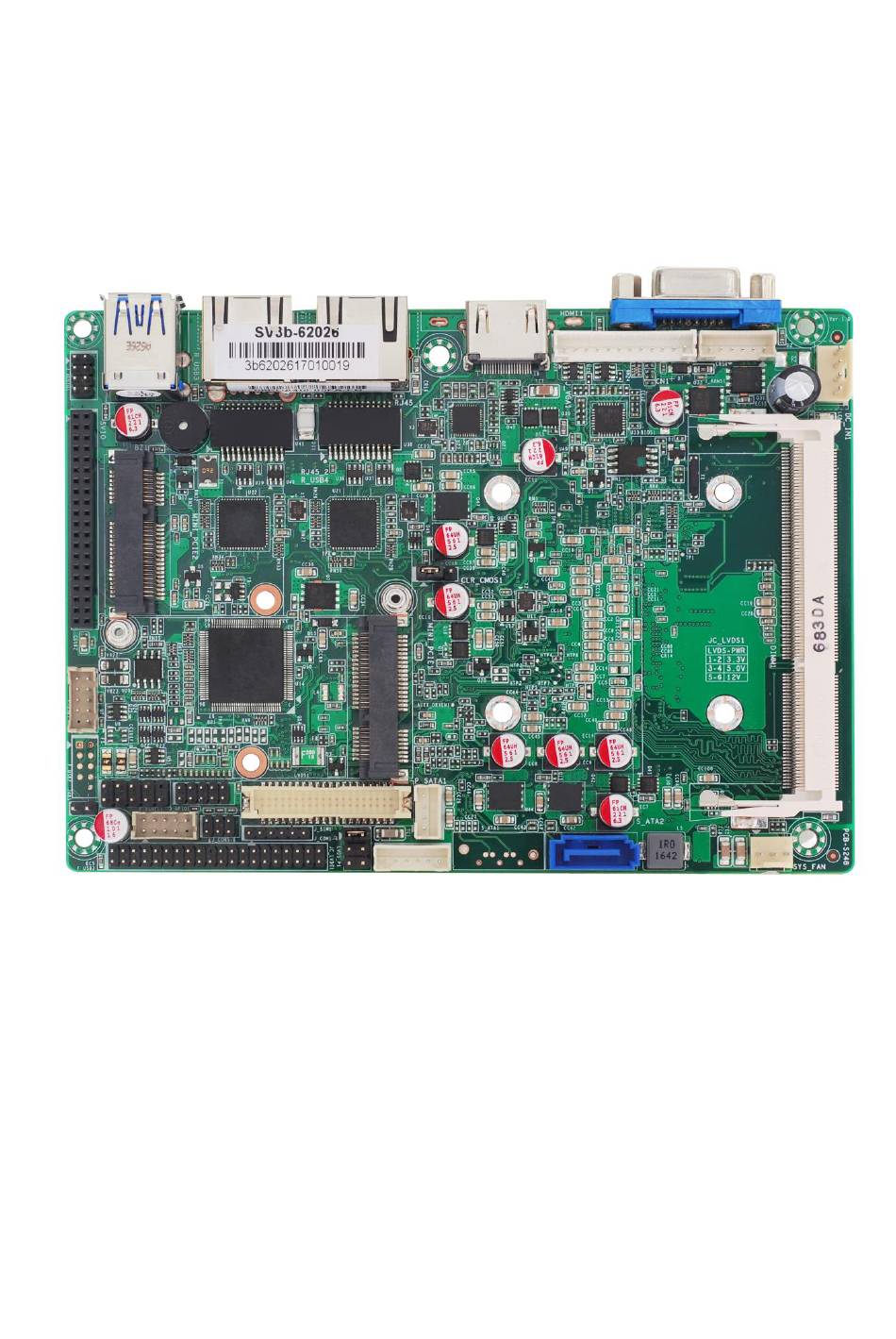

- Page 1 SV3b-62026 Series Motherboard User Guide Ver 1.0...
-
Page 2: Table Of Contents
Specification ............................3 Data Flow ............................4 Jumpers / Headers and Connectors ....................5 Definition of Jumpers / Headers and Connectors ................7 BIOS setup ............................12 - 1 - 深圳市信步科技有限公司 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com... -
Page 3: Models And Attentions
Usually, there is a thick line or a triangle near the header’s or jumper’s pin 1. Square pad, which you can find on the back of the motherboard, is usually used for pin 1. - 2 - 深圳市信步科技有限公司 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com... -
Page 4: Specification
[5]: Mini PCI-E1 slot supports WIFI and 3G by default. And if Mini PCI-E1 do not support 3G device, one more front USB header can be supplied (see page 7). - 3 - 深圳市信步科技有限公司 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com... -
Page 5: Data Flow
MINI-SATA USB3.0*2 Port Port COM6 COM5/6 USB2.0*2 RS485 Header Header Header COM1 Port USB2.0*2 (or HDMI) Header Super COM1~4 Header MINI-PCIE Port Header Header SVIO Header - 4 - 深圳市信步科技有限公司 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com... -
Page 6: Jumpers / Headers And Connectors
4. Jumpers / Headers and Connectors - 5 - 深圳市信步科技有限公司 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com... - Page 7 Jumpers / Headers and Connectors Front Audio Pin Header System Fan Connector Seavo IO Connector DC12V Power Input Connector Front USB Pin Headers PS/2 Pin Header RS485 Signal Pin Header VGA Pin Header Front Panel Pin Header Clear CMOS Jumper...
-
Page 8: Definition Of Jumpers / Headers And Connectors
5. Definition of Jumpers / Headers and Connectors [1] Front Audio Pin Header (4*2 Pin 2.0mm) Location Header Definition Definition LOUT_R MCIN_R J_AUDIO1 LOUT_L MCIN _L [2] Seavo IO Connector (20*2) Location Header Definition Definition + 5 V + 5 V USB0- USB2- USB0+ USB2+... - Page 9 PWR+ RESET# PWR- [6] Front USB3 Pin Header (5*2 Pin 2.00mm) Location Header Definition Definition + 5 V + 5 V USB5- USB6- F_USB3 USB5+ USB6+ - 8 - 深圳市信步科技有限公司 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com...
- Page 10 [9] COM1-4 Pin Headers (20*2 Pin 2.00mm) Location Header Definition Definition COM1_DCD COM1_RXD COM1_TXD COM1_DTR COM1_DSR COM1_RTS COM1_CTS J_COM1-4 COM1_RI COM2_DCD COM2_ RXD COM2_ TXD COM2_DTR COM2_DSR COM2_RTS COM2_CTS - 9 - 深圳市信步科技有限公司 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com...
- Page 11 Header Definition Definition UIM_PWR J_SIM1 UIM_DAT UIM_CLK UIM_RST UIM_VPP [11] eDP Connector (20*2 Pin 1.25mm) Location Header Definition Definition EDP_TX0_D- EDP_TX0_D+ EDP_TX1_D- EDP_TX1_D+ LVDS1 EDP_TX2_D- EDP_TX2_D+ - 10 - 深圳市信步科技有限公司 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com...
- Page 12 Location Connector Definition Definition + 12V P_SATA1 + 5V [15] System Fan Connector (3*1 Pin 2.54mm) Location Connector Definition Definition + 12V SYS_FAN FAN Speed Detection - 11 - 深圳市信步科技有限公司 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com...
-
Page 13: Bios Setup
Normal JC_LVDS1 Clear CMOS 6. BIOS setup See “SV3b-62026 BIOS Quick Start Guide” & “SV3b-62026 BIOS Specification Summary Sheet” for detail information of BIOS setup. 【End】 - 12 - 深圳市信步科技有限公司 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com...
