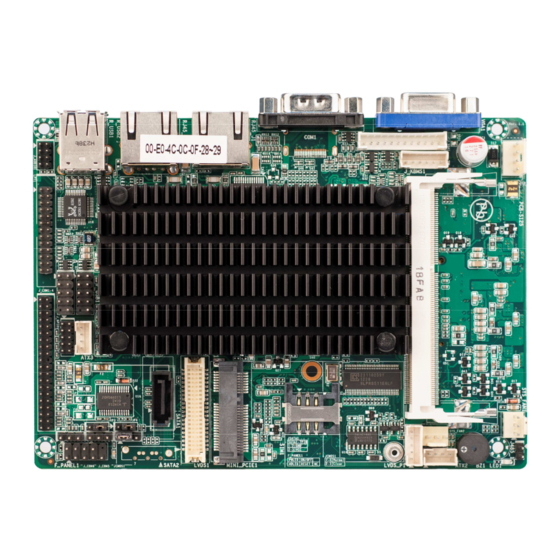

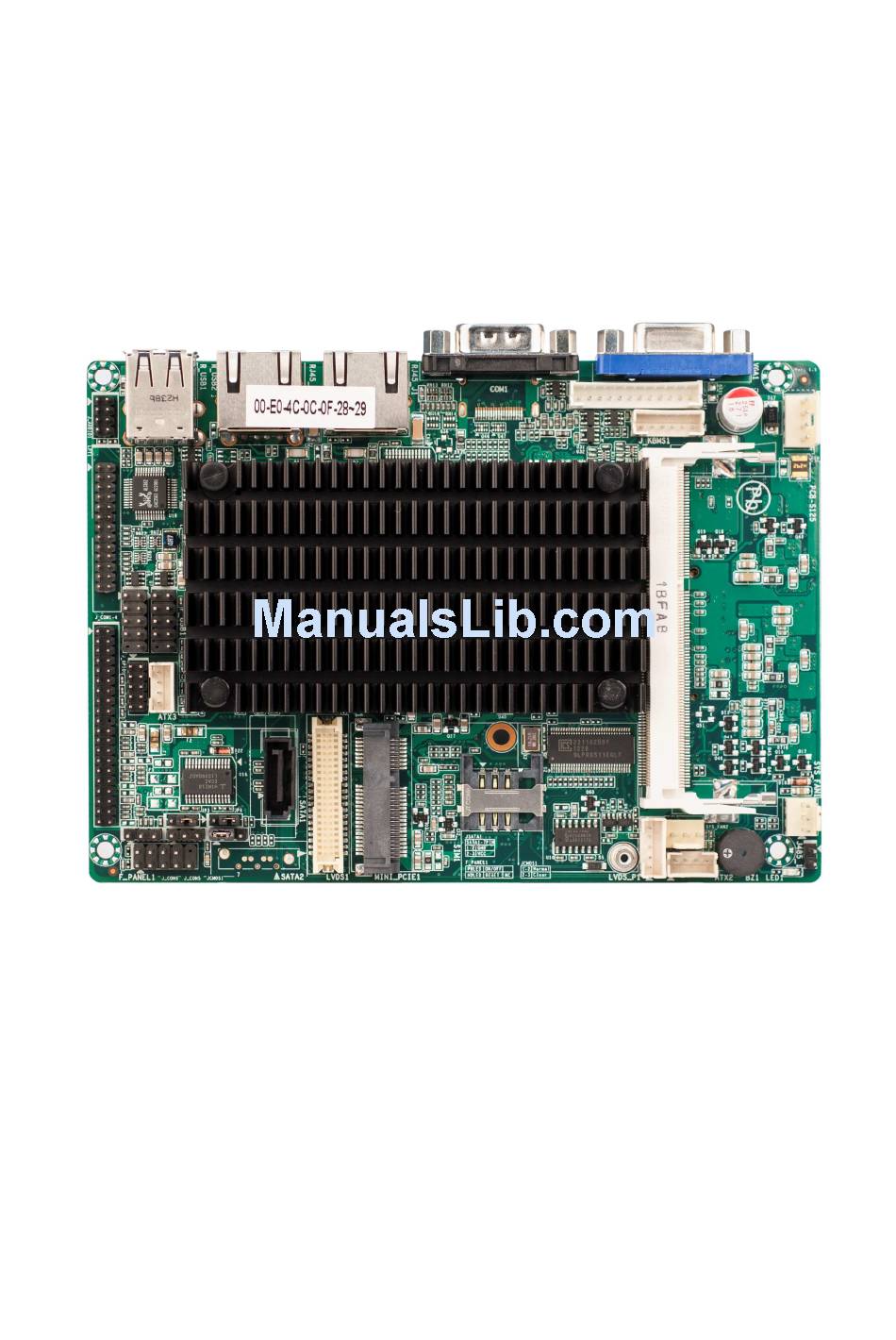

- Page 1 SV3-26026 Series Motherboard User Guide Ver 1.1...
-
Page 2: Table Of Contents
Specification ............................3 Data Flow ............................5 Jumpers / Headers and Connectors ....................6 Definition of Jumpers/ Headers and Connectors ................9 BIOS setup ............................16 - 1 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司... -
Page 3: Models And Attentions
Usually, there is a thick line or a triangle near the header’s or jumper’s pin 1. Square pad, which you can find on the back of the motherboard, is usually used for pin 1. - 2 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司... -
Page 4: Specification
[3]: There are 2 USB ports co-lays with LAN2, so single-LAN models can supply 4 rear USB ports; And if 3G device will not be used, one more front USB header can be supplied (see page 7). [4]: COM6 could be RS485 by setting jumpers. - 3 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司... - Page 5 [3]: There are 2 USB ports co-lays with LAN2, so single-LAN models can supply 4 rear USB ports; And if 3G device will not be used, one more front USB header can be supplied (see page 7). [4]: COM6 could be RS485 by setting jumpers. - 4 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司...
-
Page 6: Data Flow
USB 2.0 USB*2/3/4 Express Chipset 2/3/4 Headers USB*1 PS/2 KBMS Mini PCI-E1 PCI-E*1 or SATA*1 SIM Card Slot 6 Ports Audio Line out/ CODEC Super I/O - 5 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司... -
Page 7: Jumpers / Headers And Connectors
LVDS support a max resolution of 1366*768. [2]: One of the USB port of F_USB2 header (4 pins on the left side) will be invalid, if 3G devices are supported. - 6 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司... - Page 8 [1]: Mini PCI-E2 slot support mSATA devices (default), at the cost of invalidating SATA2. Notes: [1]: The COM connector (DB9) co-lays with an HDMI connector. [2]: This LAN connector co-lays with a USB connector. - 7 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司...
- Page 9 RS232 or RS485 Mode Selection VGA Connector Jumpers LVDS Header COM Connector LVDS Backlight Control Header LAN1 Connector VGA Header LAN2 Connector Front Panel Header USB Connectors Audio Header - 8 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司...
-
Page 10: Definition Of Jumpers/ Headers And Connectors
+ 5 V USBP7- F_USB2 USBP7+ Notes: [1]: Mini PCI-E1 slot support 3G devices (default), at the cost of invalidating one of the USB ports of F_USB2. - 9 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司... - Page 11 GPO7(0x50C Bit7) GPO33(0x538 Bit1) GPO36(0x538 Bit4) GPO39(0x538 Bit7) SATA Power Supply Connectors (4*1 Pin 2.00mm) Location Connector Definition Definition + 12V OUT ATX3 + 5V OUT - 10 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司...
- Page 12 [4]: COM1 header co-lays with the rear panel’s DB9 connector, so for the models with a DB9 connector on the rear panel, the definition of pin1-pin10 will be “N/C”. [7] COM5 Header（3*1 Pin 2.54mm） Location Header Definition Definition J_COM5 - 11 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司...
- Page 13 [10] RS232 or RS485 Mode Selection Jumpers（3*1 Pin 2.00mm） Location Jumper Settings Function J485_1 JP3, JP4 2-3(Default) J_COM6 Notes: [1]: Only one of the J485_1 and the J_COM6 can work at the same time. - 12 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司...
- Page 14 [1]: The VCC is 3.3V or 5V or 12V selectable, and the default voltage is 3.3V. [12] LVDS Backlight Control Connector（5*1 Pin 2.54mm） Location Connector Definition Definition + 12V LVDS_P1 LVDS_BKL_EN + 5V - 13 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司...
- Page 15 [15] Audio Header（4*2 Pin 2.00mm） Location Header Definition Definition LINEOUT_R MIC_R J_AUDIO1 LINEOUT_L MIC_L [16] CMOS Clear Jumper (3*1 Pin 2.54mm) Location Jumper Setting Function 1-2(Default) Normal JCMOS1 Clear CMOS - 14 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司...
- Page 16 + 5V MS_DATA [19] System Fan Connectors (3*1 Pin 2.54 mm) Location Connector Definition Definition + 12V SYS_FAN1 FAN Speed Detection + 12V SYS_FAN2 FAN Speed Detection - 15 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司...
-
Page 17: Bios Setup
6. BIOS setup See “SV3-26026 BIOS User Manual” for detail information of BIOS setup. 【End】 - 16 - 地址： 深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com 深圳市信步科技有限公司...
