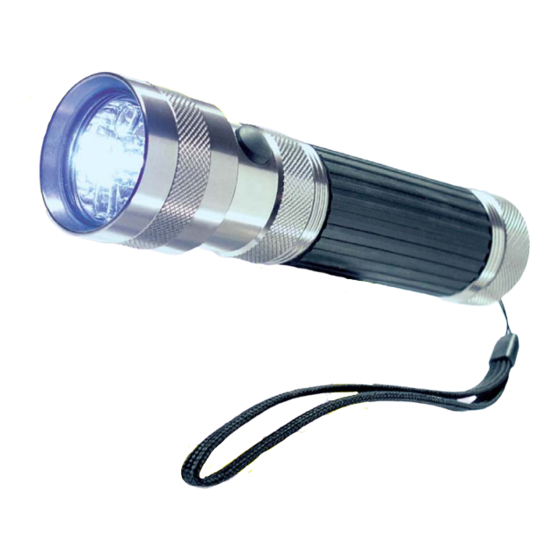

Summary of Contents for E.L.B. Ex-Geräte EEx-i Torch ELBLite 28

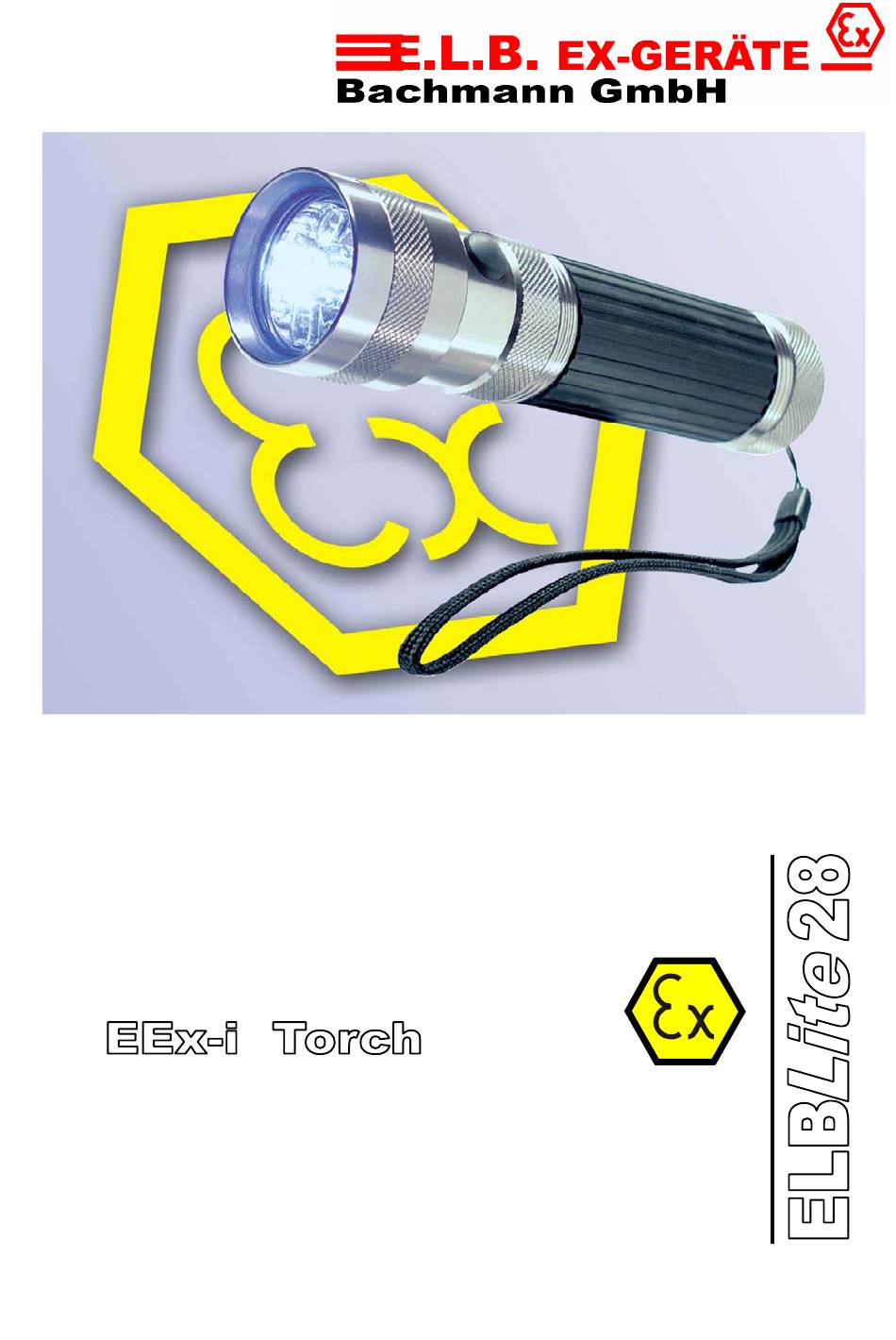

- Page 1 Technical Documentation ELBLite 28 01.02.2005...
-
Page 2: Table Of Contents
EEx-i Torch ELBLite 28 - Technical Documentation Instruction Manual ELBLite 28 Contents General Information Page Short Description..............2 Delivery Components............3 Exchanging Batteries............3 Switching On and Off............3 Cleaning................3 Technical Data Operating Data..............4 Safety advices..............4 Appendix Liability................. -
Page 3: Delivery Components
EEx-i Torch ELBLite 28 - Technical Documentation carrier bag (not allowed inside of the Ex area!) fixed lamps (28 white LEDs) 4 Alkaline cells type Duracell MN 1500 AA (Mignon) Exchanging the Battery Battery exchanging not allowed inside of the Ex area! -
Page 4: Safety Advices
EEx-i Torch ELBLite 28 - Technical Documentation ATEX certification: Typ: ELBLite 28 II 2 G EEx ia IIC T4 bzw. II 2 D T 81°C IP65 -30°C < T < +50°C TÜV 03 ATEX 2077 Battery type: Duracell MN 1500 AA Capacity: 2850 mAh Further type examined cells according to EN50020, §10.9:... -
Page 5: Liability
EEx-i Torch ELBLite 28 - Technical Documentation The technical data specified for the hazardous area comply with the values certified in the European EEx approval. The user bears the sole responsibility of examining the equipment with regard to its suitability for the intended application and environmental conditions. E.L.B. -
Page 6: Certificates
CERT Translation EC-TYPE EXAMINATION CERTIFICATE Equipment or protective system intended for use in potentially explosive atmospheres – Directive 94/9/EC EC-Type Examination Certificate Number TUV 03 ATEX 2077 Equipment: ELBLite 14 Manufacturer: ELB Ex-Gerate Bachmann GmbH Address: D64625 Bensheim, An der Hartbrucke 8 This equipment or protective system and any acceptable variation thereto are specified in the schedule to this certificate and the documents therein referred to. - Page 7 SCHEDULE (13) EC-TYPE EXAMINATION CERTIFICATE No TUV 03 ATEX 2077 (14) (15) Description of equipment The ELBLite 14 torch can be used in a potentially explosive atmosphere that requires category 2 or 3 equipment. The batteries must not be changed in the potentially explosive atmosphere. The permissible ambient temperature range is -30ºC to + 50ºC Electrical Data Power Supply...
