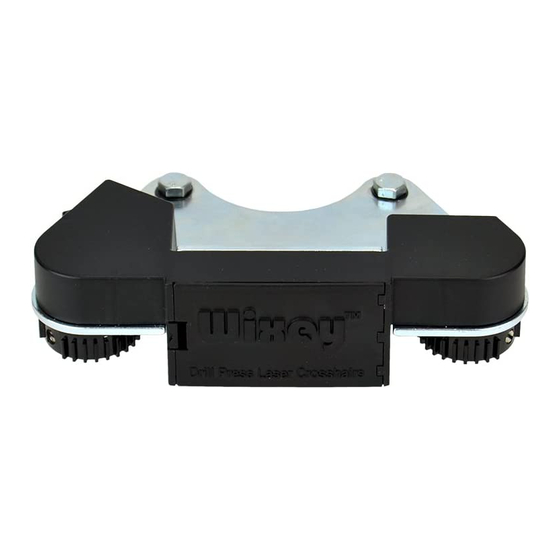

Wixey Drill Press Laser mounts quickly on any drill press. It has thin and precise easy
to adjust crosshairs.
Drill Press Laser Instruction
1. Install 2 AA batteries as shown
2. Attach the laser to the drill press column using the hose clamp (A)
3. Adjust the X-Y position of the lines using Knobs (B) and the Z position using
screws (C)
WL133 Drill Press Laser

Advertisement

loading
Need help?

Need help?

Do you have a question about the Wixey WL133 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rockler Wixey WL133

  • Page 1 WL133 Drill Press Laser Wixey Drill Press Laser mounts quickly on any drill press. It has thin and precise easy to adjust crosshairs. Drill Press Laser Instruction 1. Install 2 AA batteries as shown 2. Attach the laser to the drill press column using the hose clamp (A) 3.
  • Page 2 4. Take a scrap of wood with a flat edge and draw a vertical line (D) using a square. Place the wood with the flat edge down on the center of the table. 5. Adjust the Z position of both laser lines with a small flat bade screw driver using screws (C) so they are parallel to line (D).
  • Page 3 6. Lay the block of wood face down and hold it in position so it doesn't move. 7. Using a small drill bit secured properly in the chuck lower the quill to make a small indentation (E) in the wood. 8.

This manual is also suitable for:

64784
