AnyDATA ASP-500GA User Manual

Skylink pocket pc phone
Hide thumbs Also See for ASP-500GA:
Table of Contents

Advertisement

Quick Links

Download this manual
ASP-500GA User Manual
AnyDATA
1/161

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP-500GA and is the answer not in the manual?

Questions and answers

Related Manuals for AnyDATA ASP-500GA

Summary of Contents for AnyDATA ASP-500GA

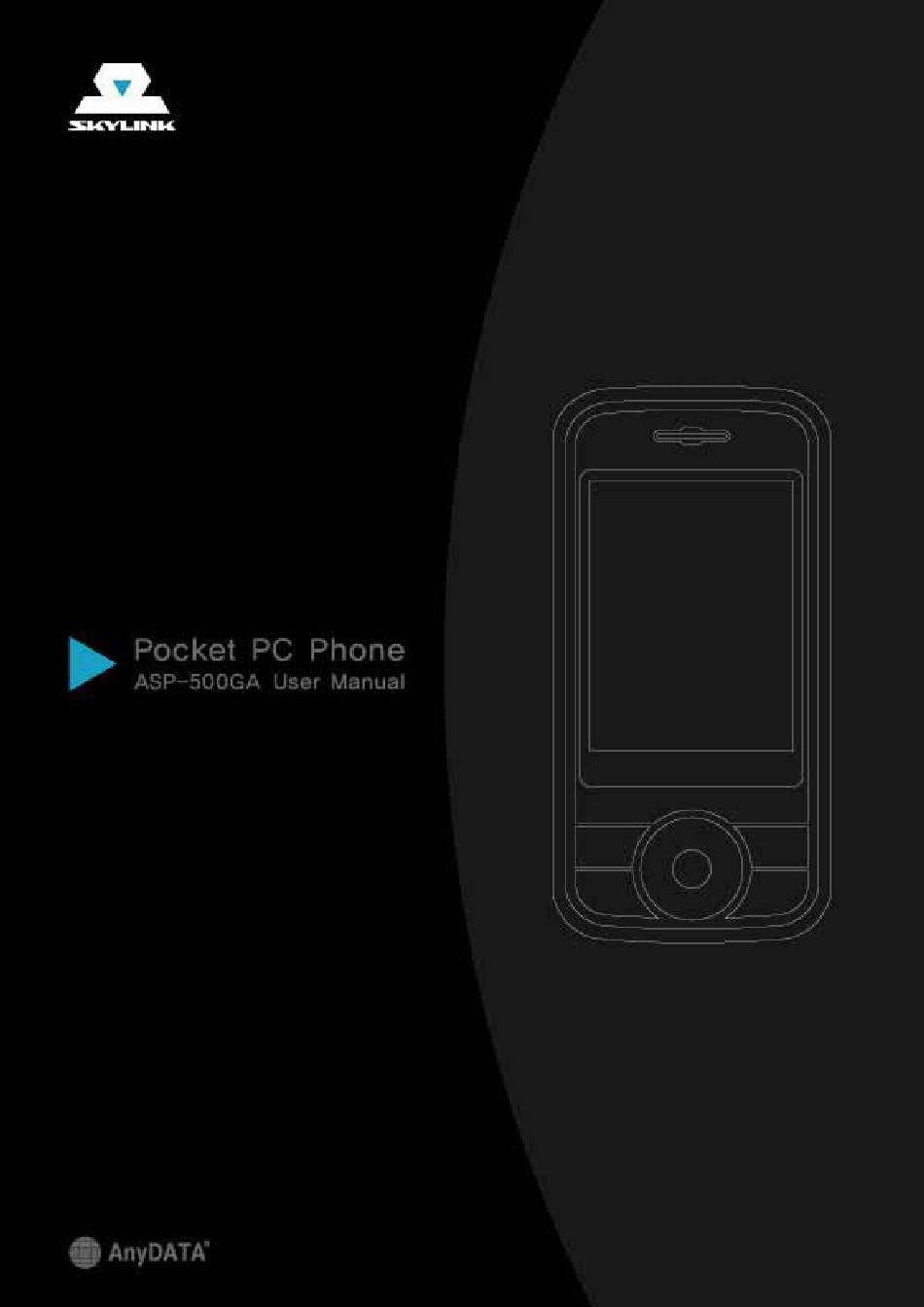

  • Page 1 ASP-500GA User Manual AnyDATA 1/161...
  • Page 2 The ASP-500GA reflects the thought "AnyTime AnyPlace AnyWireless Data Solution ", the goal to which AnyDATA.NET, INC (AnyDATA) moves forward. And it is intended to be used as a wireless communication device which you can easily use your important information in anywhere and at any time.
  • Page 3 ■ Built-In GPS Module 24 GPS (Global Positioning System) satellites orbit above the earth. ASP-500GA has the built- in GPS Module, which analyzes the signal beamed from those satellites and allows you to catch a user’s location or navigate to the desired destination. It has Sirf-III GPS Engine which is small and able to calculate the location information accurately.

  • Page 4: Table Of Contents

    Please Read Before Using This Pocket PC Phone Safety Precautions Handling and Care 1. Getting Started 1.1 Checking the Components…………………………………………………...26 1.2 Introduction to ASP-500GA…………………………………………………..28 1.3 About the Battery………………………………………………………………30 1.4 About the SIM/RUIM Card…………………………………………………….33 1.5 Mini SD Memory Card………………………………………………………….35 1.6 About LED Features……………………………………………………………36 1.7 Start Wizard……………………………………………………………………..39...
  • Page 5 ASP-500GA User Manual AnyDATA 3. Synchronizing Your Pocket PC and Setting Up E-mail Security 3.1 Installing ActiveSync………………………………………………………….77 3.2 Synchronizing Information…………………………………………………78 3.3 Synchronizing via Bluetooth………………………………………………..80 3.4 Synchronizing Music, Video, and Pictures……………………………….81 3.5 Setting Up E-mail Security…………………………………………………..82 4. Using Phone Features 4.1 Using the Phone……………………………………………………………….84 4.2 Making a Call……………………………………………………………………89...
  • Page 6 ASP-500GA User Manual AnyDATA 7. Experiencing Multimedia 7.1 Using Camera…………………………………………………………………140 7.2 Using Pictures & Videos…………………………………………………….143 7.3 Using Windows Media Player……………………………………………...147 8. Using Other Applications 8.1 Word Mobile……………………………………………………………………154 8.2 Excel Mobile……………………………………………………………………155 8.3 Viewing Slide Shows with PowerPoint Mobile………………………..…156 Appendix A.1 ASP-500GA Specification…………………………………………………...158 A.2 PC Requirement for running ActiveSync 4.x ………………...…………161...
  • Page 7 Since Pocket PC Phone belongs to communication device, each country may have their own laws and regulations regarding phone devices. Be sure to obey the appropriate laws and regulations. AnyDATA will not be liable for problems which are occurred due to a customer’s disobey.
  • Page 8 ASP-500GA User Manual AnyDATA Safety Precautions (Always Follow These Precautions) The signs below indicate the levels of danger or damage that may occur if the particular precautions are not observed. This sign indicates that incorrect handling has a high possibility of DANGER causing death or serious injury.

  • Page 9: General Precautions

    ■ Use only the products and accessories(battery, AC adapter, etc.) provided or approved from AnyDATA. ● Using the products and accessories which is not provided or approved from AnyDATA can cause fire, burn, electric shock or trouble on the device.
  • Page 10 ASP-500GA User Manual AnyDATA ■ Do not put the product or the battery in microwave ovens or other heating. ● Doing so could cause explosion of the internal parts of the device. ● Battery can be exploded and cause fire.

  • Page 11: Precautions For The Pocket Pc Phone

    ASP-500GA User Manual AnyDATA Precautions for the Pocket PC Phone WARNING ■ Turn off the product in places where use is prohibited such as airplanes or hospitals. ● Electronic and electronic medical appliances may be adversely affected. ● For use inside medical facilities, make sure that you comply with their regulations.
  • Page 12 ASP-500GA User Manual AnyDATA CAUTION ■ Electronic devices in some types of cars can be affected by use of the product. ● For safety's sake, do not use the product inside such cars. ■ Itching, rash or eczema may be caused depending on your physical conditions or predisposition.

  • Page 13: Precautions For The Battery

    AnyDATA Precautions for the Battery Check the battery type indicated on the battery label. The specification for the battery that AnyDATA provides is Lithium-ion battery with the capacity of 1700mAh. DANGER ■ If electrolyte from the battery gets in yours eyes, do not rub; instead, rinse immediately with copious amounts of clean water and seek medical attention.
  • Page 14 ASP-500GA User Manual AnyDATA CAUTION ■ Do not dispose of the battery with other regular household waste. ● Failure to properly dispose of the battery in an environmentally sensitive manner could cause the battery to catch fire and damage the environment.

  • Page 15: Precautions For The Ac Adapter

    ASP-500GA User Manual AnyDATA Precautions for the AC Adapter DANGER ■ Use the designated power source and correct voltage. ● Use of incorrect voltage could cause fire, injury, electric shock or equipment failure. ■ While charging the device, do not short-circuit AC adapter by touching it with wet hands or a metallic object.
  • Page 16 ASP-500GA User Manual AnyDATA CAUTION ■ Disconnect the power plug from the wall outlet before beginning any maintenance. ● Failure to do so could cause electric shock. ■ Disconnect the AC adapter from the wall outlet by pulling the adapter, not the adapter cord or the power cord.

  • Page 17: Precautions For The Sim/Ruim Card

    ASP-500GA User Manual AnyDATA Precautions for the SIM/RUIM card WARNING ■ Pay attention to keep electro-conductive foreign substances(metal pieces, pencil leads etc.) from getting into a gap between GSM socket and GSM card, or between CDMA socket and RUIM card.

  • Page 18: Notes On Using Near Electronic Medical Equipment

    ASP-500GA User Manual AnyDATA Notes on Using near Electronic Medical Equipment WARNING ■ Turn off the product in crowded trains or other public places where implanted cardiac pacemaker or defibrillator wearers could be nearby. ● Signals from the product may affect the operation of implanted cardiac pacemakers or defibrillators.
  • Page 19 ASP-500GA User Manual AnyDATA Handling and Care "Handling and Care" are explained in the following 5 sections. General Usage Guideline..............P 20 Usage Guideline for the Pocket PC Phone......... P 21 Usage Guideline for the Battery............P 22 Usage Guideline for the AC Adapter...........

  • Page 20: General Usage Guideline

    ● AnyDATA will not be liable for trouble which arose from user’s carelessness. ■ Be sure to keep a separate note of the information registered to the product and the SIM/RUIM card. ● AnyDATA will not be liable for a loss of the data that you recorded. 20/161...

  • Page 21: Usage Guideline For The Pocket Pc Phone

    ASP-500GA User Manual AnyDATA Usage Guideline for the Pocket PC Phone ■ Avoid using in extremely high or low temperatures. ● The product should be used within a temperature range from -20°C to 50°C and a humidity range from 0% to 90%.

  • Page 22: Usage Guideline For The Battery

    ASP-500GA User Manual AnyDATA Usage Guideline for the Battery ■ The battery will gradually wear out. ● Battery life depends on how you use the battery. It is time to replace it when the usage time is very short even though you fully charge it. The specified battery can be purchased separately.

  • Page 23: Usage Guideline For The Ac Adapter

    ASP-500GA User Manual AnyDATA Usage Guideline for the AC Adapter ■ Recharge the battery in a location where the ambient temperature is between 5°C to 35°C. ■ Do not recharge in the following location: ● Locations that are subject to high humidity, dust or excessive vibration ●...

  • Page 24: Usage Guideline For The Sim/Ruim Card

    ■ It is normal for the SIM/RUIM card to become warm during use. You can continue to use it even when it is warm. ■ Note that AnyDATA will not be liable for malfunctions incurred as the result of inserting and using a SIM/RUIM card with unrecommended IC card reader/writer.

  • Page 25: Getting Started

    ASP-500GA User Manual AnyDATA Chapter 1 Getting Started 1.1 Checking the Components 1.2 Introduction to ASP-500GA 1.3 About the Battery 1.4 About the SIM/RUIM Card 1.5 Mini SD Memory Card 1.6 About LED Features 1.7 Start Wizard 1.8 Power On/Off 1.9 Soft Reset and Hard Reset...
  • Page 26 ASP-500GA User Manual AnyDATA 1.1 Checking the Components Open the purchased product and check if items are included as shown below. ASP-500GA (Pocket PC Phone) Battery [2EA] USB Data Cable AC Adapter Stereo Headset Stylus Pen (Built-in) 26/161...
  • Page 27 ASP-500GA User Manual AnyDATA Holding Stick (for use as the Stylus) SD (Secure Digital) Card User Manual Quick User Guide [Note] The images above may be different from the product that you purchased. And, in some cases, some items may be changed.
  • Page 28 ASP-500GA User Manual AnyDATA 1.2 Introduction to ASP-500GA Charge LED This (bi-color) LED shows Red and Blue lights for indicating the battery charging status. For details, refer to "1.6 About LED Features". Receiver Listen to audio media or phone call.
  • Page 29 ASP-500GA User Manual AnyDATA Record Button Press to confirm your data entries, or to exit the program in use. POWER Button Press to turn off the display temporarily. This turns the device into Suspend mode. During suspend mode, you can still receive calls and messages.
  • Page 30 ASP-500GA User Manual AnyDATA 1.3 About the Battery Your device has a rechargeable lithium-ion battery. Only manufacturer-specified original batteries and accessories can be used on this device. Battery may perform differently depending on various factors, such as your wireless service provider’s network configuration, items putted on connecting ports, signal strength, the...
  • Page 31 To charge your device using USB data cable, you need to enable the USB Charging Mode by tapping Settings > System > AnyDATA settings > USB Charging. To charge your device using USB data cable, you can set HIGH or LOW mode according to the current capacity.
  • Page 32 ASP-500GA User Manual AnyDATA How to check the power 1. Tap “Start > Settings > System tab > Power”. 2. Battery Power information Screen appears. [Note] You can also view Battery Power information by tapping battery icon ( ) on the Today screen.
  • Page 33 ASP-500GA User Manual AnyDATA 1.4 About the SIM/RUIM Card You can set PIN codes (Personal Identification Number) for SIM/RUIM card. The PIN code is 4 to 8-digit security code to be entered every time the device is turned on for user verification to prevent any unauthorized use by others.
  • Page 34 ASP-500GA User Manual AnyDATA Inserting SIM/RUIM card To insert SIM/RUIM card into the device, follow the steps as below. 1. Remove the battery from the device. ☞ Refer to "Inserting and Removing the Battery". 2. On the device, insert SIM card into GSM socket, and insert RUIM card into CDMA socket.
  • Page 35 ASP-500GA User Manual AnyDATA 1.5 Mini SD Memory Card Mini SC (Secure Digital) memory card is a compatible storage card in where you can save and make a backup copy of the data that are used for the device. Inserting Mini SD memory card Pull out the slot cover on the right side of the device, and push Mini SD card into the device until it clicks.
  • Page 36 ASP-500GA User Manual AnyDATA 1.6 About LED Features The device has 4 LED parts, which consists of Charge LED, Idle LED, Keypad Backlight LED and Notification LED. Charge LED is a bi-color LED which shows Red and Blue Lights indicating the battery charging status.
  • Page 37 ASP-500GA User Manual AnyDATA 2. Idle LED (Green/Blue) ■ CDMA Mode State Operation Descriptions Power Down or The device is in power down state or suspend state. Suspend State Limited State Green Blinking Limited network service. 600ms on/600ms off • Network search in progress or No SIM card inserted or No PIN entered.
  • Page 38 ASP-500GA User Manual AnyDATA 3. Keypad Backlight LED (Blue and White) State Operation Descriptions Suspend State The device is in suspend state. Key Pressed Backlight ON When Key is pressed, LED is ON. After 5sec, LED is OFF automatically. [Note] The blue LEDs are turned on for the NAVIGATION Wheel and OK button when any key is pressed.

  • Page 39: Start Wizard

    ASP-500GA User Manual AnyDATA 1.7 Start Wizard When you provide the device with electric source or perform a hard reset for the first time, the initial Windows Mobile screen will appear. Follow the Start Wizard on LCD screen to set up the device.
  • Page 40 ASP-500GA User Manual AnyDATA 5. E-mail Set up Outlook e-mail and POP3/IMAP4 e-mail accounts. To skip this step, tap Skip to go to the 6th step. ☞ To set up, refer to Chapter 6. 6. Finish Press the screen softly using stylus, then the Today screen will appear.

  • Page 41: Power On/Off

    ASP-500GA User Manual AnyDATA 1.8 Power On/Off Power On The device will be turned on when you press the POWER button for 500ms or more. POWER button Power Off The following messages will appear when the device is powered on and pressing POWER button more than 5 seconds.

  • Page 42: Soft Reset And Hard Reset

    ASP-500GA User Manual AnyDATA 1.9 Soft Reset and Hard Reset In case that the device doesn’t perform properly or run slower than usual, you may need to perform a soft reset. A soft reset is needed after installing some programs. Once you performed a soft reset, any unsaved work will not be restored.
  • Page 43 ASP-500GA User Manual AnyDATA How to perform a hard reset 1. Pull off the built-in stylus from the bottom of the device. 2. Press the Left Soft KEY and the Right Soft KEY at the same time while pressing the Power button and then press the RESET button at the bottom right of the device by using the stylus.

  • Page 44: About The Today Screen

    ASP-500GA User Manual AnyDATA 1.10 About the Today Screen Once the Start Wizard is completed, the Today screen appears. The Today screen displays important information including present time, appointments and tasks. To access to the Today screen, tap Start > Today.
  • Page 45 ASP-500GA User Manual AnyDATA 8. Owner information Tap to set owner information. 9. Unread messages Tap to open the associated program. 10. Active tasks Tap to open the associated program. 11. Appointments Tap to open the associated program. 12. Device lock The icon changes to the status.
  • Page 46 ASP-500GA User Manual AnyDATA EVDO available EVDO connecting EVDO in use GPRS available GPRS connecting GPRS in use Roaming Connection is active Connection is not active Synchronization in progress Wi-Fi function enabled, but device not connected to a wireless network yet Wireless network(s) detected Connecting to wireless network (arrows moving);...

  • Page 47: About The Start Menu

    ASP-500GA User Manual AnyDATA 1.11 About the Start menu You can view the programs on the Start menu by tapping the Start menu icon. You can open a program by tapping the icon or the name of programs, and you can also change the display of the Start menu.
  • Page 48 ASP-500GA User Manual AnyDATA Allows you to make/receive calls, set up conference calling and Phone switch between the calls. Windows Media Allows you to play media files. Player Allows you to Help topics for a program on the device. Help Programs The following are the programs which have been already installed on your device.
  • Page 49 ASP-500GA User Manual AnyDATA Reminds you of your tasks. Tasks Allows you to log on a PC running Terminal Services or Remote Terminal Services Desktop, and use all of the programs available on that PC from Client your mobile device.
  • Page 50 ASP-500GA User Manual AnyDATA ■ System tab Icon Name Description Allows you to enter a device name. It provides information about About Windows Mobile version and copyright. You can set up for 4 tabs; USB to PC, USB charging, MIC AGC,...
  • Page 51 ASP-500GA User Manual AnyDATA ■ Connections tab Icon Name Description Bluetooth Enables Bluetooth and sets the device to visible mode. You can also scan for other Bluetooth devices. Allows you to select modem connections, RUIM account (CDMA Data Call Account only) and Authentication Mode.

  • Page 52: Entering Text And Managing Your Pocket Pc

    ASP-500GA User Manual AnyDATA Chapter 2 Entering Text and Managing Your Pocket PC 2.1 Entering Text 2.2 Personalizing Your Pocket PC 2.3 Adding and Removing Programs 2.4 Managing Memory 2.5 Backing Up Data 2.6 Searching Information 2.7 Protecting Your Pocket PC...
  • Page 53 ASP-500GA User Manual AnyDATA 2.1 Entering Text About Input Panel The Input Panel icon appears on menu when the program in use requires you to input text or numbers. 1. On-screen Keyboard 2. Input Panel Icon 3. Input Selector Arrow...
  • Page 54 ASP-500GA User Manual AnyDATA Adjusting Input Options How to adjust input options 1. Tap the Input Selector Arrow (▲) located next to the Input Panel icon. 2. Customize the Input Method, Word Completion and Options on each tab. [Note] You can also customize input options from the menu in the Input Selector arrow.
  • Page 55 ASP-500GA User Manual AnyDATA Entering Text using on-screen Keyboard In case that you enter the text, the on-screen Keyboard appears. Tap keys on the keyboard to enter text. How to enlarge the on-screen Keyboard 1. Tap the Input Selector arrow, then tap Options.
  • Page 56 ASP-500GA User Manual AnyDATA 2.2 Personalizing Your Pocket PC Customize the Today screen You can customize the Today screen which shows appointments, tasks and messages. How to customize the Today screen 1. Tap Start > Settings > Personal tab > Today.
  • Page 57 ASP-500GA User Manual AnyDATA 1. Tap Start > Settings > Personal tab > Today. 2. Select the Use this picture as the background check box. 3. Tap Browse to view a list of your picture files. 3. Tap the file name you want to use and tap ok.
  • Page 58 ASP-500GA User Manual AnyDATA How to set options for displaying appointments on the Today screen If you have a large number of appointments, you may want to specify the kind of appointments that are displayed on the Today screen. 1. Tap Start > Settings > Personal tab > Today.
  • Page 59 ASP-500GA User Manual AnyDATA How to set options for displaying tasks on the Today screen You can specify the kind of tasks that are displayed on the Today screen. 1. Tap Start > Settings > Personal tab > Today. 2. Tap the Items tab.
  • Page 60 ASP-500GA User Manual AnyDATA Customize the Start menu You can customize the list of items in the Start menu. You can select up to seven items. To customize the Start menu, do the following: 1. Tap Start > Settings > Personal tab > Menus.
  • Page 61 ASP-500GA User Manual AnyDATA How to choose the ring tone To choose the ring tone to be used for incoming calls, do the following: 1. Tap Start > Settings > Personal tab > Phone > Phone tab or tap Menu > Options > Phone tab on the Phone screen.
  • Page 62 ASP-500GA User Manual AnyDATA How to see the information about operating system version 1. Tap Start > Settings > System tab > About. 2. On top of the About screen, you can see the version of the operating system on your device as well as the type of processor and memory information.
  • Page 63 ASP-500GA User Manual AnyDATA How to set the backlight to dim after a time delay 1. Tap Start > Settings > System tab > Backlight. 2. Tap the Battery power tab, or the External power tab. 3. Adjust the time delay after selecting the Turn off backlight if device is not used for check box.
  • Page 64 ASP-500GA User Manual AnyDATA How to set the time and date for a different location 1. Tap Start > Settings > System tab > Clock & Alarms > Time tab. 2. Tap Visiting. 3. Select the time zone, time and date.
  • Page 65 GPS data simultaneously. If you clear this check box, some programs may not be able to obtain GPS data. It is recommended that you select the check box for Manage GPS automatically. [Note] AnyDATA does not provide GPS or Navigation-related program. 65/161...
  • Page 66 ASP-500GA User Manual AnyDATA How to change regional settings You can change the numbers, currency, dates, and times according to the region. 1. Tap Start > Settings > System tab > Regional Settings. 2. Select your region from the list.
  • Page 67 ASP-500GA User Manual AnyDATA 2.3 Adding and Removing Programs In case of purchasing additional programs for the device, you can get help from the information about the model name, Windows Mobile software version and the processor type. After you purchased programs, run a Setup program on the PC and add programs by using ActiveSync or directly from the Internet.

  • Page 68: Managing Memory

    ASP-500GA User Manual AnyDATA 2.4 Managing Memory When you need to adjust the memory temporarily because the program memory is low, tap Start > Settings > System tab > Memory. On the Main tab, you can find how much memory is available.
  • Page 69 ASP-500GA User Manual AnyDATA To free up program memory, do the following: • Close programs you are not currently using. • Move e-mail attachments to a storage card. • Move files to a storage card. Tap Start > Programs > File Explorer. Tap and hold the file, and tap Cut.

  • Page 70: Backing Up Data

    ASP-500GA User Manual AnyDATA 2.5 Backing Up Data You can copy files to and from your PC using ActiveSync, or copy files to a storage card you insert into your device. Your device has an expansion slot for inserting a Mini SD card.
  • Page 71 ASP-500GA User Manual AnyDATA How to automatically save files on a storage card It may be helpful to save new documents and notes on a storage card in the programs like the Word Mobile, Excel Mobile, and Notes programs. 1. From the program file list, tap Menu > Options.

  • Page 72: Searching Information

    ASP-500GA User Manual AnyDATA 2.6 Searching Information You can search for files and other items in the device by using file name or words exist in the item. You can search in My Documents folder or on an installed storage card. You can search in e-mail messages, notes, appointments, contacts, and tasks, as well as in online Help.

  • Page 73: Protecting Your Pocket Pc

    ASP-500GA User Manual AnyDATA 2.7 Protecting Your Pocket PC There are two ways that you can protect the device. • Assign a PIN (personal identification number) to protect your SIM/RUIM card from unauthorized use. You can change the default PIN number supplied from Internet Service Provider.
  • Page 74 ASP-500GA User Manual AnyDATA [Note] When the network mode icon at the bottom of the Today screen appears as , enter the PIN of RUIM. When the network mode icon at the bottom of the Today screen appears as , enter the PIN of SIM.
  • Page 75 ASP-500GA User Manual AnyDATA How to change your password 1. Tap Start > Settings > Personal tab > Lock. 2. Enter new password in the Password box. 3. On the Hint tab, you can enter a hint to remember the password, which will be displayed after the wrong password is entered four times.

  • Page 76: Synchronizing Your Pocket Pc And Setting Up E-Mail Security

    ASP-500GA User Manual AnyDATA Chapter 3 Synchronizing Your Pocket PC and Setting Up E-mail Security 3.1 Installing ActiveSync 3.2 Synchronizing Information 3.3 Synchronizing via Bluetooth 3.4 Synchronizing Music, Video, and Pictures 3.5 Setting Up E-mail Security 76/161...
  • Page 77 ASP-500GA User Manual AnyDATA 3.1 Installing Active Sync With ActiveSync, you can synchronize information on the device with information on PC. ActiveSync can also synchronize over a wireless or cellular network with Microsoft Exchange Server, if your company or service provider is running Microsoft Exchange Server with Exchange ActiveSync.
  • Page 78 ASP-500GA User Manual AnyDATA 3.2 Synchronizing Information While the device is connected to the PC with a USB data cable connection or Bluetooth connection, ActiveSync immediately synchronize. ActiveSync synchronizes every time you make a change on either the PC or your device while connected.
  • Page 79 ASP-500GA User Manual AnyDATA How to change which information is synchronized By default, a limited amount of information can be synchronized via ActiveSync to save storage space on the device. To change the amount of information that is synchronized, do the following steps.
  • Page 80 ASP-500GA User Manual AnyDATA 3.3 Synchronizing via Bluetooth You can connect your device to a PC to synchronize using the local wireless technologies, such as Bluetooth. How to synchronize with a PC via Bluetooth 1. To configure Bluetooth on computer to support ActiveSync, follow the instructions in ActiveSync Help on the PC.
  • Page 81 ASP-500GA User Manual AnyDATA 3.4 Synchronizing Music, Video, and Pictures ActiveSync works with Windows Media Player to synchronize music, video, and pictures with the device in order for you to carry digital media along with you while you travel. All media synchronization settings must be set in Windows Media Player, except the Media information type in ActiveSync to be synchronized.
  • Page 82 ASP-500GA User Manual AnyDATA 3.5 Setting Up E-mail Security Windows Mobile on your device allows you to protect your Outlook e-mails through Secure/Multipurpose Internet Mail Extension (S/MIME). You can digitally sign and encrypt your messages. To prove your identity to the recipients, you can use authorization keys and certificates.

  • Page 83: Using Phone Features

    ASP-500GA User Manual AnyDATA Chapter 4 Using Phone Features 4.1 Using the Phone 4.2 Making a Call 4.3 Receiving a Call 4.4 Incoming-call Options 4. 5 Additional Dialing Information 83/161...
  • Page 84 ASP-500GA User Manual AnyDATA 4.1 Using the Phone You can make, receive, and keep track of calls and send SMS messages with the device. You can dial by using Contacts. You can also copy phonebook from SIM card to Contacts on the device.
  • Page 85 ASP-500GA User Manual AnyDATA Turn the phone function on and off In many countries, you are required by law to turn off your phone while on board an aircraft. To turn off the phone function, do one of the following: •...
  • Page 86 ASP-500GA User Manual AnyDATA Adjust the device volume 1. Tap the Speaker icon ( 2. Under Volume, do the following: • Move the slider to adjust the phone volume ( ) or device volume ( • You can change the system volume settings by tapping On, Vibrate, or Off.
  • Page 87 ASP-500GA User Manual AnyDATA Phone services Phone services, such as Call Barring, Call ID, Call Forwarding, Voice Mail, and Text Message and Fixed Dialing enable you to choose how to handle all incoming calls on the device. How to choose the services 1.
  • Page 88 ASP-500GA User Manual AnyDATA Networks You can change the network settings and determine the order in which the device chooses to connect to another network, either manually or automatically, when the current one is unavailable. The device shows the network offered by your service provider as a default.

  • Page 89: Making A Call

    ASP-500GA User Manual AnyDATA 4.2 Making a Call You can use Phone, Contacts, Speed Dial and Call History on the Phone screen. Make a call from Phone 1. Tap Start > Phone. 2. On the Phone screen, tap the desired phone number, and tap Talk.
  • Page 90 ASP-500GA User Manual AnyDATA Make a call from Contacts Tap Start > Contacts, and do one of the following: • Select a contact, and press the TALK button. • Tap the desired contact in the contacts list, and tap the phone number that you want to call.

  • Page 91: Receiving A Call

    ASP-500GA User Manual AnyDATA 4.3 Receiving a Call You can choose to either answer or ignore the incoming call when you receive a phone call. How to answer or reject an incoming call • To answer the call, tap Answer, or press the TALK button on the device.

  • Page 92: Incoming-Call Options

    ASP-500GA User Manual AnyDATA 4.4 Incoming-call Options You can choose to either reject or accept another incoming call during a call. You can switch between the two parties or set up a conference call between all three parties. How to put a call on hold 1.

  • Page 93: Additional Dialing Information

    ASP-500GA User Manual AnyDATA 4.5 Additional Dialing Information How to make an emergency call Enter the international emergency number for your region, and tap Talk. [Note] Additional emergency numbers will be supplied by service provider for CDMA network, and for GSM network, it will be supplied in your SIM card. Contact your service provider for details.

  • Page 94: Getting Connected

    ASP-500GA User Manual AnyDATA Chapter 5 Getting Connected 5.1 Connecting to the Internet 5.2 Internet Explorer Mobile 5.3 Using Wireless Manager 5.4 Using Bluetooth 5.5 Using Wi-Fi 5.6 Using Internet Sharing 5.7 Using Terminal Services Client 5.8 AnyDATA Settings 94/161...
  • Page 95 ASP-500GA User Manual AnyDATA 5.1 Connecting to the Internet You can connect to the Internet through Wi-Fi or the mobile phone network (GPRS or EVDO network). It takes no cost to connect through a private or free wireless network. However, the battery will be drained faster when you use Wi-Fi.
  • Page 96 ASP-500GA User Manual AnyDATA 2. Under My ISP, tap Add a new modem connection. 3. Enter a name for the connection on the Make New Connection screen. 4. Select Cellular Line (GPRS, CDMA) in the Select a modem list and tap Next.
  • Page 97 ASP-500GA User Manual AnyDATA 5. Enter the Access point name and tap Next. [Note] Access Point Name varies depending on the service provider. When using GSM(GPRS) network, you need to use an Access Point Name provided from your mobile phone service provider.
  • Page 98 ASP-500GA User Manual AnyDATA 6. If required, enter the user name and password and tap Finish. [Note] Tap the help icon ( ) to view help information for any screen. Tap Manage existing connections on the Connections screen and complete the connection wizard to modify connection settings.
  • Page 99 ASP-500GA User Manual AnyDATA How to set RUIM Account to the Internet through the CDMA network You can also set the user name and password from Data Call Account (RUIM Account - CDMA only) as below. 1. Tap Start > Connections tab > Data Call Account.
  • Page 100 ASP-500GA User Manual AnyDATA How to set up a connection to a private network 1. You need to obtain Server phone number, User name, Password, Domain and other settings, such as IP address, if required, from your network administrator: 2. Tap Start > Settings > Connections tab > Connections.
  • Page 101 ASP-500GA User Manual AnyDATA 5.2 Internet Explorer Mobile You can browse Internet by using Internet Explorer Mobile. To start the Internet Explorer, Tap Start > Internet Explorer. How to set a Home page 1. Enter the Web page address in the address bar on top of the screen and tap to open the Web page.
  • Page 102 ASP-500GA User Manual AnyDATA How to change Web pages layout 1. Tap Menu > View in Internet Explorer Mobile. 2. You can select one of the following options: • One Column : Allows you to view the content as wide as the screen.
  • Page 103 ASP-500GA User Manual AnyDATA 5.3 Using Wireless Manager The Wireless Manager lets you enable or disable phone features as well as manage your data connections easily. How to use the Wireless Manager 1. Tap the Wireless Manager icon ( ) on the Today screen.

  • Page 104: Using Bluetooth

    ASP-500GA User Manual AnyDATA 5.4 Using Bluetooth You can exchange information with Bluetooth enabled device. Devices with Bluetooth capabilities can even beam information to a device in a different room if it is within the Bluetooth signal coverage range. You can use the internal Bluetooth functions as following: •...
  • Page 105 ASP-500GA User Manual AnyDATA Bluetooth partnerships For a secure exchanging, a Bluetooth partnership between your device and another Bluetooth- enabled device is needed. By entering the same Bluetooth passcode on both devices, you can set a partnership. And once a partnership is created, the devices don’t require you to enter a passcode again.
  • Page 106 ASP-500GA User Manual AnyDATA How to delete a Bluetooth partnership 1. Tap Start > Settings > Connections tab > Bluetooth. 2. On the Devices tab, tap and hold the partnership and tap Delete. Connect a Bluetooth hands-free or stereo headset You can have hands-free phone conversations with a Bluetooth hands-free headset such as a car kit.
  • Page 107 ASP-500GA User Manual AnyDATA 7. Tap Finish. 107/161...
  • Page 108 ASP-500GA User Manual AnyDATA Beam information with Bluetooth With Bluetooth, you can beam information, such as contacts, calendar items and tasks, from the device to PC or to another Bluetooth-enabled device. [Note] You need to connect a Bluetooth adapter or dongle on PC in case that the computer has no built-in Bluetooth capability.
  • Page 109 ASP-500GA User Manual AnyDATA How to receive a Bluetooth beam You need to set the device to detect incoming Bluetooth beams. 1. Tap Start > Settings > Connections tab > Beam. 2. Select the Receive all incoming beams check box.
  • Page 110 ASP-500GA User Manual AnyDATA Then enter the same passcode and tap Next. g. To exit the wizard, click Finish on the computer. h. To change the name for the computer, tap Finish on the device’s Partnership Settings screen. 3. Then, tap Start > Programs > Internet Sharing to open the Internet Sharing program on your device.

  • Page 111: Using Wi-Fi

    ASP-500GA User Manual AnyDATA 5.5 Using Wi-Fi You can use Wi-Fi which provides wireless Internet access by accessing to a wireless access point. In public places, such as a coffee shop or restaurant, the device needs to access to their public wireless access Points.
  • Page 112 ASP-500GA User Manual AnyDATA 4. Select The Internet if the wireless LAN connects your device to the Internet. Otherwise, select Work if the wireless LAN connects your device to a private network. 5. Enter a network key if required and tap Connect.
  • Page 113 ASP-500GA User Manual AnyDATA How to check the Wi-Fi status There are two way to check the current wireless connection status on the device. • Title bar The Wi-Fi ON icon ( ) will appear on the title bar when you enable Wi-Fi on your device.
  • Page 114 ASP-500GA User Manual AnyDATA Setting up Wi-Fi Channel for your country The frequency bands and operation channel of Wi-Fi differs from country. It should be configured appropriately. How to set Wi-Fi Channel Settings 1. Tap Start > Settings > Connections tab.

  • Page 115: Using Internet Sharing

    ASP-500GA User Manual AnyDATA 5.6 Using Internet Sharing With Internet Sharing, you can connect your PC or notebook computer to the Internet by using your device’s data connection (GPRS or EVDO, for instance). You can connect via USB or Bluetooth. To set up the device as a USB modem, follow the procedure in this section. Refer to “Use the device as a Bluetooth modem”...

  • Page 116: Using Terminal Services Client

    ASP-500GA User Manual AnyDATA 5.7 Using Terminal Services Client The Terminal Services Client allows you to log on to a PC running Terminal Services or Remote Desktop, and use all the resources available on that PC. For example, instead of running Word Mobile on your device, you can run the PC version of Word and access the .doc files available on that PC.

  • Page 117: Anydata Settings

    You can configure 4 tabs; USB to PC, USB charging, MIC AGC, and Wakeup Key. 1. Tap Start > Settings > System tab > AnyDATA Settings. 2. Adjust settings according to your use for each four tabs; USB to PC, USB charging, MIC AGC, and Wakeup Key.
  • Page 118 ASP-500GA User Manual AnyDATA USB Charging tab • To charge your device using USB data cable, you need to enable the USB charging mode in advance. • To charge your device through USB port, you need to check the Current Capacity. If the USB port of your computer does not support high current, select the [LOW] to protect your computer.
  • Page 119 ASP-500GA User Manual AnyDATA Microphone AGC (Automatic Gain Control) tab • When using voice recording, you can control the Microphone AGC. • If your voice is too quite, it will adjust it up, and vice-versa, to create an even level.
  • Page 120 ASP-500GA User Manual AnyDATA Wakeup Key tab • Set up the key to wakeup the device when the device is in suspend mode. • If Wakeup when power key is pressed is checked, the device will be waked up only by pressing the POWER button.

  • Page 121: Exchanging Messages And Using Outlook

    ASP-500GA User Manual AnyDATA Chapter 6 Exchanging Messages and Using Outlook 6.1 E-mail and Text Messages 6.2 Calendar 6.3 Contacts 6.4 Tasks 6.5 Notes 121/161...
  • Page 122 ASP-500GA User Manual AnyDATA 6.1 E-mail and Text Messages You can make use of all of your e-mail accounts and your text message account at Messaging. You can send and receive Outlook e-mail, Internet e-mail through an Internet service provider (ISP), as well as SMS (Short Messaging Service) text messages using your mobile phone network.
  • Page 123 ASP-500GA User Manual AnyDATA Whenever you want to manually send or receive Outlook e-mail on the device, just connect the device to computer, LAN, or over-the-air connection, then tap Sync on the ActiveSync screen or tap Menu > Send/ Receive in Outlook on your device.
  • Page 124 ASP-500GA User Manual AnyDATA Incoming mail server Enter the name of your e-mail server (POP3 or IMAP4). Outgoing mail server Enter the name of your outgoing e-mail server (SMTP). Domain Not required for an account with an ISP but may be required for a work account.
  • Page 125 ASP-500GA User Manual AnyDATA Send and receive messages How to compose and send a message 1. In the message list, tap Menu > Go To and select an account. 2. Tap New. 3. Enter the e-mail address or mobile phone number of one or more recipients, separating them with a semicolon.
  • Page 126 ASP-500GA User Manual AnyDATA How to exclude your e-mail address when replying to all When you reply to all the recipients of an e-mail, your own e-mail address will also be added to the recipient list. Customize ActiveSync in order that your e-mail address is excluded from the recipient list.
  • Page 127 ASP-500GA User Manual AnyDATA Download messages Your type of account affects the manner in which you download messages: • First, you need to begin synchronization via ActiveSync to send and receive e-mail for an Outlook e-mail account. To get more information, refer to “Set up Outlook e-mail” in Chapter 6.
  • Page 128 ASP-500GA User Manual AnyDATA Copy text messages from and to the SIM/RUIM card 1. Tap Start > Messaging. 2. Tap Menu > Go To > Text Messages. 3. Select the desired text message in the message list. 4. Do one of the following: •...
  • Page 129 ASP-500GA User Manual AnyDATA Verify the digital signature on a signed message you receive 1. Open the Outlook e-mail message that has been digitally signed. 2. At the top of the message, tap View Signature Status. 3. Tap Menu > Check Certificate.

  • Page 130: Calendar

    ASP-500GA User Manual AnyDATA 6.2 Calendar You can schedule appointments, such as meetings and other events by using Calendar. Your appointments for the day can be displayed on the Today screen. If you use Outlook on PC, you can synchronize appointments between your device and PC. You can also set reminder of appointments.
  • Page 131 ASP-500GA User Manual AnyDATA How to set a default reminder for all new appointments You can set a reminder automatically to turn on for all new appointments. 1. Tap Start > Calendar. 2. Tap Menu > Options > Appointments tab.

  • Page 132: Contacts

    ASP-500GA User Manual AnyDATA 6.3 Contacts Contacts contains the e-mail addresses, home addresses, anniversaries and more of your people and businesses. It lets you quickly communicate with those people. You can add a picture or assign a ring tone to a contact. Tap a contact in the list for a summary of contact information to call or send a message.
  • Page 133 ASP-500GA User Manual AnyDATA • Tap and hold the contact to see a list of available actions for a contact. • Tap Menu > View By > Company to see a list of contacts of a specific company, then select the company name.

  • Page 134: Tasks

    ASP-500GA User Manual AnyDATA 6.4 Tasks You can use Tasks to remind yourself of things you need to do. You can let a task occur once or repeatedly, set reminders and organize them with category. Tasks which are overdue are displayed in red.
  • Page 135 ASP-500GA User Manual AnyDATA How to show start and due dates in the task list 1. Tap Start > Programs > Tasks. 2. Tap Menu > Options. 3. Select the Show start and due dates check box. 4. Tap ok.

  • Page 136: Notes

    ASP-500GA User Manual AnyDATA 6.5 Notes Notes help you to quickly capture thoughts, questions, reminders, to-do lists, and meeting notes. You can create handwritten and typed notes, record voice notes, convert handwritten notes to text for easy readability, and send notes to others.
  • Page 137 ASP-500GA User Manual AnyDATA How to draw in a note 1. Tap Start > Programs > Notes. 2. Tap New in the note list. 3. With the stylus, draw on the screen. 4. Once you make a drawing, a selection box appears around your drawing.
  • Page 138 ASP-500GA User Manual AnyDATA Record a voice note You can create a stand-alone recording (voice note) or add a recording to a note. How to create a voice note 1. Tap Start > Programs > Notes. 2. You can do one of the following: •...

  • Page 139: Experiencing Multimedia

    ASP-500GA User Manual AnyDATA Chapter 7 Experiencing Multimedia 7.1 Using Camera 7.2 Using Pictures & Videos 7.3 Using Windows Media Player 139/161...
  • Page 140 ASP-500GA User Manual AnyDATA 7.1 Using Camera ASP-500GA has the built-in 2.0 mega pixel CMOS camera. With this camera, you can take high resolution pictures and video clips. [Note] It is recommended that you choose a still object for target.
  • Page 141 ASP-500GA User Manual AnyDATA Still Modes When you use Still modes, such as Normal, Burst and Timer, you can capture still image(s) by pressing the CAMERA button on the device or the OK button on the NAVIGATION Wheel. Still images will be saved in JPG format.
  • Page 142 ASP-500GA User Manual AnyDATA ● Flash. • To select the use of flash, tap Menu > Flash and tap On to turn the Flash on, and tap Off to turn it off. Video mode When you use the Video capture mode, you can press the CAMERA button or the ENTER button to start recording a video clip.
  • Page 143 ASP-500GA User Manual AnyDATA 7.2 Using Pictures & Videos The Pictures & Videos program collects, organizes, and sorts images and video clips in the following formats on your device. File Type File Extensions Picture *.bmp, *.jpg, *.gif, *.png *.wmv, *asf Video You can do many things with the captured images;...
  • Page 144 ASP-500GA User Manual AnyDATA How to play videos 1. Tap Start > Programs > Pictures & Videos. The contents of the My Pictures folder will be shown by default. 2. Tap the desired video and play it in Windows Media Player.
  • Page 145 ASP-500GA User Manual AnyDATA How to edit a picture You can rotate, crop, and adjust the brightness and contrast levels of the pictures. 1. Tap Start > Programs > Pictures & Videos. 2. Tap the picture you want to edit.
  • Page 146 ASP-500GA User Manual AnyDATA How to send pictures and video clips via e-mail You can send pictures and video clips to other devices via e-mail. 1. Before sending, set up Messaging to send and receive messages. 2. From the screen, select the desired item.
  • Page 147 ASP-500GA User Manual AnyDATA 7.3 Using Windows Media Player With Microsoft Windows Media Player 10 Mobile for Pocket PC, you can play digital audio and video files that are stored on the device or on a Web site. The Windows Media Player on the device supports the following file formats.
  • Page 148 ASP-500GA User Manual AnyDATA About the controls The following are available controls on the Windows Media Player. Adjusts the playback progress of a selected file. Displays the video in full screen. Displays a Web site where you can find music and videos to play.
  • Page 149 ASP-500GA User Manual AnyDATA Screens and menus Windows Media Player has three primary screens. Playback screen Displays the playback controls, such as Play, Pause, Next, Previous and Volume, and the video window. You can change the skin of this screen.
  • Page 150 ASP-500GA User Manual AnyDATA How to synchronize content to the device automatically 1. Turn the power off on the device. Insert a 32-MB or larger storage card into the device, and turn the power back on. 2. On PC, launch Windows Media Player.
  • Page 151 ASP-500GA User Manual AnyDATA Play media How to play items on your device You can find and play songs, videos, and playlists stored on the device or removable storage card by using the library on Windows Media Player Mobile. 1. To open the Library screen, tap Menu > Library.
  • Page 152 ASP-500GA User Manual AnyDATA Use Playlists With Playlists, you can group digital media files together in a specified order for convenient playback. In the desktop Player, you can create a playlist and synchronize the desktop Player with the device. To get more information about synchronizing media, see “Copy media files to your device”...

  • Page 153: Using Other Applications

    ASP-500GA User Manual AnyDATA Chapter 8 Using Other Applications 8.1 Word Mobile 8.2 Excel Mobile 8.3 Viewing Slide Shows with PowerPoint Mobile 153/161...
  • Page 154 ASP-500GA User Manual AnyDATA 8.1 Word Mobile Word Mobile is a streamlined version of Microsoft Word. You can open and edit Word documents created on PC on the device, and you can also save them as *.doc, *.rtf, *.txt, and *.dot files.
  • Page 155 ASP-500GA User Manual AnyDATA 8. 2 Excel Mobile With Excel Mobile, you can easily open and edit Excel workbooks and templates created on your PC, and also create new workbooks and templates on the device. How to create an Excel file 1.
  • Page 156 ASP-500GA User Manual AnyDATA 8. 3 Viewing Slide Shows with PowerPoint Mobile With PowerPoint Mobile, you can open and view slide show presentations created on your PC. You can see Slide shows in *.ppt and *.pps format created using PowerPoint '97 and later in PowerPoint Mobile.

  • Page 157: Appendix

    ASP-500GA User Manual AnyDATA Appendix A.1 ASP-500GA Specification A.2 PC Requirement for running ActiveSync 4.x 157/161...
  • Page 158 ASP-500GA User Manual AnyDATA A.1 ASP-500GA Specification System Information Items Descriptions Microsoft® Windows Mobile Operating System Samsung® SC32442A 400MHz 128Mbyte Memory ROM Size RAM Size 64Mbyte SDRAM Physical Specifications Items Descriptions 119mm x 60mm x 21.8mm Size (L x W x H) Weight 155.5g with battery...
  • Page 159 ASP-500GA User Manual AnyDATA GSM/GPRS and CDMA Modules Items Descriptions Frequency EGSM(900MHz), DCS(1800 MHz) GSM, GPRS Mode Antenna Built-in CDMA Frequency 450MHz Mode 1x, EVDO Rev.A Antenna Built-in GPS Module Items Descriptions Type Sirf-III Built-in Antenna Camera Module Items Descriptions...
  • Page 160 ASP-500GA User Manual AnyDATA Connections Items Descriptions I/O Port 24pin receptacle connector Bluetooth, Wi-Fi Wireless Connections Operating Environment Items Descriptions Temperature -20°C ~ 50°C 0% ~ 90% Relative Humidity 160/161...
  • Page 161 ASP-500GA User Manual AnyDATA A. 2 PC Requirement for running ActiveSync 4.x To connect the device to PC, Microsoft® ActiveSync® program should be installed in the PC. The ActiveSync 4.0 is included in the Start CD. ActiveSync 4.0 is compatible with the following operating systems and applications: Microsoft®...

Table of Contents
