OPERATING INSTRUCTIONS FOR LED-RGBW-CR

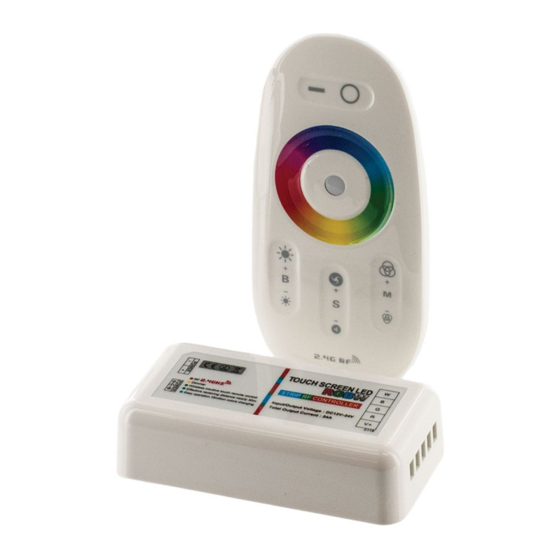

Thank you for purchasing our 2.4G Touch Screen RGBW LED Controller. Please read the instructions carefully before using.

1. Product Description

This system is a high-performance RGBW LED touch remote controller that adopts the most advanced PWM control
technology, controlling all RGBW LED products with five lines and four circuits (common anode), featuring 640,000
colors and 20 automatic changing modes.
It features a memory function that allows the previous settings to be resumed when the unit is powered ON again
making this controller ideal for use in RGBW LED strip lights, LED modules, and so on.
The technology in the 2.4G high-frequency wireless remote control offers low power consumption, long distance
transmission, strong anti-interference, high speed telecommunications, etc.
The remote is designed to appear fashionable and elegant, with simple, practical functions of color changing and
brightness dimming. The capacitive touch screen design makes the remote easy to use.
The modular design and easy screwed terminals enable the controller to be used with all kinds of LED lighting products.

2. Technical Data

Remote
Controller
Size
Power
Material
Fabrication Processing
Size
Working Voltage
Control Way
Max Load Per Channel
Total Output Max
Output Connection
Telecontrol Distance
Programs
110x52x20mm
AAA battery *2pcs
ABS
Multicolor Printing & UV Varnish
85x45x23mm
DC12V~24V
R G B W Four Channels
6A
10A
Common Anode
30 Meters
20 Kinds
