2.4

Connecting the boards

The WebNet DIMM module is inserted into the connector on the WebRJS board, at an
angle of approx. 20 degrees. It is pushed gently into the socket, and when the connector on
the WebNet module cannot be seen anymore, the module is pushed towards the WebRJS
board until it "clicks". The modules are now connected.

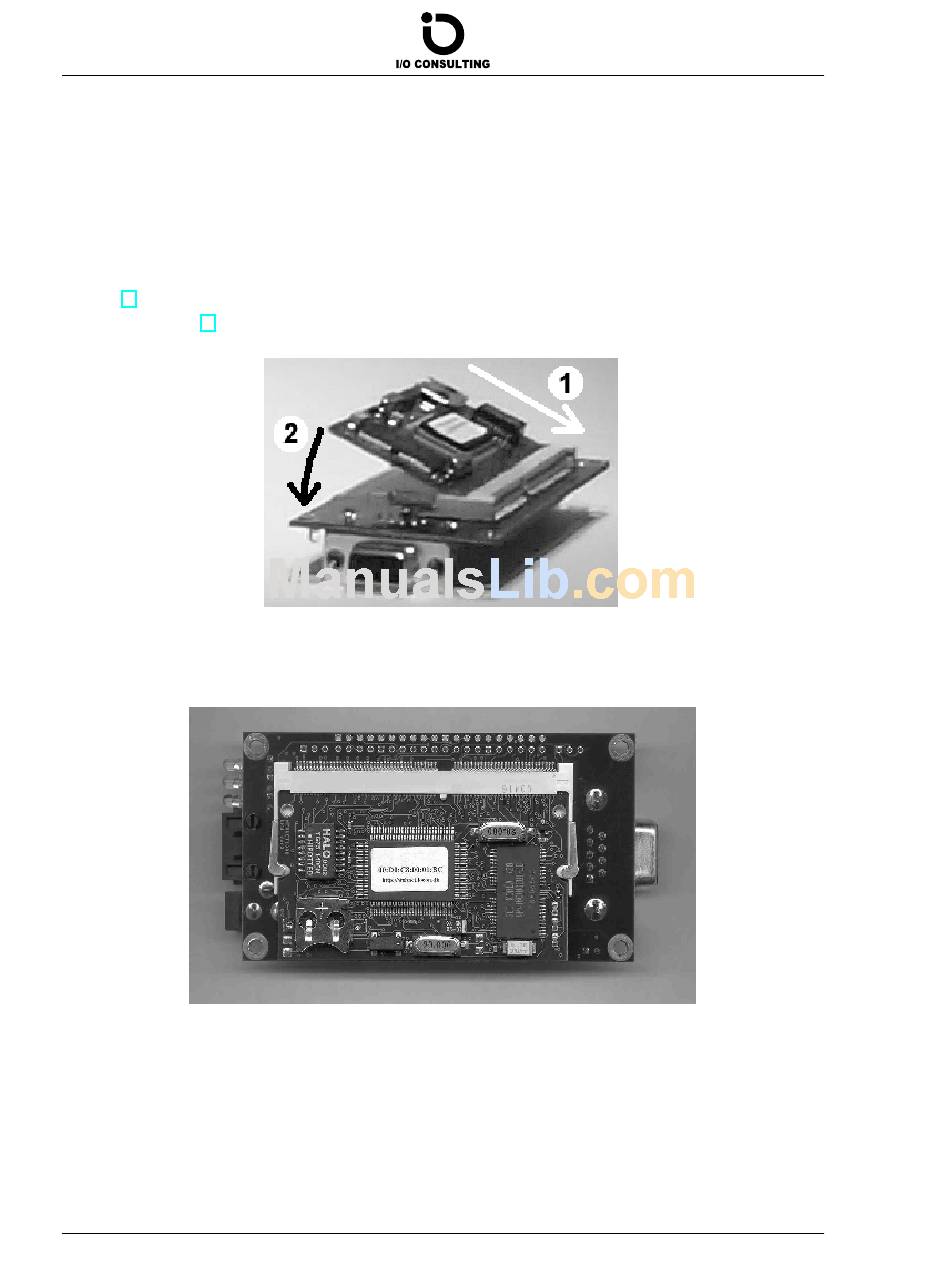

Figure 4 show the connector side of the WebRJS board, with the WebNet module being
inserted. Figure 5 show the WebRJS board with the WebNet module properly inserted.
Figure 4: The WebNet module is being inserted into the WebRJS module
Figure 5: The WebNet module inserted into the WebRJS module
