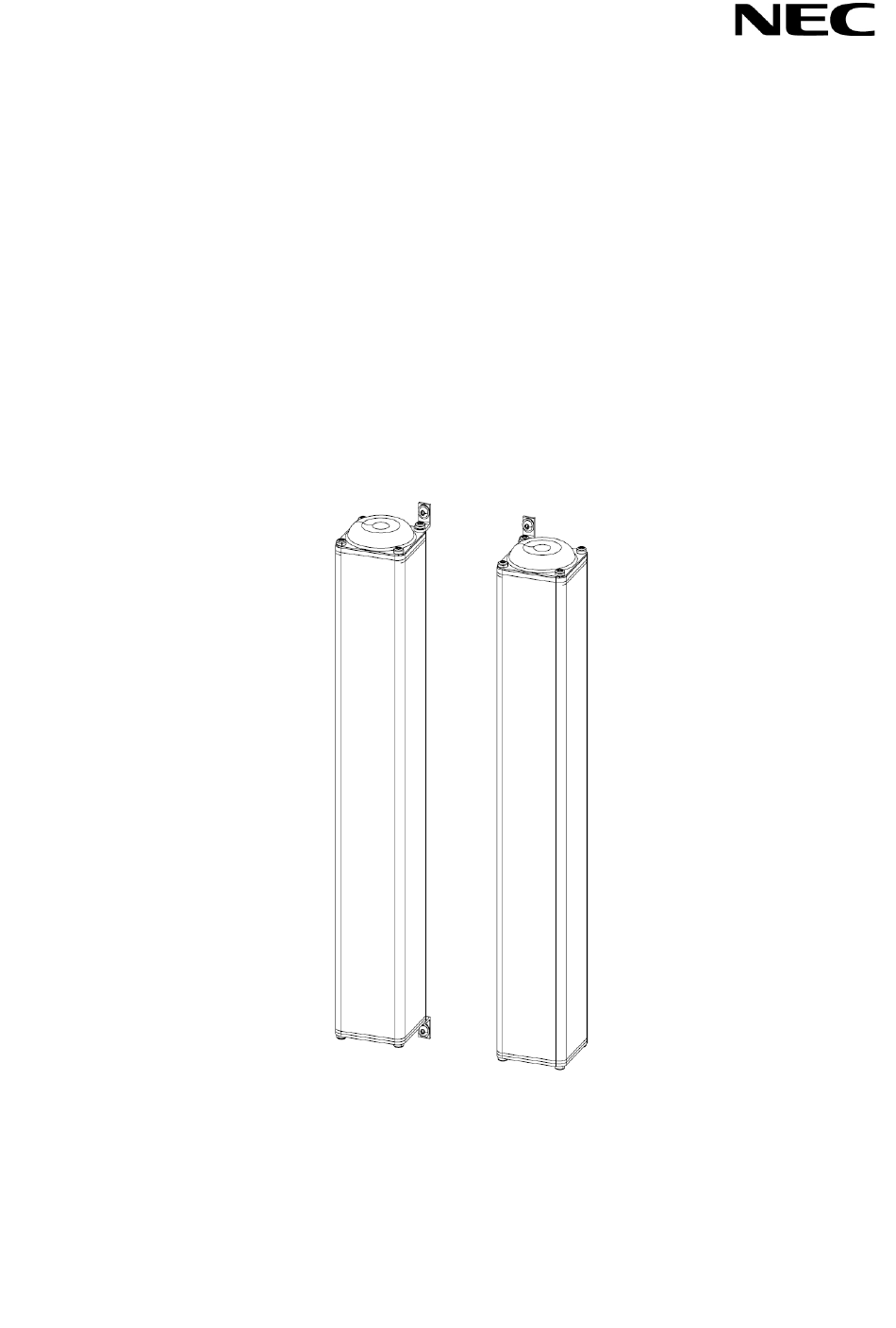

- Page 1 User Manual SP-RM3 Rear mounted speaker passive Version 1.0 - 20200630...
- Page 2 Index SP-RM3 Index …………………………………………………………………………………………………………… Page 02 Shipping content ………………………………………………………………..………………………….… Page 03 Assembly process ……………….…………………………………………………………………………… Page 04 Assembly instruction …………………………………………………………………………………………. Page 05 Technical specification ………………………………………..………………………………………….….. Page 06 Outlines ……………………………………………………….…………………………………………….…. Page 07 Version 1.0 - 20200630...
- Page 3 5. 4x additional mounting brackets (alternative mounting meeting ADA Guidelines in US Market) 6. 2x Speaker cable (2m) (not shown here) Alternative mounting of SP-RM3 by using additional brackets for US Market (6) Alternative mounting option 1 Alternative mounting option 2 Version 1.0...
- Page 4 Assembly process Turn OFF the main power switch on the monitor. Using two M4 screws, two washers, and the mounting brackets, attach the left speaker. Repeat step 2 for the right speaker. If needed, remove the handles from the monitor to be able to move the speakers behind the monitor. Connect one end of the speaker cable to the bottom of the speaker (one cable per speaker).
- Page 5 Assembly instruction SP-RM3 EXTERNAL SPEAKER TERMINAL Internal/External speaker switch Important NOTE : The illustration shown is for reference purpose only. Your display may slightly differ from the illustration. Actual connections depend on the display model used. Version 1.0 - 20200630...
- Page 6 Specification / Outlines SP-RM3 Frequency range 80-20000 Hz Sensitivity 72 dB Rated Impedance 8 Ohm Long term max. power 20 W Net. Dimensions (1pcs) 370x60x60 mm Net. Weight (1pcs) 1 kg Packing gross dimension 420x220x130 mm Packing gross weight 2,4 kg Version 1.0...
- Page 7 Specification / Outlines Version 1.0 - 20200630...
