OPERATING INSTRUCTIONS
LASER DISTANCE DETECTOR
COD.51269
GUARANTEE ........................ 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EGATRONIK and is the answer not in the manual?

Questions and answers

Related Manuals for Ega Master EGATRONIK

Summary of Contents for Ega Master EGATRONIK

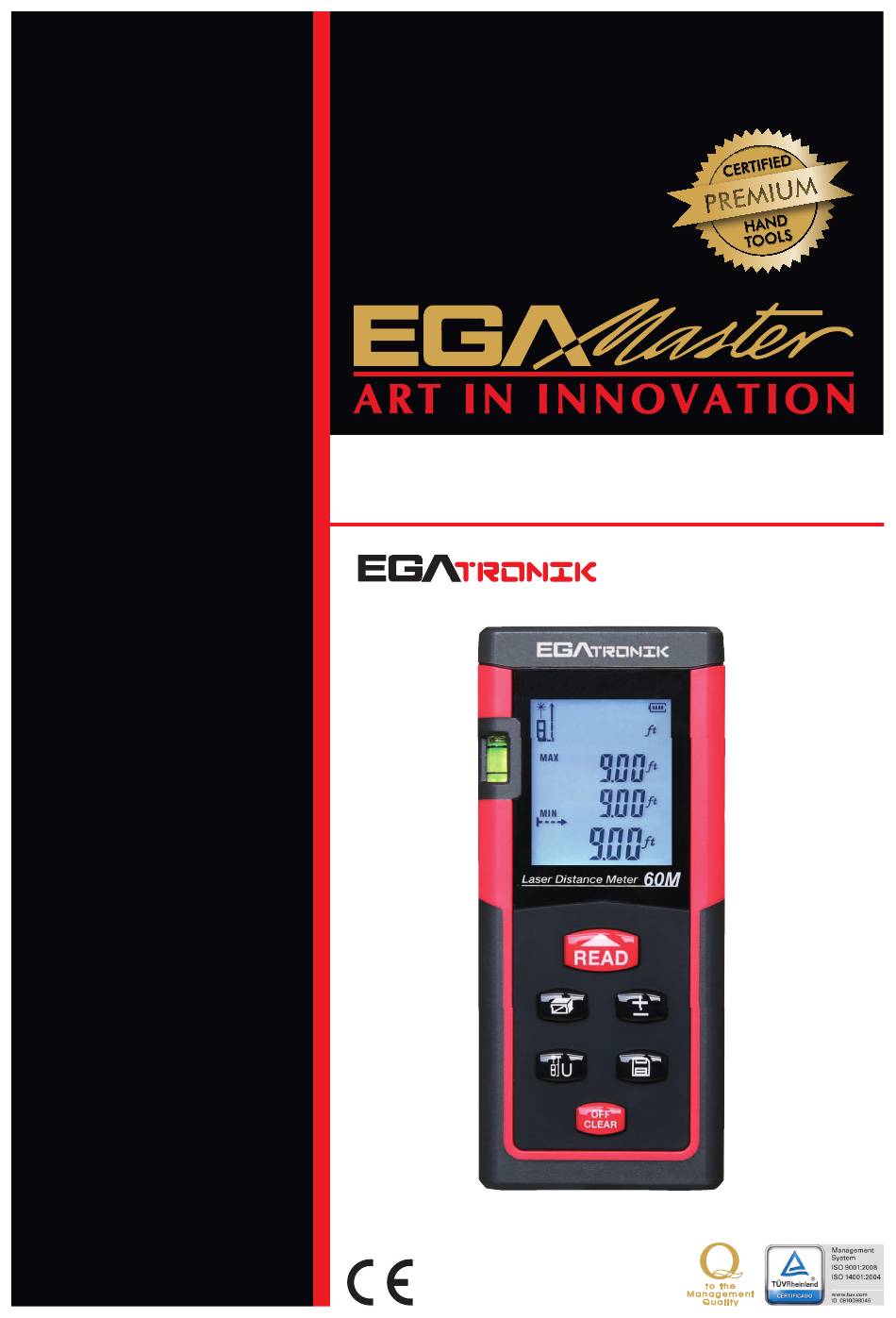

  • Page 1 OPERATING INSTRUCTIONS LASER DISTANCE DETECTOR COD.51269 GUARANTEE ......13...

  • Page 2: Product Introduction

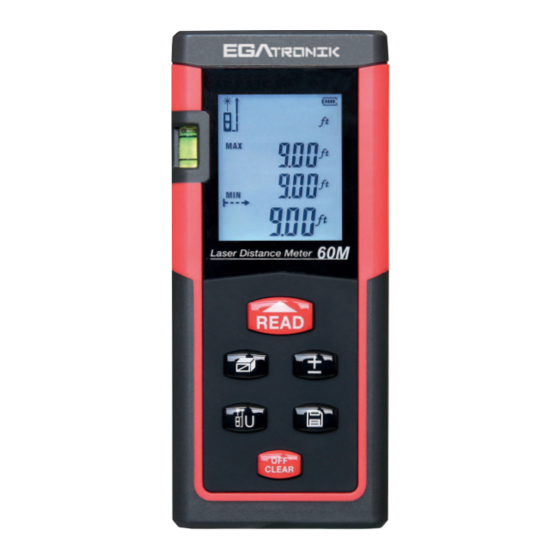

    PRODUCT INTRODUCTION Code 51269, Handheld Laser Distance Meter, is specially designed for users. It is a meter with high-precision and multi-function distance measurement. Code 51269 can measure distance, area and volume, Pythagorean Laws can also be used in code 51269 to measure indiectly. Code 51269 which is light, easy to use and reliable to measure,can make sure your measurement more accuracy, easier and faster.

  • Page 3: Laser Classification

    - Use of accessories from other manufacturers without the express approval of manufacturer. - Deliberate or irresponsible behavior on scaffolding, when using ladders, when measuring near machines which are running, or near parts of machines or installations which are unprotected - Aiming directly into the sun or glare - Deliberate dazzling of third parties;...

  • Page 4: Reference Level Setting

    LCD Display 1 Laser active 2 Reference level (front) 3 Reference level (rear) 4 Reference level (End piece) 5 Continuous measurement 6 Instrument error warning 7,8,9,10,11 Variable measuring functions Length measurement Area measurement Volume measurement Indirect (2 times) measurement Indirect (3 times ) measurement 12 Battery status 13 Historical memory, call up values 14 First value display line, minimum value...

  • Page 5: Display Illumination

    The default reference setting is from the rear of the instrument. Press this button to take the selection from the front edge . A special beep sounds whenever the reference setting is changed. After a re-startup the reference returns automatically to the default setting (rear reference).

  • Page 6: Indirect Measurement

    FUNCTIONS ADDITION / SUBTRACTION DISTANCE MEASURING. The next measurement is added to the previous one, then press the button , the second measured value is shown and the result is shown automatically. The next measurement is subtracted from the previous one. Then press the button , the result is shown in the summary line with the previous value in the second line.
  • Page 7 Press this button , the display shows. Aim at the upper point (1) and trigger the measurement. After the first measurement, the value is adopted. Keep the instrument as horizontal as possible. Aim at the lower point (2), press this button , the second distance is measured and adopted.

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS GENERAL CHARACTERISTICS Measurement Distance 0.1m ~ 60m (4 in ~197 ft) Measurement Speed 3 times / s Battery Type AAA 2 x 1.5V Battery Life up to 3,000 measurements Battery indicator Three states: full, medium, low Dimension 116 x 49 x 28 mm Weight 100g (Including batteries) Laser Type...

  • Page 9: Maintenance

    Continuous Measurement √ Max/Min √ multi-line display √ Up to four lines show Reference level setting √ Front edge or end piece edge Buzzer indication √ Backlight √ white Support for external Auto Bias Technology™ √ calibration error indication √ Display error code Hold √...

  • Page 10: General Maintenance

    GENERAL MAINTENANCE When the surface of meter is dirty, clean with wet cloth and neutral detergent, grinding miller and solvent are forbidden. When the meter is damaged and needs to be repaired, please send it to the designated maintenance center of our company for repair by professional service man, do not repair it without authorization.
  • Page 11 NOTES IMPORTANT! The maker will not take responsibility for damage or malfunction as a result of the device being incorrectly used or, applied for a purpose for whith it was not intended. According to Waste Electrical and Electronic Equipment directive (WEEE), these ones must be collected and arranged separately.
  • Page 13 GARANTIA NO CUBRE AQUELLAS PIEZAS QUE POR SU USO NORMAL TIENEN UN DESGASTE. PARA OBTENER LA VALIDEZ DE LA GARANTIA , ES ABSOLUTAMENTE IMPRESCINDIBLE QUE COMPLETE Y REMITA ESTE DOCUMENTO A EGA MASTER , DENTRO DE LOS SIETE DIAS A PARTIR DE LA FECHA DE COMPRA.
  • Page 16 C/ ZORROLLETA 11, POL. IND. JUNDIZ 01015 VITORIA, SPAIN P.O.B. APTDO. 5005 FAX. 34 - 945 290 141 TEL. 34 - 945 290 001 info@egamaster.com www.egamaster.com...
