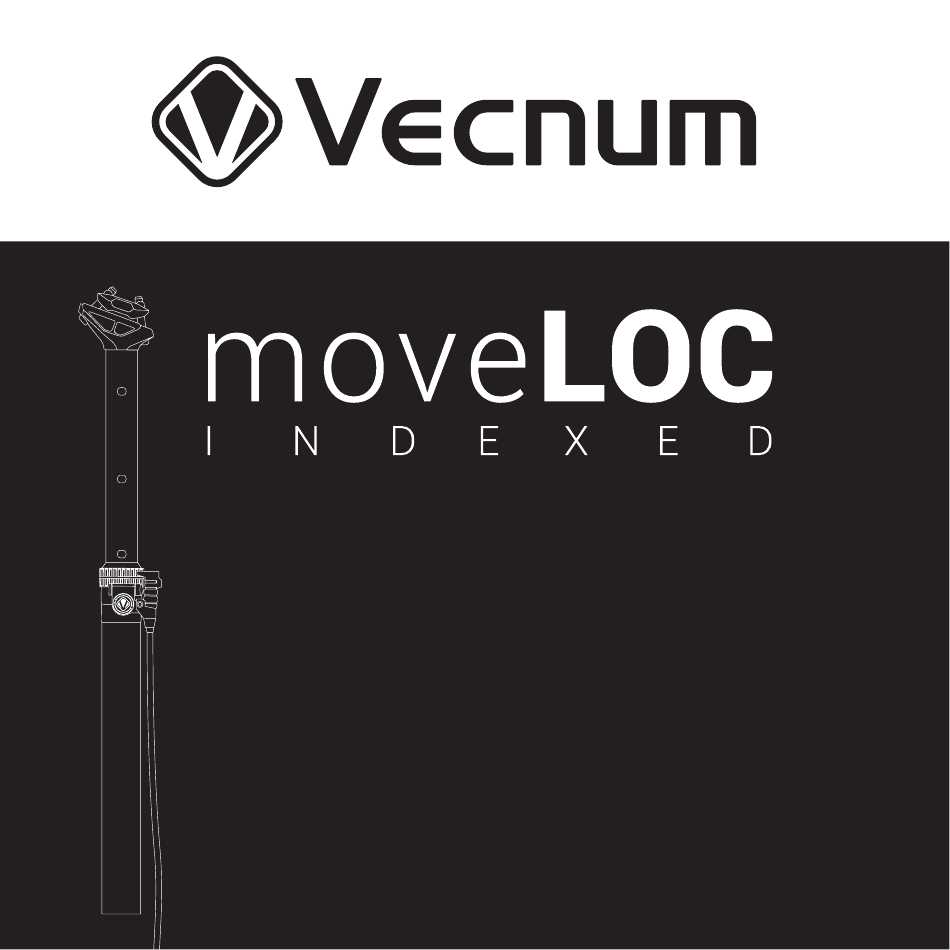

- Page 1 Manual...
- Page 2 Please read the manual carefully, before installing your moveLOC dropper post at your bike.. Add. information you can find on our website http://vecnum.com/en/products/moveloc/servicefaq/ There will be always the latest version of the manual online. For a quick an easy installation you will also find a video tutorial on this website.
- Page 3 You can easily find the suitable length for your moveLOC dropper post by our online CONFIGURATOR: http://vecnum.com/en/products/moveloc/configurator The moveLOC dropper post is only manufactured with diameter 30,9 mm. To adapt the post to several seat tube diameters, we offer different shims in our online shop. This standard diameter saves weight and assures a maximum of flexibility using other seat tube diameters in the future.
- Page 4 Operation instructions: Please make sure, that you are fully familiar with the function of the moveLOC dropper post before your first ride. Due to an operating error you can loose control of your bike, which can occur an fatal accident. After a short period of familiarisation, you will shift your moveLOC dropper post intuitively to the individual height positions.
- Page 5 Position 1 : pedalling ( maximum position = post completely extended) The maximum positions should be adjusted in a way, that allows an ergonomic position for pedalling uphill Position 2 : trail ( 40mm lowered referred to maximum position) This Position is ideal for riding easy trail incl. pedalling section. With 40mm lowering you will have significant more ability to move with the bike.
-
Page 6: Table Of Contents
CONTENT 1 - Installation preparation 2 - Installation dropper post and saddle 3 - Installation remote lever and cable housing 4 - Bowden cable installation / replacement and adjustment 5 - Easy maintenance and care 6 - Trouble shooting and maintenance 7 - Guarantee and Warranty... - Page 7 universal pliers...
- Page 8 We can only guarantee proper function of the moveLOC dropper post by using a tooLOC seat clamp. Comparison between a conventional seat clamp and tooLOC seat clamp conventional seat clamp Forces / working load Clamping Forces Forces / working load uneven force distribution into the seat tube.
- Page 9 1 - Montagevorbereitung Torx T25 Remove old seat post clamp Install tooLOC clamp...
- Page 10 Clip in the cable remote at the dropper post...
- Page 11 Screw the cable holder tight at the dropper post body Allen key 2.5mm...
-
Page 12: Installation Dropper Post And Saddle
2 - Installation dropper post and saddle Completely extend dropper post Press Fail Safe button and completely extend seat post... - Page 13 Insert dropper post into the seat tube Tighten seat clamp Torx T25 For an easy installation, preset the post roughly to the height position in the seat tube and tighten the seat clamp bolts hand tight Recommendation: Please use the supplied assembly paste for reliable clamping between post | shim | seat tube...
- Page 14 Loosen rear bolt Allen key 5mm Remove bolt and nut from upper rocker of the rail clamp Put the saddle rail into the lower rocker of the rail clamp Put the upper rocker back onto the saddle rail Hang up the rear clamp bolt into the upper rocker...
- Page 15 Adjust saddle position Allen key 5mm Adjust saddle tilting first, then horizontal position -8.5° 8.5° 0° 73° default angle Tighten rear bolt while pressing on saddle bottom Tighten front bolt while pressing on saddle nose Allen key 5mm 32mm...
- Page 16 Tighten the clamp bolts alternated 2.10 Allen key 5mm 6-max. 8Nm Shake saddle strongly and check the 2.11 torque of the bolts again Please check the torque of the clamping bolts after first couple of hour used. - Note maximum torque!
- Page 17 If you use a extreme tilting or a carbon saddle with high oval shaped rails, it may happen, that the standard M6x30m Titanium bolts do not require the 6mm supporting thread In our online Shop https://shop.vecnum.com we offer longer bolts M6x35 for this special application...
-
Page 18: Installation Remote Lever And Cable Housing
3 - Installation remote lever and cable housing Loosen bolts for cable clamp on the remote lever Allen key 2.5mm Remove protective rubber cap from Fail Safe button Pull out the remote cable from the housing half way to enable cutting the cable housing Remove remote lever from the cable housing... - Page 19 First set the bolt from top side, before you rotate the remote lever to its final position Adjust the position in a way that you can actuate the trigger with your thumb in the most ergonomic way Tighten the clamp Allen key 2.5mm...
- Page 20 Cable routing on on the frame If your frame offers some cable holders in or on top or down tube, you can use the recommended routing line for the cable If there is no cable routing for dropper posts with an external actuation available, you can use our provided universal cable holder pads for installation We recommend the routing on the top tube (...
- Page 22 Cutting cable housing Pay attention to the steering angle...
- Page 23 90° Cut cable housing to the intended length Please make sure, that you pull out the cable from the housing before cutting (see : 3.3) Reform crimped cable housing 3.10 Insert the cable housing 3.11 into the remote lever...
-
Page 24: Bowden Cable Installation / Replacement And Adjustment
4 -Bowden cable installation / replacement and adjustment Insert cable Route the cable underneath the clamping plate to the insert of the cable channel from the trigger. Support the routing by moving the clamping plate. Push back the trigger to home position, that the cable appears on the lower end of the trigger. - Page 25 Tighten the cable with the universal pliers until the Fail Safe button moves to end position. cable not tensioned cable tensioned Clamp cable Allen key 2.5mm...
- Page 26 Put on protective rubber cap to the fail safe button Press remote control a few times to check tension of the cable. Loosen the cable clamp again Allen key 2.5mm For hiding the cable end in the trigger you have to press the Fail Safe button to cut off the cable even on the trigger...
- Page 27 Release the Fail Safe button carefully Cable will be returned further by spring. If you release the Fail Safe button suddenly, this can lead to an unwanted free travel. Tighten cable clamp 1.5Nm Allen key 2.5mm...
- Page 28 Function test 4.10...
- Page 29 Attach cable housing most suitably 4.11...
-
Page 30: Easy Maintenance And Care
5 - Easy maintenance and care Before riding, you have to check the dropper post regarding damages. For cleaning the bike you must completely lower the dropper post. We recommend resin free oil with low viscosity for lubrication of the upper sealing unit. Our advice: Dynamic Kettenschmierstoff (available in many German bike online stores) For a long term reliability of your moveLOC dropper post we recommend a... - Page 31 Put oil onto the foam ring Our recommendation: resin free oil with a low viscosity Slide back the upper sealing ring to the seal unit until it engages...
-
Page 32: Trouble Shooting And Maintenance
6 - Trouble shooting and maintenance If you have any problem with the function/handling, please first visit our website regarding an update in FAQ / manual http://vecnum.com/en/products/moveloc/servicefaq On this site you will find updated manuals, Video tutorials for maintenance, etc. -
Page 33: Guarantee And Warranty
7 - Guarantee and Warranty Guarantee The Vecnum GmbH grants a warranty of two years, as required by law. Wearing from using the products is not covered by warranty. As all moving parts on the bike, also the moveLOC dropper post needs the recommended maintenance and will show wear. - Page 34 Notice:...
- Page 36 Vecnum GmbH Communication Alte Bahnlinie 25 Phone +49(0)7567.182882 88299 Leutkirch info@vecnum.com Germany www.vecnum.com 06-2017...
