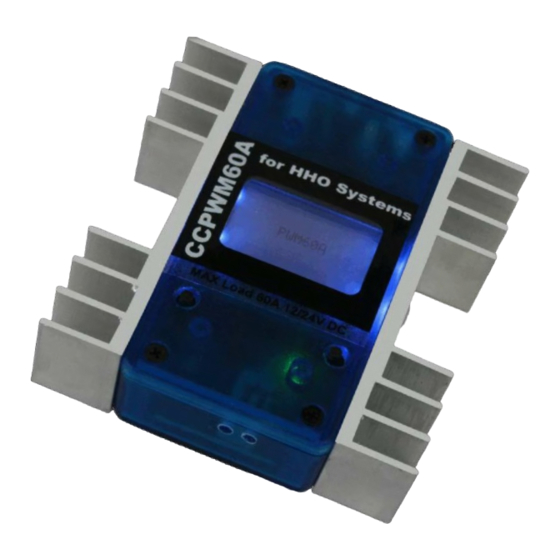

HHO Plus CCPWM60A Installation Manual
Hydrogen on demand dual fuel generator systems
Hide thumbs
Also See for CCPWM60A:
- Installation manual (12 pages) ,
- Installation manual (10 pages) ,
- Installation manual (10 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HHO Plus CCPWM60A
Summary of Contents for HHO Plus CCPWM60A
- Page 1 CCPWM60A – Installation Manual HHO Hydrogen on Demand Dual Fuel Generator Systems...
-
Page 2: Table Of Contents
CCPWM60A – Installation Manual CONTENTS Disclaimer Safety Precautions Parts List Technical Specifications Pulse Width modulation Main Features of the CCPWM60A Electric Connections Front Panel Setting the operating values Electrolyte and Amperage Control Water Level Sensor... -
Page 3: Disclaimer
Incorrectly installing or using the CCPWM60A and/or the HHO System may result in serious damage to you and/or your vehicle. It should take approximately half an hour to install this unit, so ensure that you have enough time to complete the installation. -
Page 4: Technical Specifications
CCPWM60A – Installation Manual Technical Specifications • Direct connection from Battery and Input to HHO CELL generator, without external relays; • 60A Max Power supply; • LCD Module Monochrome Display Screen: Voltmeter + Ammeter + Cell Charge information; • Automatic detection of battery voltage and auto configuration for: +12V/+24V power supply;... -
Page 5: Pulse Width Modulation
We can put more or less electrolyte and the amperage and HHO production will always be the same. The CCPWM60A is also designed for making the automatic power supply of the HHO System without the need for relays or picking up the signal from the alternator/ignition key, making the system safer to use and easier to install. -
Page 6: Electric Connections
CCPWM60A – Installation Manual Electric Connections 1. Make sure your engine is not running during installation; 2. Mount the product as near of the battery as possible (maximum 3 meters), providing that it is well fixed. Please do not mount it over the battery;... -
Page 7: Front Panel
CCPWM60A – Installation Manual Front Panel When you connect the CCPWM60A you will find the following information displayed: In the CCPWM you have two buttons that will allow you to change settings and control the device operation. For example: if you press the left button (Pause) then... -
Page 8: Setting The Operating Values
CCPWM60A – Installation Manual Setting the operating values If you press the right button (Config) you will enter the configuration display where you can change the operating values of the CCPWM: The CCPWM will only work when the real car voltage value is between the minimum and the maximum working voltage value. -
Page 9: Electrolyte And Amperage Control
CCPWM60A – Installation Manual Once selected the feature you want to change value you need to press the right button (Edit) for more than 2 seconds in order to start flashing the number to edit. Use right button (Next) to move cursor to new number and after to save (Save) your settings. -
Page 10: Water Level Sensor
CCPWM60A – Installation Manual The electrolyte should be added to the water the first time that you use the system, and also when refilling, but in lower quantities. The more electrolyte you add to the water, the more amperage you will have in the system and also more HHO gas will be produced. - Page 11 HHO-Plus.eu (Germany UK) HYDAQ Innovations Stralsunder Str. 14 328905 Horn Bad Meinberg Rua 5 de Outubro 42 2430 - 769 Vieira de Leiria Email: Office@hho-plus.eu Telephone: 0049 5234 820242...
