Summary of Contents for Diamond Audio DXM Series

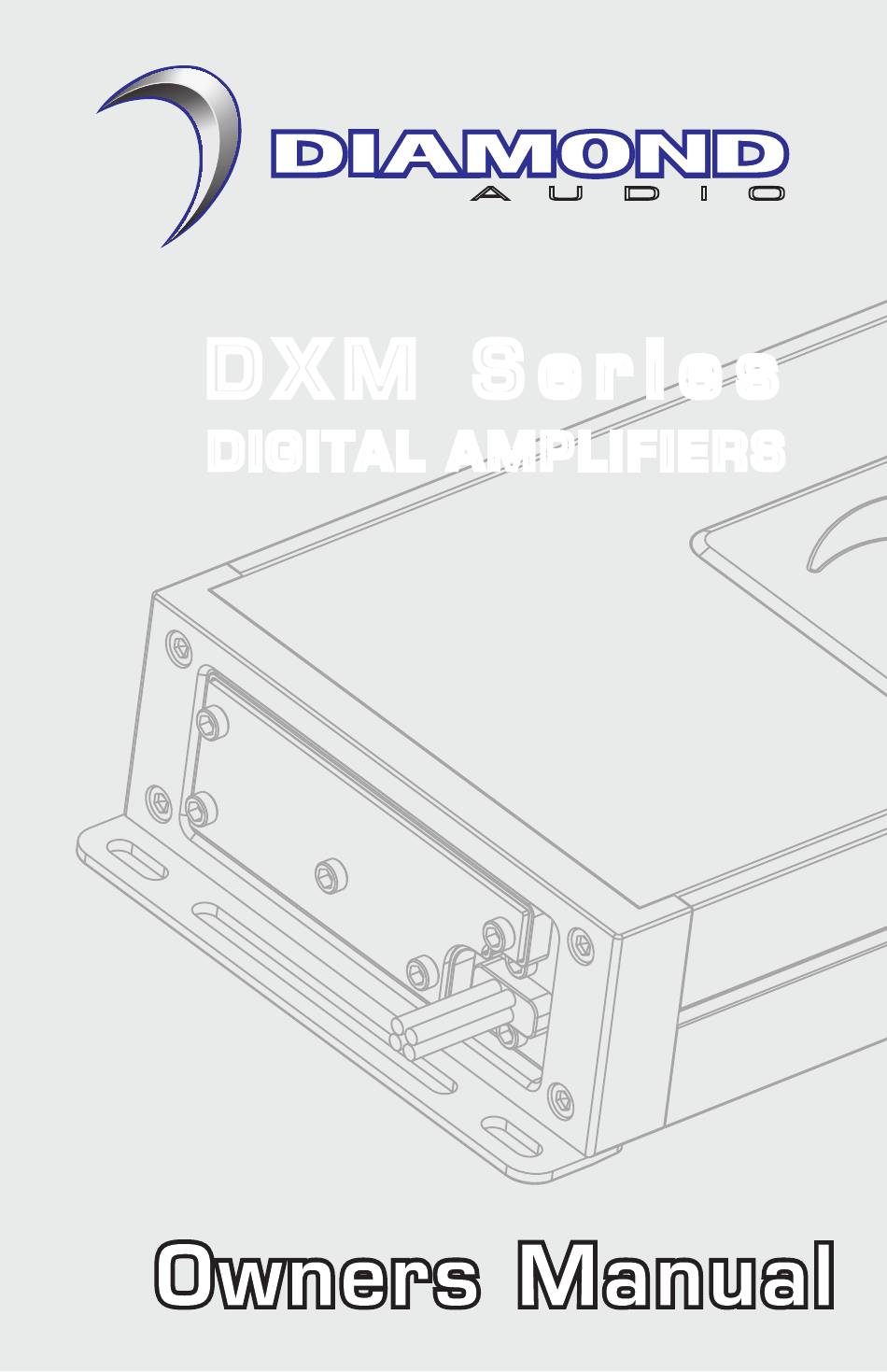

- Page 1 D X M S e r i e s D X M S e r i e s D IGIT A L A MPL IFIERS DI GIT A L AMP L IFIE RS DXM1200.1D/DXM600.2D DXM800.4D/DXM1000.6D...
- Page 2 Diamond Audio dealer to achieve the best possible system recommendation and installation. This will ensure a true Diamond Audio listening experience and sound you would expect from Diamond Audio products. With proper validation, using a Diamond Audio Retialer for installation,...
-
Page 3: General Precautions
WARNING: Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. Diamond Audio Mobile amplifiers can exceed that level so please exercise restraint when listening and enjoying your new amplifier. GENERAL PRECAUTIONS •This unit is designed for negative ground 12V DC operation only. -
Page 4: System Overview
SYSTEM OVERVIEW CROSSOVER CONTROLS CROSSOVER CROSSOVER SELECT SWITCHER FREQUENCY ADJUST A crossover is a device that removes unwanted frequencies from a speaker or amplifier. A Tweeter can easily be destroyed by bass notes if they are not filtered out. Likewise a sub- woofer will not sound natural if it is playing midrange notes. -
Page 5: System Configuration
SYSTEM CONFIGURATION DXM600.2D HEAD UNIT BRIDGE MODE FUSE WIRING COLOR CODE NORMAL MODE -WHITEBLACK +WHITE -GREYBLACK +GREY... - Page 6 SYSTEM CONFIGURATION DXM800.4D HEAD UNIT DXM800.4D STEREO/MONO 3 CHANNEL MODE BRIDGE MODE FUSE WIRING COLOR CODE STEREO MODE +WHITE/-WHITEBLACK +GREY/-GREYBLACK +GREEN/-GREENBLACK +BLUE/-BLUEBLACK...
- Page 7 SYSTEM CONFIGURATION DXM1000.6D HEAD UNIT DXM1000.6D 5 CHANNEL MODE - FRONT/REAR/SUB STEREO MODE FUSE WIRING COLOR CODE STEREO MODE BRIDGE MODE +WHITE/-WHITEBLACK +GREY/-GREYBLACK +GREEN/-GREENBLACK +BLUE/-BLUEBLACK +PURPLE/-PURPLEBLACK +ORANGE/-ORANGEWHITE...
- Page 8 SYSTEM CONFIGURATION DXM1200.1D HEAD UNIT FUSE...
-
Page 9: Installation Instructions
INSTALLATION Professional installation by an authorized DIAMOND MOTORSPORT SERIES amps dealer is highly recommended! Otherwise, the performance of your new gear may not satisfactory. In the event that you decide to do your own installation, please read and follow this manual very carefully. Failure to do so may compromise the integrity of this product, your automobile and possibly void the product warranty. -
Page 10: Specifications
SPECIFICATIONS 140A/14A (avg) 70A/7A (avg) 93A/9.3A (avg) 105A/10.5A (avg) CURRENT DRAW (FULL POWER & MUSIC ) **70A **35A **45A **50A RECOMMENDED FUSE RATING 298.6x110x44 mm 241.6x110x44 mm 298.6x110x44 mm 298.6x110x44 mm (LENGTHxWIDTHxHEIGHT) (11.8x4.3x1.7 Inch) (9.5x4.3x1.7 Inch) (11.8x4.3x1.7 Inch) (11.8x4.3x1.7 Inch) **FUSE RATINGS ARE TO PROTECT THE VEHICLE, NOT THE AMPLIFER - FUSES WILL NEVER PROTECT ANY 12 VOLT AMPLIFIER CURRENT RATING... -
Page 11: How To Obtain Warranty Service
WARRANTY Diamond Audio Technologies (DAT), a division of CV & DA Holdings Incorporated, warrants this product to be free from defects in material and workmanship for a period of one (1) year from the original date of purchase, provided it was purchased from an authorized DAT retailer within the United States. - Page 12 3761 S. Hill Street Los Angeles, CA. 90007 2019 Diamond Audio. All rights reserved. (a division of CV & DA Holdings, Inc.)
