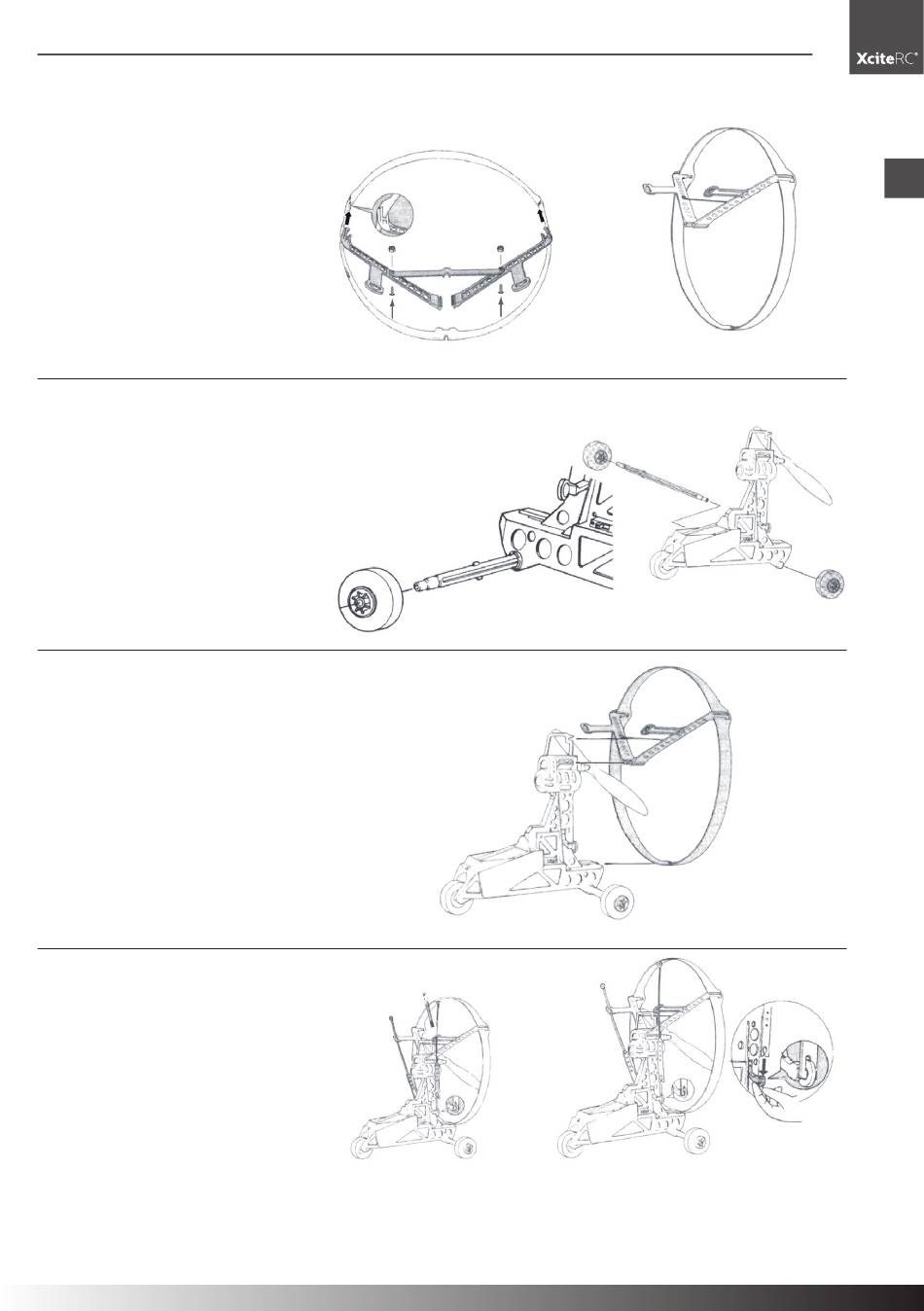

Finalisation
Connect the propeller guard with the
propeller guard axle set. Then attach
the horizontal brace with the screws
EN
and nuts to the axle set.
Insert the rear axle in the chassis.
Position the nose of the axle in the
recess on the chassis. Then put the
wheels on both sides of the axle -
make sure they are properly engaged
– pay attention to the "click" noise.
The wheels are to be removed again
simply squeezing the axis on the ou-
ter side.
The assembled propeller guard is
then attached to the chassis. Make
sure that it is fi rmly in place (pay at-
tention to the "click" noise).
The servo rods are inserted from abo-
ve through the guiding holes of the
propeller guard holder and then snap-
ped to the servo arm.
