Making the connections

You can connect one transmitter and up to eight receivers for each LIFESTYLE
The transmitter and receiver each use one of the two supplied Bose
7 feet (2 meters) long. Each unit also connects to power using one of the two supplied power
packs.
Note: Instructions for use with a non-Bose tuner/receiver vary slightly from those below. For
details, refer to "Instructions for non-Bose or older Bose products" on page 8.

For the transmitter

1. Connect one end of a Bose link A cable to the jack labeled Bose
2. Connect the other end of the cable to the Bose link speaker jack, below the Main

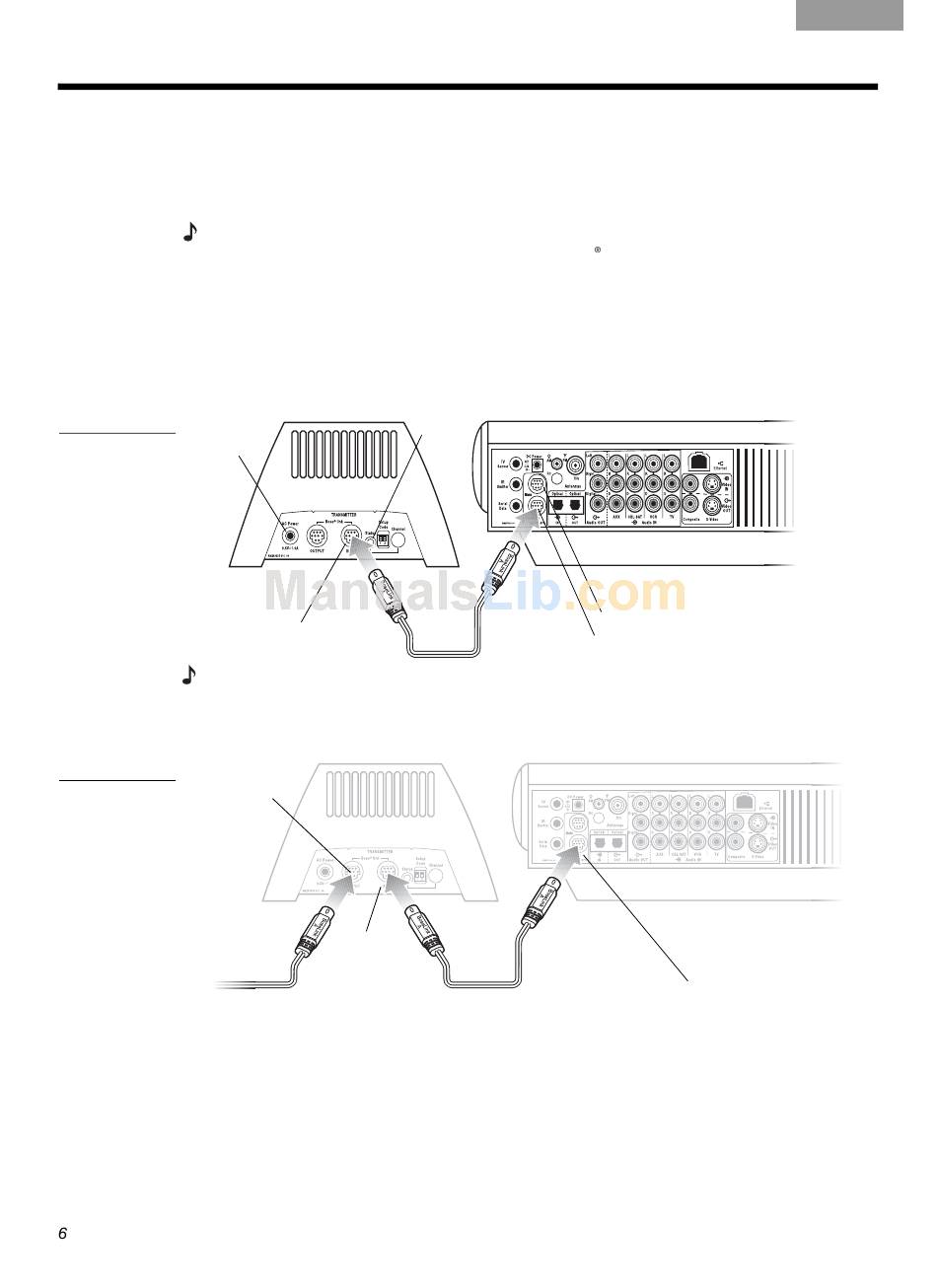

Figure 3
AC
Power
Transmitter
connecting to a
®
LIFESTYLE
media center
Transmitter
Note: If another product is already connected to the Bose link Speaker jack on the media
center, disconnect it there. You can use the wireless audio link to replace this wired connection.
Or, to continue using this connection, reconnect the cable to the jack labeled Bose link OUTPUT
on the transmitter connection panel (Figure 4).
Figure 4
Transmitter and
another product
connecting to a
®
LIFESTYLE
media center
Transmitter
Other product connection
See "Connecting to power" on page 7 to complete your setup of the transmitter.
