Table of content expert net control 2101/2151 Table of content Chapter 1 Security Advise Chapter 2 Description Chapter 3 Hardware Content of delivery Connections Installation Status LED Chapter 4 Configuration DHCP Network settings with GBL_Conf Configuration via webinterface Configuration - Output Ports 4.3.1... -
Page 4: Expert Net Control 2101/2151 Table Of Content
Table of content expert net control 2101/2151 Technical information Fabrique settings Chapter 7 Support Chapter 8 Declarations of conformity © 2011... -
Page 5: Chapter 1 Security Advise

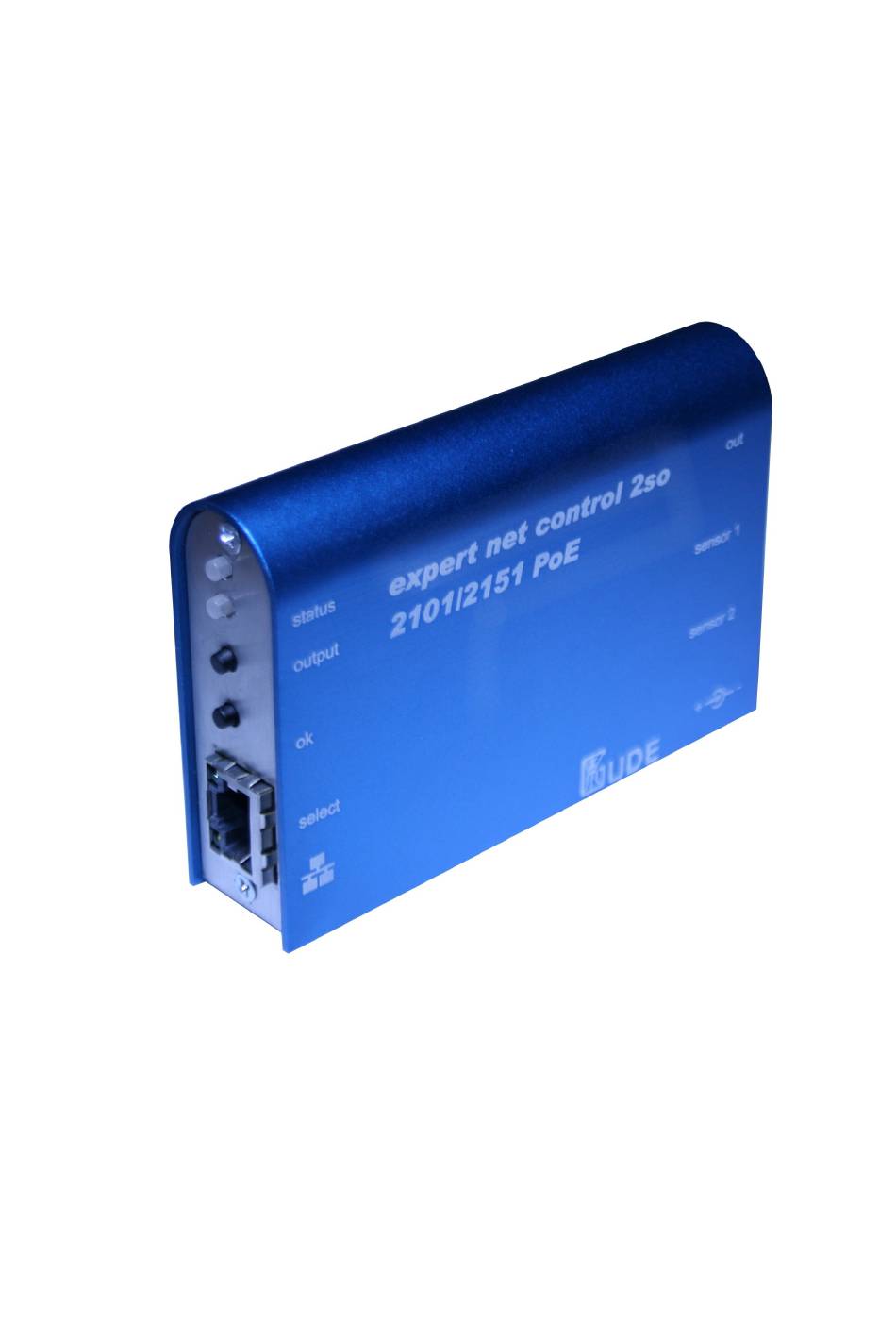

Description expert net control 2101/2151 is a handy little device suitable for different kinds of telecontrolling. In- and output ports on the device allow to monitor upt to two sensors and switch a contact through a TCP/IP network. expert net control 2101/2151 makes it possible to monitor and switch from any computer in the same LAN and from the Internet. -
Page 6: Installation
After switch-on expert net control 2101/2151 looks for a DHCP server and requests an available IP address . Please check the IP address allocated to expert net control 2101/2151 in the DHCP server settings to make sure that the same address is used at every reboot. -
Page 7: Network Settings With Gbl_Conf
Enter a free IP address and the according netmask in the entry mask, then save these changes by clicking on Program Device SaveConfig. Restart the firmware of expert net control 2101/2151, so that the changes will take effect. Now click on Search in order to have the new network configuration displayed. -
Page 8: Configuration Via Webinterface
2101/2151 Configuration Configuration via webinterface Go to the website of expert net control 2101/2151. Enter the IP address of expert net control 2101/2151 into the address line of your internet browser: http://”IP address of expert net control 2101/2151”/ and press LOGIN. - Page 9 2101/2151 Configuration Green text: Watchdog is active and receives ping replies Orange text: Watchdog is activating at the moment, waiting for first ping reply Red text: Watchdog is active and does not receive ping replies any longer When watchdog is activating it waits of a first ping reply.
-
Page 10: Configuration - Ip Address
Use DHCP Here you can set, if expert net control 2101/2151 shall get its TCP/IP settings directly from your DHCP server. If DHCP is activated, expert net control 2101/2151 proves if a DHCP server is active inside of your LAN. Then expert net control 2101/2151 requests TCP/IP settings from this server. -
Page 11: Configuration - Ip Acl
Configuration - IP ACL IP Access Control List (IP ACL) acts as an IP filter for your expert net control 2101/2151. Wether it is active hosts and subnets only can contact expert net control 2101/2151, if their IP adresses are stated in this IP ACL. -
Page 12: Configuration - Messages
Here you can enter the HTTP port number, if necessary. Possible numbers are 1 ... 65534 (standard: 80). To get access to expert net control 2101/2151, you have to enter the port number behind the IP address of expert net control 2101/2151, e. -
Page 13: Configuration - Snmp
2101/2151 Configuration 4.3.5.1 Generate Temperature Messages Here you can configure if and at which Min-/Max-Temperature expert net control 2101/2151 shell send temperature alerts via SNMP-Traps and Syslog. 4.3.5.2 Max Temperature Here you can define the maximum temperature, if the sensor measures this temperature the device will generate an alert via SNMP and Syslog. -
Page 14: Configuration - Snmp Trap Receiver List
Here you can choose between SNMP-traps standard v1 and v2c. Use SNMP only if your network is fitted for. More information about the SNMP functions of expert net control 2101/2151, you can find in chapter SNMP, on http://www. gude.info/wiki or ask our support team. -
Page 15: Configuration - Syslog
Syslog Port If syslog is active enter here the port number, that your Syslog server uses to receive syslog information. More information about Syslog you can find in chapter Syslog, on http://www.gude.info/wiki or ask our support team. 4.3.9 Configuration - E-Mail... -
Page 16: Chapter 5 Operation
Switching at the device expert net control 2101/2151 disposes of two buttons: “select” and “ok”. By pushing “select”, the LED of the Output starts blinking which means that it is selected. If you want to change the switching state of the selected Output, push the “ok”... -
Page 17: Switching By Webinterface
Batchmode The output of expert net control 2101/2151 can be switched on or switched off for a selectable delay (1-30 sec. or 1-30 min.). After the chosen delay the selected port will be switched off or switched on again auto-matically. -
Page 18: Control Panel
Batchmode The output of expert net control 2101/2151 can be switched on or switched off for a selectable delay (1-30 sec. or 1-30 min.). After the chosen delay the selected port will be switched off or switched on again auto-matically. -
Page 19: Chapter 6 Features
In order to update the firmware the program GBL_Conf.exe and the latest firmware are needed. Start the device in bootloader mode and run the program GBL_Conf.exe. On the left side of the program window all Gude devices that are in the network are listed. Select the device, that should be updated, click on Program DeviceFirmware Update and determine the location of the new firmware. -
Page 20: Chapter 7 Support
More information, current drivers and software can be found on http://www.gude.info. In case of further questions, about installation or operation of expert net control 2101/2151, please have look at www.gude. info/wiki or do not hesitate to contact our support (mail@gude.info). -
Page 21: Chapter 8 Declarations Of Conformity
2101/2151 Declarations of conformity Declarations of conformity... - Page 22 2101/2151 Declarations of conformity...
