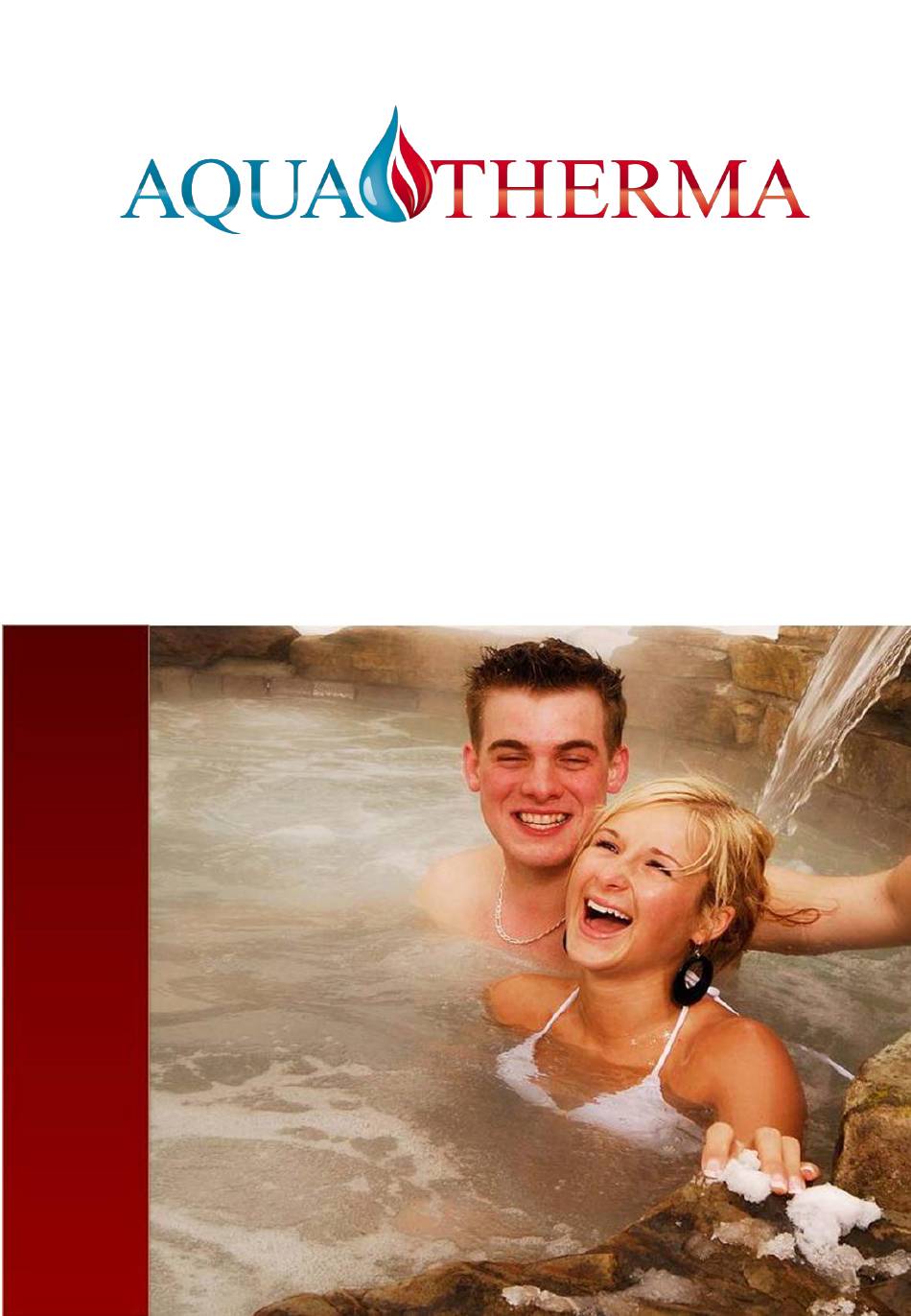

- Page 1 V180323 NATURE SPAS – URBAN SPAS Owner’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction........................2 4. Safety instructions ……………..................3 5. Components - Spa basin ....................4 6. Components - Technical module …................6 7. Components - Pump………………..................7 8. Components - Electronic ....................8 9. Components– Filtration ....................9 10. -
Page 3: Introduction
The purchase of a spa is often the realization of a dream and represents an investment for many years. At Aquatherma, we are very aware of this and it is why we created this little booklet to help make the use and maintenance of your purchase enjoyable. -
Page 4: Safety Instructions
Aquatherma spas have been designed to be safe for private residential use. Please contact your representative if the purpose of your unit is to change or become public as specific options and precautions will need to be part of your unit. - Page 5 COMPONENTS Spa basin INSTALLATION OF THE FIBREGLASS SPA Your spa is made of polymer materials (gel coat) and several layers of composite materials (fibreglass). This manufacturing method gives it a glossy finish and a high durability. DIMENSIONS / CAPACITY OF SOME MODELS Oasis SERIES MODEL...
- Page 6 COMPONENTS Spa Basin Note that some components may be optional. JETS The flow of each jet can be controlled by turning it to the left (less powerful/closed) or to the right (more powerful/open). The jets can also be removed. To do so, grab then turn the entire jet to the left; when completely left, continue to apply tension to the left to disengage the screw mechanism to which the jet is fitted to remain in place.
- Page 7 COMPONENTS Technical module The housing is made of wood and can stay outdoors. It is recommended to put a protective coating on it. Housing dimensions 1 pump systems: 42’’ L. X 24’’ W. X 30’’ H. 2 pump systems: 47-1/2’’ L. X 36-1/2’’ W. X 30’’ H. LAGON systems: No housing available The motor/heating/electronic system is placed on a wooden floor (47-1/2'' L.
- Page 8 COMPONENTS Technical module – Pumping systems PUMP (MOTOR) Strainer cover The pump circulates the water, in a closed circuit, between the spa and the technical module in order to be freed from its impurities by the filter and Pump (motor) heated by the water heater before returning to the spa basin through the water jets.
- Page 9 COMPONENTS Technical module – Electronic systems ELECTONIC KEYPAD The keypad is usually installed near the spa for easy access by users. It is connected to the electronics housing though a cable that must be passed through a rigid pipe (carlon type) and then buried in the trench that connects the spa to the mechanical system.
- Page 10 COMPONENTS Technical module – Filtration systems CARTRIDGE FILTRATION Filter cover plug The filter and its cartridge play a very important role. A clean cartridge contributes significantly to good water quality, and to pump suction and proper propulsion as well Filter cover as the proper function of the housing and the electronic keypad (no error codes appearing).
-
Page 11: Accessories
ACCESSORIES Optional HARD COVER The three-piece foldable hard cover is equipped with quick release straps that must be attached to the outside edges of the spa using screws or concrete glue. A small plastic piece is provided with this clip to lock the clip. - Page 12 ACCESSORIES Optional WATERFALL (standard and LED light) The waterfall mechanism is essentially the same and can be easily installed whether you have the standard model or the LED light model, both available as options. All you need to do is incorporate them into a riprap or a wall close enough to the pool, following the recommendations in the LED waterfall light spa installation document to ensure that all the water in the...
- Page 13 ACCESSORIES Optional BLOWER The blower is an air pump that can be added to your mechanical system to increase the supply of air in the water jets, which increases the propulsion effect. This device does not require any special maintenance. Blower IN.TOUCH 2 (wireless communication system) Select your spa features from your iPad, iPhone, iPod touch or...
-
Page 14: Water Treatment
WATER TREATMENT Properly maintaining the water in your spa is the only way to provide you with peace of mind and to prevent you from having health issues as well as altering the various components of your spa. The use of chlorine is not recommended for spa water treatment, first because it is unstable in hot water and it is too corrosive to the spa components relative to the amount of water that it contains. -
Page 15: Closing Procedures
CLOSING PROCEDURES Your spa can be used during the cold season provided you pay constant attention to it so as not to risk a shutdown of the technical module. This would result in a risk of freezing the mechanical/electronic system and possible significant damage to certain components. - Page 16 CLOSING PROCEDURES Technical Module For the technical module Using the wet/dry sweeper, suck up the trapped water in the technical module’s components. Pump Unscrew and remove the drain plug on the front of the pump (turbine). Vacuum the remaining water. Store the plug dry. Pump strainer Unscrew and remove: - the transparent cover...
