Summary of Contents for EX N' Flex EF-250

  • Page 2: Table Of Contents

    Biofeedback Button: .......................... 7 Control Unit ........................8 How Long Should I Stay on my EX N’ FLEX ? ............10 EF-250 Parts List ......................11 Warning We strongly recommend consulting with a professional to ensure the Passive Activity Range of Motion Therapy provided by this EX N’ FLEX device provides the desired positive benefits through a physiotherapy program.

  • Page 3: Introduction

    Introduction The EX N’ FLEX Model EF-250 has been designed for people who have a wide range of mobility problems from the result of illness or accident. It provides a sustained, predictable Range of Motion therapy (ROM) to Muscles, Joints and Tendons for individuals who face a future with little or no movement.

  • Page 4: Base Handle Position #2

    Base Handle Position #2 Once the Base Handle is in position on top of the Base Cover, swing the Locking Lever over the top of the Base Handle. The machine Locking Lever is now locked into position. Base Handle Unlock Mechanism: To return the base to its casters;...

  • Page 5: Understanding The Control Unit

    On/ Off necessary to control the operation of the EX N’ FLEX EF-250 device. Button controller is secured to the device by means of two screws and plugs into a F/Off/R connector. It can be easily removed for...

  • Page 6: The Speed Button

    When the side mounted Main Power Switch is on, you can start the machine by selecting forward or reverse. You can stop the machine by pressing the F/Off/R button once which will transition the device into the centre/Off position. You can also turn it off by pressing the On/Off button on the bottom left of the Control Unit near the Power Light.

  • Page 7: Odometer "Total" Button

    Odometer “Total” Button: While still in Time mode, press the Mode button 3 times and you will change the mode (the red indicator light will move) to “Total”. The “Total” display acts as an odometer and logs the distance travelled. The total cannot be reset and continually accumulates (mileage/kilometers for leg units), much like the odometer on a car.

  • Page 8: Control Unit

    If the user is using the machine actively or applying some of their own strength and assisting/overriding the motor, then the LED display will show a decrease in the “Biof” numbers. This shows the User/Caregiver that the User is assisting the machine and building strength. Control Unit Instructions for Use Sit in a wheelchair, lounge Chair or kitchen chair.

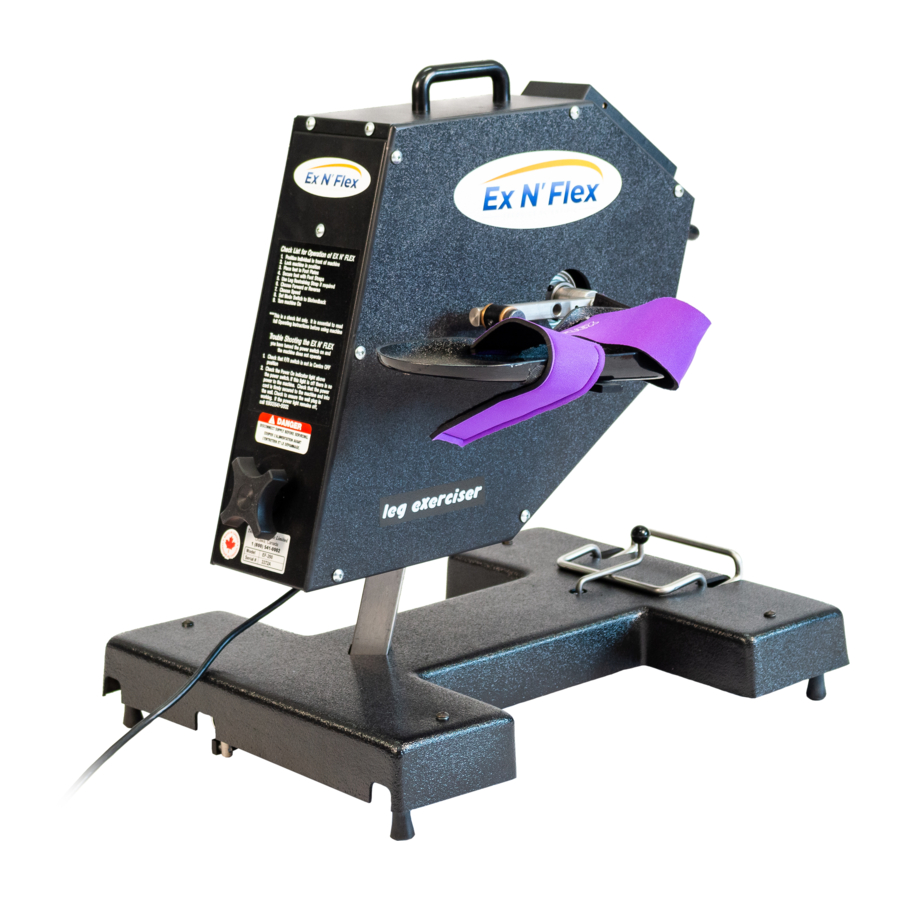

  • Page 9 Biofeedback display, Page 6. 12. For best results, time should be equally Figure 5: Fully Assembled EF-250 divided between Forward and Reverse motion. Reverse motion is achieved by use of the F/Off/R button. 13. To Turn Off, button to Off on the F/Off/R button then Red On/Off button. This will turn off all displays and store the data from Trip to Total on the touch pad.

  • Page 10: How Long Should I Stay On My Ex N' Flex

    How Long Should I Stay on my EX N’ FLEX ? As with any exercise program, the best results are achieved with a gradual approach. (Resist the temptation to spend more than five minutes on the machine to start with). Slow speed is a good way to start.

  • Page 11: Ef-250 Parts List

    **Note: Part A2013 ‘Consumable Strap Package’ includes a complete set of new straps & stoppers for your EF-250. It is recommended that these components be changed every 2 years or when worn. Tecogics Scientific Ltd...
