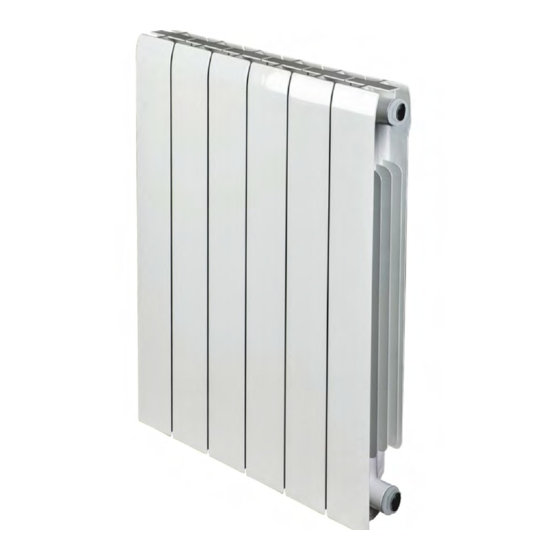

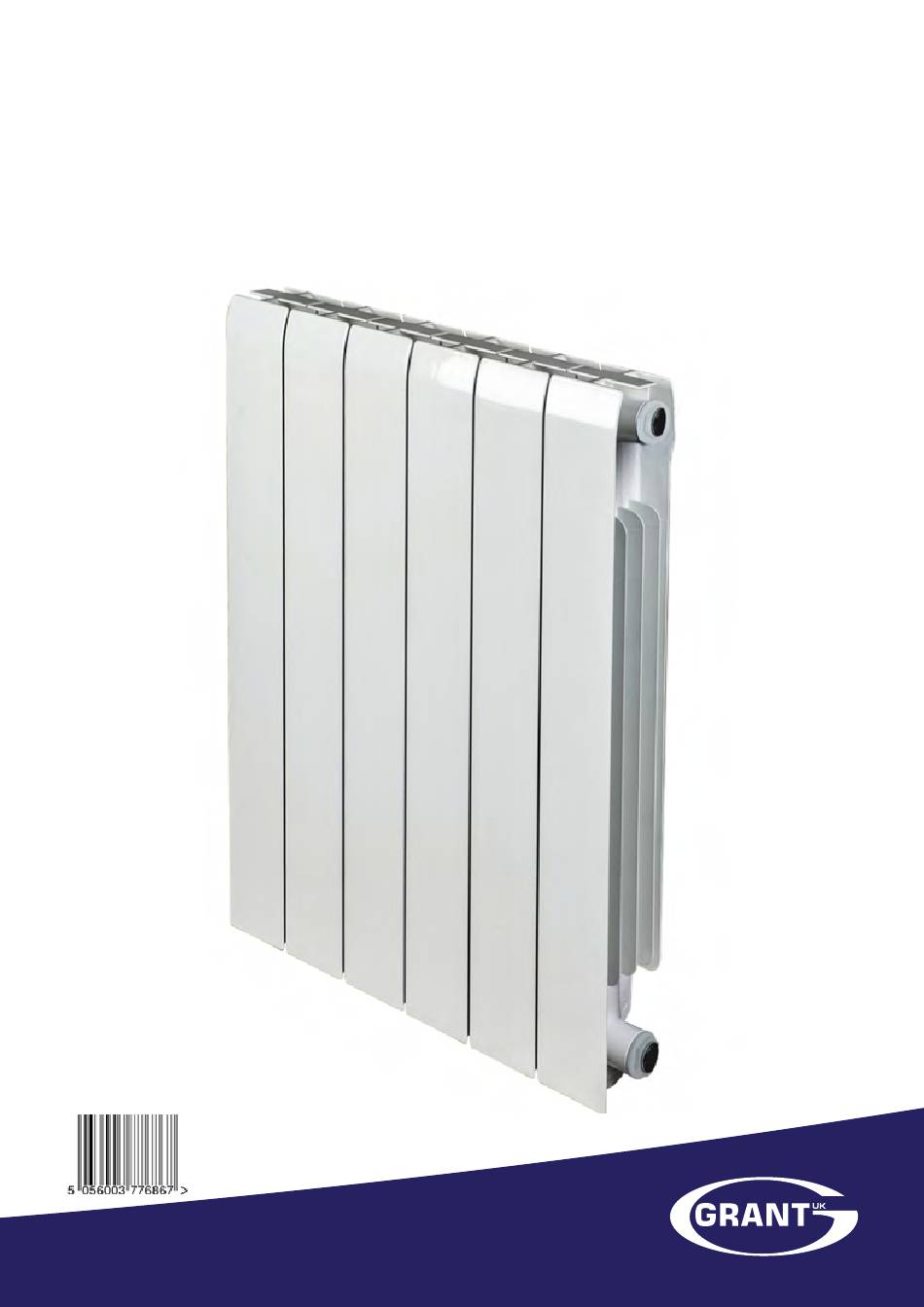

- Page 1 Grant Afinia Aluminium Radiators Horizontal and Vertical Models Installation Instructions UK | DOC 0155 | Rev 1.2 | September 2019...
- Page 2 This manual is accurate at the date of printing but will be superseded and should be disregarded if specifications and/or appearances are changed in the interests of continued product improve- ment. However, no responsibility of any kind for any injury, death, loss, damage or delay however caused resulting from the use of this manual can be accepted by Grant Engineering (UK) Limited, the author or others involved in its publication.
-
Page 3: Table Of Contents
COntEntS intRODUCtiOn Description Storage and handling Kit contents Wall mounting bracket identification tECHniCaL Data Technical specification Dimensions and weights Performance data inStaLLatiOn Regulations compliance Location Pipe connections Installation procedure COMMiSSiOninG faULt finDinG CaRE anD USE HEaLtH anD SafEty infORMatiOn EnD Of LifE infORMatiOn GUaRantEE Contents page 3... -
Page 4: Introduction
1 x Installation pack (see below for contents) systems using air source heat pumps, condensing oil, gas and Vertical Radiators biomass boilers, etc. Grant Afinia radiators can be used on either Each radiator is supplied with: open vented or sealed central heating systems. -
Page 5: Technical Data
tECHniCaL Data tECHniCaL SpECifiCatiOn Material aluminium Paint finish/colour Powder coated / White RAL9010 Connections ½” flow and Return test pressure 9 Bar Maximum operating pressure 6 Bar Maximum operating temperature 110°C DiMEnSiOnS anD WEiGHtS Refer to Tables 2-1a to 2-1c for Standard (horizontal) radiators or Table 2-2 for Vertical radiators and Figure 2-1 for a representation of the dimension references shown in these tables. -
Page 6: Performance Data
pERfORManCE Data HEatinG CapaCity (Uni En 442-2) Refer to Tables 2-3a to 2-3c for Standard (horizontal) radiators or Table 2-4 for Vertical radiators and Figure 2-1 for a representation of the dimension references shown in these tables. table 2-3a: Horizontal Radiators 430mm High - performance Data number Height Width... -
Page 7: Installation
REGULatiOnS COMpLianCE The installation of Grant Afinia radiators should be carried out by a suitably qualified professional or other competent installer in accordance with the relevant British and European Standards and all applicable Building Regulations. -
Page 8: Installation Procedure
When tightening the tails, firmly grip the bush with a good fitting spanner or wrench to prevent it from turning. Recommended The 1” BSP connections on Grant Afinia radiators are left tightening torque is 30-40Nm. hand threaded on the left-hand end of the radiator (viewed... - Page 9 Grant Afinia Aluminium Radiator 580mm High Mounting Brackets Fixing Holes Outline of Front View (brackets obscured) Radiator figure 3-4: fixing hole positions for Horizontal 580mm high radiators table 3-3: Dimensions for figures 3-4 & 3-5 Dimensions (mm) no. of Sections...
- Page 10 table 3-4: Dimensions from figure 3-6 Dimensions Height no. of Sections 1842 1800 1842 1800 2042 2000 2042 2000 Fixing Holes Fixing Holes Outline of Front View (brackets obscured) Radiator figure 3-6: fixing hole positions for Vertical radiators Height Dimensions Sections 1842 1800...
-
Page 11: Commissioning
*As measured by gauss. The Grant Mag One filter has a gauss In order to avoid bacterial growth, due to the lower system value of 12000. -
Page 12: Fault Finding
faULt finDinG Reduced or no output from radiator • Check boiler or Heat pump is operating correctly • Check flow and return connections to radiator are correct. Refer to Section 3.3. • Check radiator is correctly vented • Check radiator valves are open •... -
Page 13: Health And Safety Information
Please refer to and follow the Health and Safety Information given in these Installation User Instructions. Recycling Many of the materials used in Grant Afinia radiators can be recycled, these are listed in the table opposite: GUaRantEE Grant Engineering (UK) Limited guarantees the manufacture if a fault covered by the manufacturer’s guarantee is found... - Page 14 We recommend that your heating system is serviced every twelve months (even when the guarantee has expired) to • Use of spare parts not authorised by Grant Engineering (UK) prolong the lifespan and ensure it is operating safely and Limited.
- Page 15 nOtES notes page 15...
- Page 16 GRant EnGinEERinG (UK) LiMitED Hopton House, Hopton Industrial Estate, Devizes, Wiltshire, SN10 2EU Tel: +44 (0)1380 736920 Fax: +44 (0)1380 736991 Email: info@grantuk.com www.grantuk.com...
