Yamaha YZ250 Parts Catalog page 11

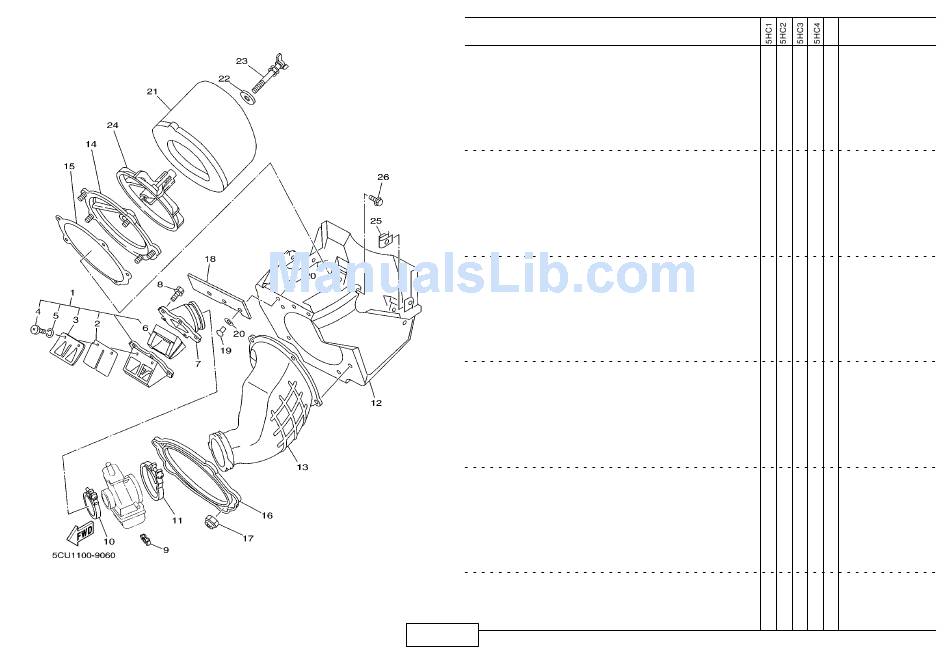

FIG. 6 INTAKE
REF.
PART NO.
NO.
1 4XL–13610–00 REED VALVE ASSY
2 4XL–13613–00 .REED, VALVE
3 4XL–13616–00 .STOPPER, REED VALVE
4 98507–03008 .SCREW, PAN HEAD
5 92907–03100 .WASHER
6 4XL–13625–00 .SPACER, REED VALVE
7 5HC–13565–00 JOINT, CARBURETOR
8 91317–06020 BOLT
9 90464–06214 CLAMP
10 90450–51070 HOSE CLAMP ASSY
11 90450–70072 HOSE CLAMP ASSY
12 4SS–14401–10 AIR CLEANER CASE ASSY
13 5HC–14453–00 JOINT, AIR CLEANER 1
14 3JD–14459–01 HOLDER, GUIDE
15 3JD–14462–00 SEAL
16 3JD–14477–00 PLATE
17 95607–05100 NUT, U
18 4SS–14417–00 COVER 1
19 90267–32070 RIVET, BLIND
20 90201–03313 WASHER, PLATE
21 4XM–14451–00 ELEMENT, AIR CLEANER
22 90209–06096 WASHER
23 90122–06035 BOLT, WING
24 3JD–14458–01 GUIDE
25 90183–06023 NUT, SPRING
26 90119–06203 BOLT, WITH WASHER
B
8
DESCRIPTION
1 1
2 2
2 2
4 4
4 4
1 1
1 1
5 5
2 2
1 1
1 1
1 1
1 1
1 1
1 1
1 1
5 5
1 1
3 3
6 6
1 1
1 1
1 1
1 1
4 4
2 2
REMARKS
1 1
2 2
2 2
4 4
4 4
1 1
1 1
5 5
2 2
1 1
1 1
1 1
1 1
1 1
1 1
1 1
5 5
1 1
3 3
6 6
1 1
1 1
1 1
1 1
4 4
2 2
