Hope Vision R2i Instruction Manual

INSTRUCTION MANUAL
IMPORTANT INFORMATION
We strongly advise you read the following recommendations in order to prevent
injury or damage to the lighting system.
NOTE: The battery is supplied only half charged. Please ensure that you fully
charge the battery before fisrt use (see 'Battery Charging' section).
WARNING
· This lighting system will withstand harsh wet weather conditions. However, it
is not designed to be submersed in water. If the light is fitted to a bike, please
ensure that the light unit is removed from the bike before washing - particularly if
using a high pressure jet wash.
· Do not look directly at the beam, permanent eye damage could result.
Consider other people when mounting the light on the head to avoid dazzling
them.
· Keep this light away from children.
· This light unit can get hot when in use in maximum power mode. This is
normal and should not be mistaken as a malfunction. Please use with caution.
· Unlike unregulated LED lighting systems, this light unit will shut down
suddenly after a period of time in low battery mode without any dimming of the
light. Please bear this in mind when using at night.
· Only use the battery charger that is supplied with the lighting system. Use of
any other battery charger may result in explosion and serious injury.
· Do not short-circuit the charging terminals. This can cause the battery to
overheat and could result in fire or explosion.
· The battery charger is designed for indoor use only and should not come into
contact with water.
· The battery charger contains dangerous voltages and the cover should not be
removed. Any attempt to open the charger will invalidate the warranty.
· This light unit conforms to the requirements of EC directive 2004/108/EC for
electromagnetic compatibility.
DISPOSAL
When the equipment has reached the end of its life please dispose
of the components in accordance with your local waste regulations.
Lamps and batteries should be recycled where possible and not
disposed of with regular waste.
RECHARGEABLE LI-ION LED LIGHTING SYSTEM
HLNR2ISTUK - Standard UK
HLNR2ISTEU - Standard EU
Li-Ion
www.hopetech.com
Light Source: 2 x Cree XM-L2 LEDs
Light Output: 1000 measured lumens
1400 generated lumens
Beam: 2 x spot (+/- 9°)
FWHM: 18°
Mounting: QR bayonet style handlebar or helmet mount
Battery: Integrated Li-Ion ES battery with fuel gauge
Nominal capacity 3200mAh
Minimum capacity 3100mAh
Charge Time: 3.5hrs
Weight: 252g
Power Levels: 6 (two sequences of 3), including flash
Burn Time: 1:00 hr - 30:00 hrs
CONTENTS
1 2 3

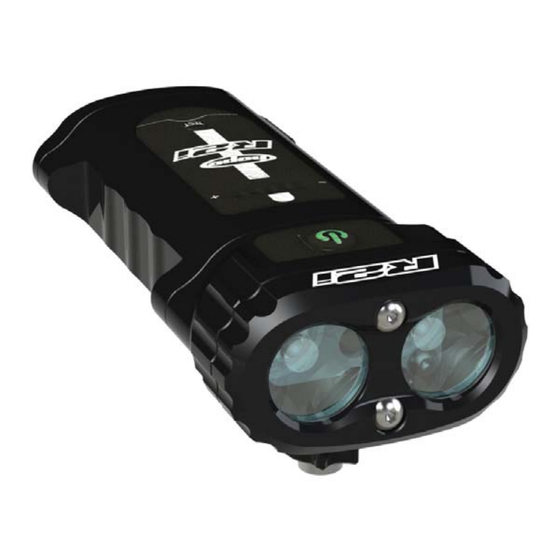

1. R2i lamp unit
2. QR bayonet handlebar clamp
3. 31.8 handlebar shim
4. 25.4 handlebar spacer
LI-ION ES BATTERY PACK
75% - 100% 50% - 75%
The integrated ES (Energy Status) battery features a 5 stage fuel gauge. Press and
hold the 'TEST' button to activate the LED display. This gives a visual indication of
the remaining capacity within the battery cells.
www.hopetech.com
4 5 6 7
5. Helmet mount
6. QR bayonet mount adapter
7. Battery charger
Fully discharged.
25% - 50% 5% - 25%
Charge immediately
