MULTI-SPORT COMBO

INSTRUCTION MANUAL

PLEASE KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

If you have any concerns with your product please visit our website

www.escaladesports.com

for fastest service. Please have a copy of your receipt of purchase. For any technical support

or warranty issues please contact Escalade Sports at 1-800-467-1421 or e-mail us at

customerservice@escaladesports.com

CPSIA#2-35-7510-2-

-HF

Need help?

Do you have a question about the MULTI-SPORT COMBO and is the answer not in the manual?

Questions and answers

Summary of Contents for Triumph MULTI-SPORT COMBO

Page 1 35-7510-2 MULTI-SPORT COMBO INSTRUCTION MANUAL PLEASE KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE If you have any concerns with your product please visit our website www.escaladesports.com for fastest service. Please have a copy of your receipt of purchase. For any technical support or warranty issues please contact Escalade Sports at 1-800-467-1421 or e-mail us at customerservice@escaladesports.com...
Page 2 Limited 90-Day Escalade Sports Warranty All Escalade Sports games have a limited 90-day from date of purchase warranty. This warrants the retail purchaser for any Escalade Sports game purchased to be free from any defect in materials and construction for 90 days from the date of purchase. The only exceptions to the warranty include main frames, tabletops, playing surfaces, batteries or tools.
Page 3: Parts List

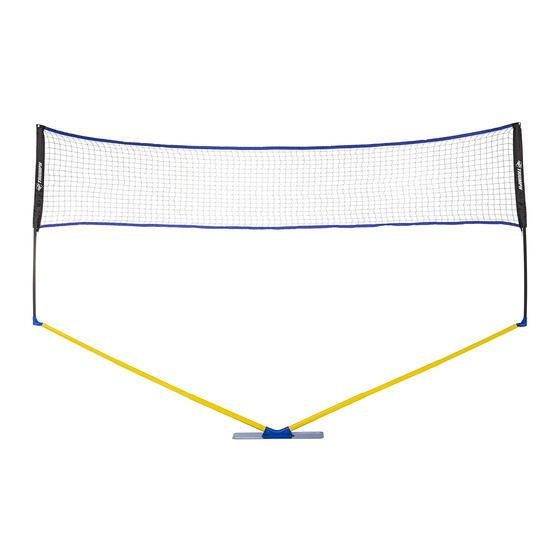

Parts List Base Base Bracket Qty. 1 Qty. 1 Telescoping Base Pole Telescoping Net Pole Qty. 2 Qty. 2 Angled Connector Rotatable Pivot Elbow Qty. 2 Qty. 2 Multi-game Net Non-Slip Pads Qty. 1 Qty. 6...
Page 4: Parts List - Accessories
Parts List - Accessories Badminton Racket -Blue Badminton Racket -Red Shuttlecock Qty. 2 Qty. 2 Qty. 2 Air Pump Volleyball Stake with Guyline Qty. 1 Qty. 2 sets Qty. 1 Pickleball Paddle Carry Bag Pickleball Qty. 2 Qty. 1 Qty. 2 Ground Stakes Carabiner Qty.
Page 5 Set-up Instructions Assembly (Storage is the reverse of assembly) Note: Having a second person help you STEP 1 will make this assembly easier. Adhere six Non-Slip Pads #7 to the bottom of the Base. STEP 2 Flip base over and slide Base Bracket #2 into base as shown.
Page 6 Set-up Instructions Assembly (Storage is the reverse of assembly) STEP 4 DETAIL A Spring Lock Carefully pull out telescoping poles #3 as shown, making sure spring locks engage. See Detail A. Repeat for other side. STEP 5 Attach Angled Connector #5 to Rotatable Pivot Elbow #6 as shown.
Page 7 Volleyball game instructions Assembly (Storage is the reverse of assembly) STEP 1 Extend telescoping Net Pole #4 as shown. Make sure spring locks are engaged in the hole at the end. See Detail B. The other hole will be for the net hook used in later steps.
Page 8 Volleyball game instructions Assembly (Storage is the reverse of assembly) DETAIL D Net Hook STEP 3 DETAIL C With the help of another adult, slide poles with the net into blue pivot connector at the same time on both ends. See Detail C. Then, insert hooks into the remaining hole in the net post as shown in Detail D.
Page 9 Badminton Game Instructions Assembly (Storage is the reverse of assembly) Note: Having a second person help you will make this process easier. To convert from Volleyball to Badminton: Unhook net hooks, then press spring locks and slide telescoping pole down on both sides for Badminton net height.
Page 10 Assembly (Storage is the reverse of assembly) VOLLEYBALL GAME RULES Court Size The length and width however can be increased or decreased proportionately depending on the area available. The net shall be stretched across the center of the court dividing it in half. The net height withpoles fully extended is at the popular height of 7 feet 5 inches.
Page 11 Assembly (Storage is the reverse of assembly) VOLLEYBALL GAME RULES Errors When a player and/or when the ball is in play: 1.Does not clearly hit the ball or allows the ball to come to rest in any part or parts of the body.
Page 12 Assembly (Storage is the reverse of assembly) BADMINTON GAME RULES Court Size The length and width however can be increased or decreased proportionately depending on the area available. The net shall be stretched across the center of the court dividing it in half. The net height withpoles fully extended is at the popular height of 5 feet.
Page 13 Assembly (Storage is the reverse of assembly) BADMINTON GAME RULES The Game The game can be played to 15 or 21 points. The best two out of three games wins the match. Teams shall change court ends after each game. Faults •...
Page 14 Condensed Pickleball Rules These simpler instructions cover the basics and will get you started. Please refer to page 16 for diagram. A complete set of rules may be obtained from the United States of America Pickleball Association on their web site (www.usapa.org). Game and Match In tournament play a match will usually consist of the best 2 out of 3 games to 11.
Page 15 Assembly (Storage is the reverse of assembly) PICKLEBALL GAME RULES To start a game the initial server continues to serve, alternating sides (right, left, right, etc.) until a point is lost by the serving team. Then the ball is served by the opposing team’s right side player who continues to serve until a point is lost.
Page 16 Pickleball Court Diagram Court Size If needed, the length and width can be decreased proportionately depending on the area available. -16-...
