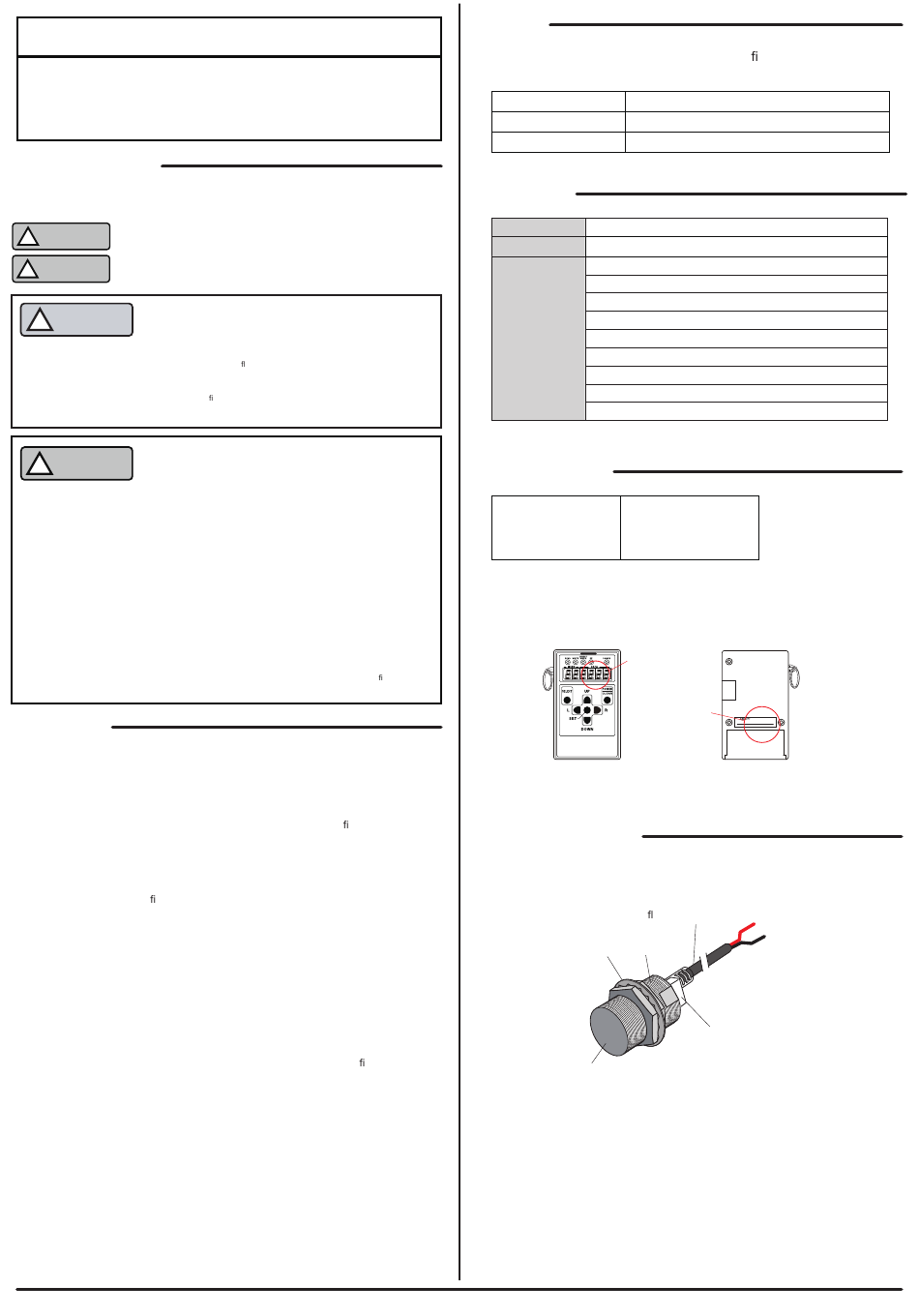

Anywire ASLINKSENSOR BS-K4117-M 1K Series Product Manual

AnyWireASLINK System Products Guide
ASLINKSENSOR [ASLINK Sensor]
BS-K4117-M□□-1K
[Notes on Safety]
Precautions that must be observed in order to use this system safely are
indicated as shown below. You must observe these precautions.
A WARNING indicates a potentially hazardous situation which, if not
WARNING
！
handled correctly, could result in death or serious injury.
A CAUTION indicates a potentially hazardous situation which, if not
CAUTION
！
handled correctly, may result in personal injury or property damage.
○ System Safety
！ WARNING
This system is intended for general industrial applications. It does not
have functions for supporting applications requiring higher levels of safety
such as safety-related devices or accident prevention systems.
○ Always turn off the system power before attempting to mount or replace.
○ Prolonged continuous ow of a rated load current or higher or a transit
current due to load short-circuit or similar problem, in the hybrid unit
including the output unit and the output circuit may result in smoke
generation or re. An external safety device such as a fuse must be
installed.
○ System power supply
！ CAUTION
Use a stabilized 24V DC power supply. Use of a non-stabilized power
supply may cause problems with the system.
○ Separately route high-voltage and power cables
Although the AnyWireASLINK has a high noise margin, lay the
transmission lines and I/O cables so as to keep them away from
high-voltage and power cables.
○ Connectors and terminals
・ Pay careful attention to the length and installation of cable wiring to
e n s u r e t h a t c o n n e c t o r s a n d c a b l e s a r e n e i t h e r s t r e s s e d n o r
disconnected even if they are stressed.
・ Make sure to prevent any metal objects from getting inside the
connectors or the terminal blocks.
・ Short-circuits caused by metal objects or mis-wiring are likely to
damage the device.
○ Do not impose any external loads on the units.
Doing so may cause a failure.
○ Do not disconnect or reconnect between the transmission line and slave
units when a transmission line is operating.
A malfunction may occur.
○ Use the AnyWireASLINK within the range of the speci cations and
conditions shown below.
[Warranty]
■ Warranty period
The warranty on the delivered Product shall continue to be effective for one (1)
year after the delivery thereof to a location as designated by the original owner.
■ Scope of warranty
Should a defect occur in any part of the Product during the foregoing warranty
period when it is used normally in accordance with the speci cations described
in this User's Manual, the Company shall replace or repair the defect free of
charge, except when it arises as a result of:
[1] Misuse or abuse of the Product by the owner;
[2] Fault caused by cause other than the delivered Product;
[3] Unauthorized modi cation or repair of the Product by any party other than
the Company;
[4] Any unusual force of nature, disaster, or other cause beyond the Company's
control.
The term "warranty," as used herein, refers to the warranty applicable to the
delivered product alone. The Company shall not be liable for any damages
consequential or incidental to a malfunction of the delivered product.
■ Repair at cost
After the expiration of the warranty period, any troubleshooting or repairs shall
be done at the expense of the owner.
Even during the warranty term, any repairs and troubleshooting for defects
arising from causes outside the scope of the warranty as speci ed above shall
be done at the owner's expense.
[Type]
AnyWireASLINK proximity sensor: Ampli er-embodied type,
BS-K4117-M12-1K
BS-K4117-M18-1K
BS-K4117-M30-1K
[Function]
Model
Detection method
Functions
[Included items]
BS-K4117-M12-1K
BS-K4117-M18-1K
BS-K4117-M30-1K
* If mounting clamps are required, please purchase them separately.
* Setting of addresses in this product requires the "address writer ARW-04
(Ver.04-1.01 or higher) or ARW-03 (Ver.2.10 or higher)." Prepare that as well.
ARW-04
[Name of each part]
Toothed washer
-BSK4117M**1K 1/9-
all metal detection type
M12, black nickel plating
M18, black nickel plating
M30, black nickel plating
ASLINKSENSOR two-wire (non-isolated) terminal
Electromagnetic induction type
Sensitivity adjustment value (Threshold)
Hysteresis
Alarm judgment value
Alarm judgment time
Normally open/Normally close
Delay timer
Slave unit voltage drop
Sensing level drop
Teaching abnormality
This product...1
Nut...2
Toothed washer...1
The version is
displayed when
the power is
turned on.
"Ver.*.**" is
written on
this label.
Front
Transmission cable
(Oil-resistant, ex-resistant type)
Full thread
LINK display
IN display
ALM display
Setting port
Detection surface
Example for BS-K4117-M18-1K
READER/WRITER
ARW-04
Ver.04-1.01 LotNo.***
MADE IN JAPAN
Rear
DP (red)
DN (black)
