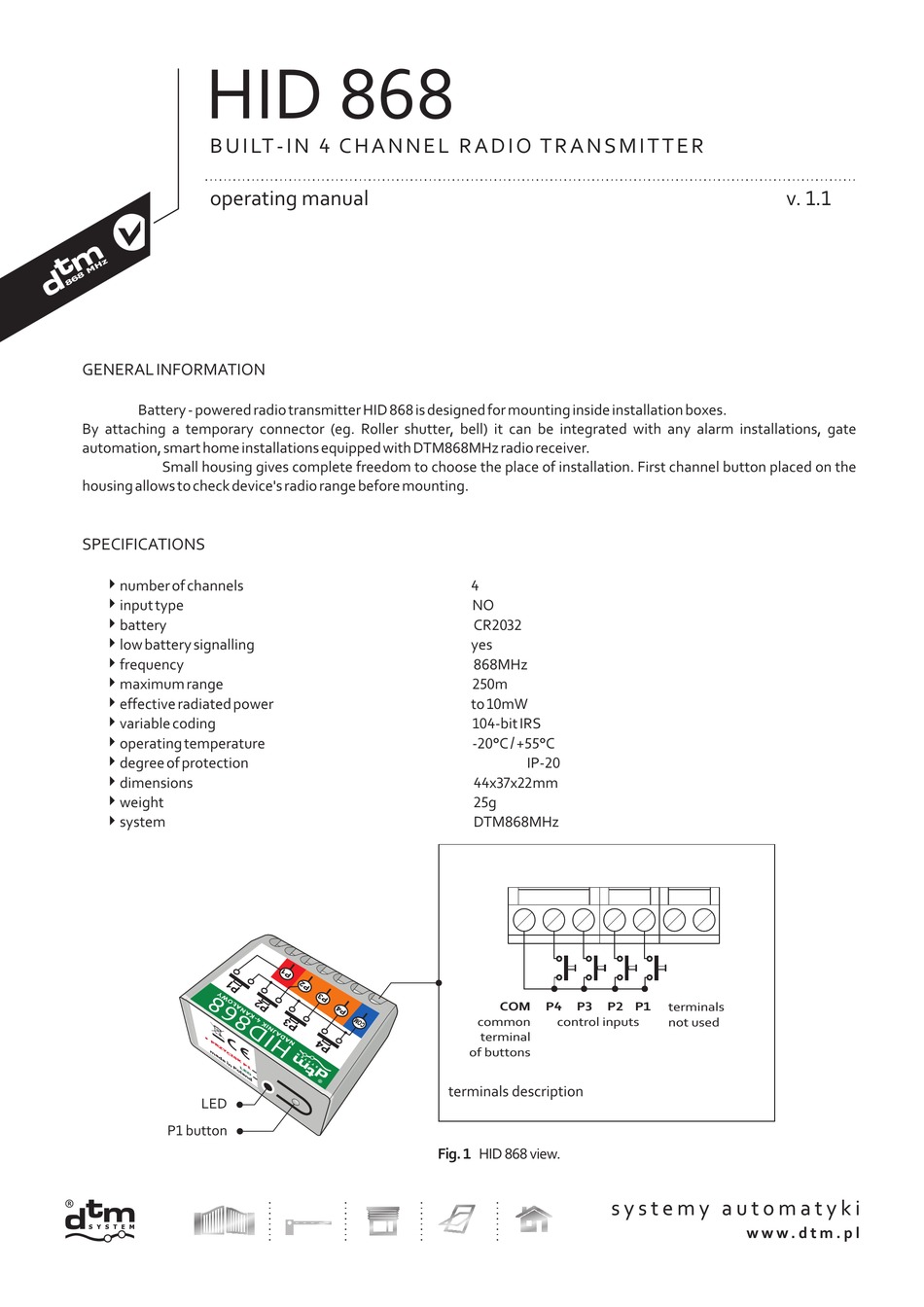

HID 868
B U I LT - I N 4 C H A N N E L R A D I O T R A N S M I T T E R
operating manual
GENERAL INFORMATION

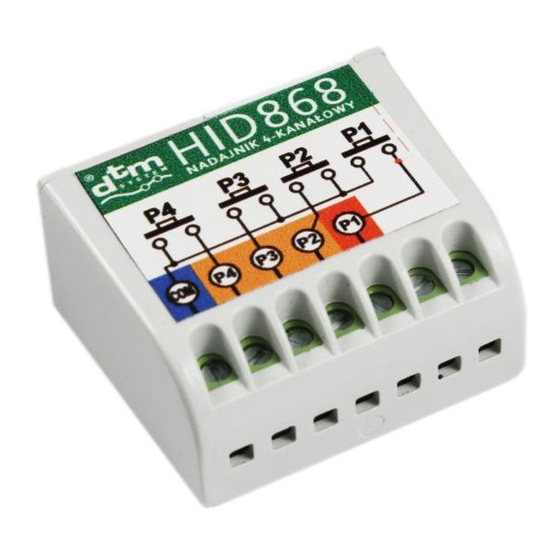

Battery - powered radio transmitter HID 868 is designed for mounting inside installation boxes.
By attaching a temporary connector (eg. Roller shutter, bell) it can be integrated with any alarm installations, gate
automation, smart home installations equipped with DTM868MHz radio receiver.
Small housing gives complete freedom to choose the place of installation. First channel button placed on the
housing allows to check device's radio range before mounting.
SPECIFICATIONS
4 number of channels
4 input type
4 battery
4 low battery signalling
4 frequency
4 maximum range
4 effective radiated power
4 variable coding
4 operating temperature
4 degree of protection
4 dimensions
4 weight
4 system
LED
P1 button
4
NO
CR2032
yes
868MHz
250m
to 10mW
104-bit IRS
-20°C / +55°C
IP-20
44x37x22mm
25g
DTM868MHz
COM
P4
P3
P2 P1
common
control inputs
terminal
of buttons
terminals description
Fig. 1 HID 868 view.
v. 1.1
terminals
not used
