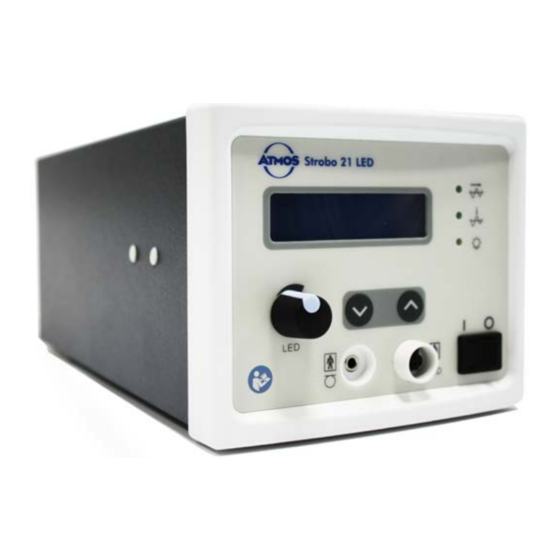

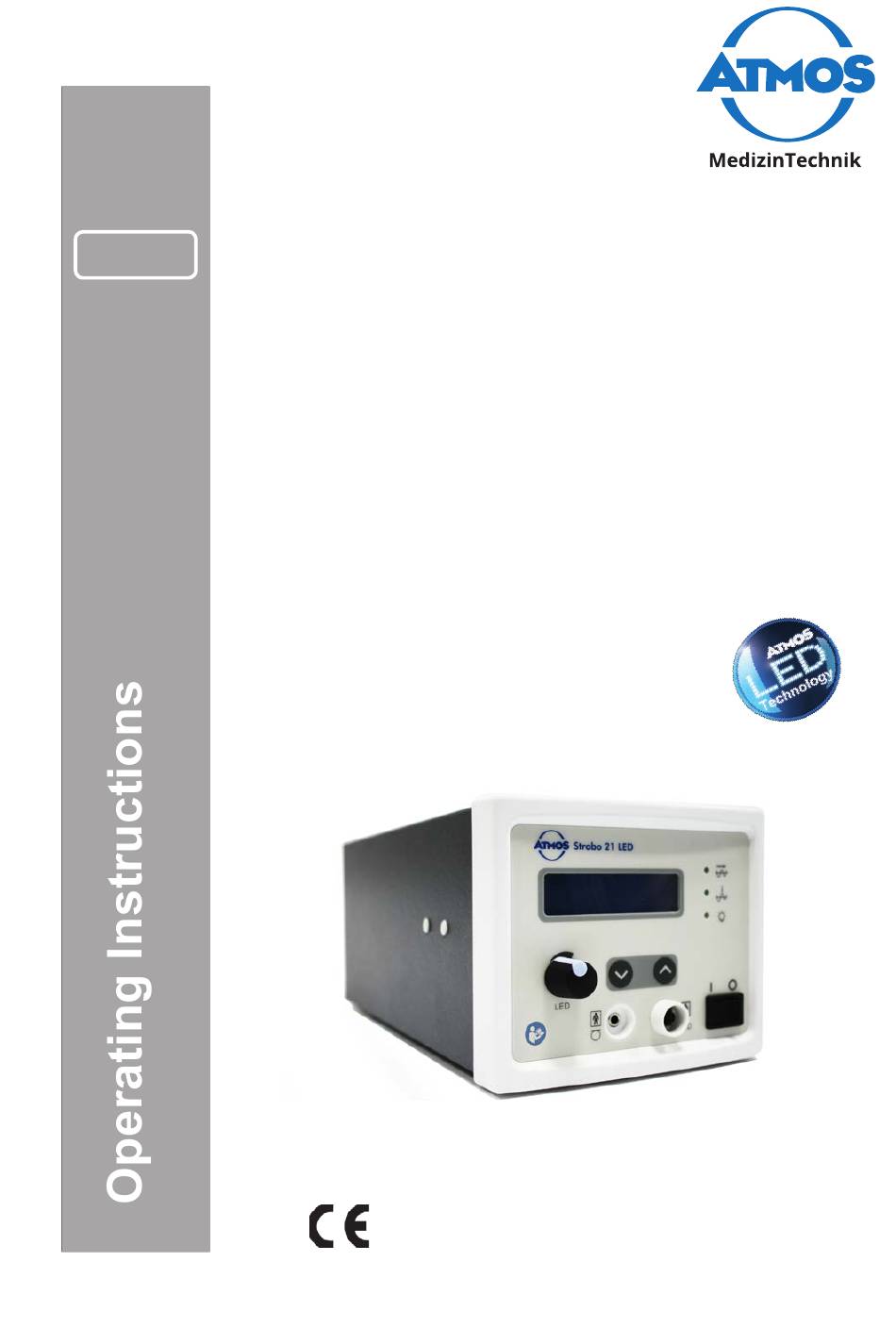

- Page 1 English ATMOS Strobo 21 LED GA1GB.150211.0 These operating instructions are valid for ATMOS Strobo 21 LED 2nd generation. 2019-07 Index: 30...
- Page 2 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch Germany Phone +49 7653 / 689-0 Fax: +49 7653 / 689-190 +49 7653 / 689-393 (Service Center) atmos@atmosmed.de www.atmosmed.de...
-
Page 3: Table Of Contents
Scope of supply ........... 7 Connections ............7 Mounting the holder for light handle......7 Starting up.............8 3.4.1 Connection Diagram ATMOS Cam 31 DV DATA and ATMOS Strobo 21 LED ........9 Operation ............10 4.1 Switching on and off ..........10 Functions of display ..........10 4.2.1 Display during phonation ........10 4.2.2... -
Page 4: Introduction
1.1 Notes on operating instructions In the following all device versions, as well as all modules and table-top devices are named ATMOS Strobo 21 LED! These operating instructions contain important notes on how to operate the ATMOS Strobo 21 LED, correctly and effectively. Their reading helps to avoid risks, and also to reduce repair costs and down-... -
Page 5: Function
1.0 Introduction 1.3 Function The product consists of a control module with control An airborne sound microphone (alternatively a structure- elements, the set off LED light emitter and the microphone. borne sound microphone – stethoscope microphone) picks The emitter and the microphone are both connected to up the sound signal produced by the proband. With this the control element with an electric cable. -
Page 6: For Your Safety
When additional equipment is connected • The ATMOS Strobo 21 LED may only be - no original ATMOS parts are being used to the signal input or signal output section used under the supervision of skilled staff... -
Page 7: Setting Up And Starting Up
3.0 Setting up and starting up 3.1 Scope of supply • Control unit Optional: • Airborne sound microphone incl. clip for laryngoscope • Impact sound adaptor for airborne microphone • Light handle ATMOS LS 21 LED incl. adapter Wolf • Holder for laryngoscope (1 quiver) •... -
Page 8: Starting Up
3.0 Setting up and starting up 3. 4 Starting up Please pay attention, just to switch on the devices after they have been completely wired. ATMOS Strobo ATMOS Cam 31 DV Data 21 LED 3. Generation (not applicable for ATMOS Cam 21 / 31, 2. -
Page 9: Connection Diagram Atmos Cam 31 Dv Data
3.0 Setting up and starting up 3.4.1 Connection Diagram ATMOS Cam 31 DV Data, 3. Generation and ATMOS Strobo 21 LED ATMOS Cam 31 DV Data Foot Handle support controller LED light source ATMOS Strobo ATMOS Cam 31 DV Data... -
Page 10: Operation
4.0 Operation 4.1 Switching on and off Prior to each use a function check has to be performed. See chapter 6.0 “Service and Maintenance”. Switching on Switching off After switching on the device it takes a few seconds until it is ready for operation. -
Page 11: Adjustment Of Display
4.0 Operation 4.2.3 Setting menu Access „Setting Menu“ Select menu The display indicates Select submenu „Startup” release key and keep pressed Confirm, „Set“, „Continue“ Adjustable submenus (see next page) SPL Unit: Setting dB or dBA Slow Motion: 0.5: 1 oscillation / 2 sec ... - Page 12 4.0 Operation Adjustment of menu Confirm / Back Changing the to the relative submenu submenu Display indicates „Please switch off and on again“ Exit the menu, back to indication for examination...
-
Page 13: Examination
4.0 Operation 4.3 Examination 4.3.1 Operating sequence click read off measured Phonation average values 4.3.2 Resolution / Brightness control Adjustments After switching on LED gets darker LED gets lighter turn left slowly until turn right until limit stop requested picture adjustment is obtained Operating mode of brightness control: In case the picture becomes more blurred when the brightness is increased:... -
Page 14: Handling The Foot Switch
4.0 Operation 4.3.3 Operate the foot regulator Permanent light Slow motion Reflection of individual phases/positions of vocal cord oscillations 4.3.4 Operation with other light sources The device can be operated with other ATMOS light sources or other ATMOS devices with integrated light sources e.g. with an ATMOS Scope. -
Page 15: Cleaning And Care
5.0 Cleaning and care 5.1 General information on cleaning and disinfection The composition of plastic, varnish and colours as well as cleansers and disinfectants change continuously. Therefore, prior to first use always test the cleaning agent on the underside of the device! Prior to cleaning • If required, wipe the camera with a cloth moistened with a cleaning solution and disinfect the application parts which come into contact with the patient. -
Page 16: Maintenance And Service
6.0 Maintenance and Service Medical devices like the ATMOS Strobo 21 LED must be fail safe at all times. Do not use the device if it is obviously damaged. Prior to each use a function check has to be performed: •... -
Page 17: Troubleshooting
7.0 Troubleshooting Description Possible causes of error Measures No indication from the device Power plug is fitted badly Check fitting of the power plug at the mains power and at the device No mains voltage available Check main fuse Defect fuse Check fuses Indication is illegible Insufficient contrast Adjust contrast by pressing the ‚up‘ and ‚down‘ button (see chapter 4.1.1). -
Page 18: Accessories And Spare Parts
8.0 Accessories and spare parts 8.1 Accessories Impact sound adaptor for airborne microphone 507.4775.0 Holder for laryngoscope (1 quiver) 507.2209.0 Dongle connector for interlink ATMOS Cam 21 / 31 507.4781.0 Optical instruments Laryngoscopes Laryngoscope HD 70°, Ø 8 mm, L = 190 mm 950.0254.0 Laryngoscope HD 70°, Ø... -
Page 19: Technical Data
9.0 Technical data Operating voltage 100 - 240V, 50/60Hz Current consumption (max.) 0.3 A/m Input power 30 VA Flash frequency 70 - 1000 Hz Accuracy of displaying flash frequency +/- 1 Hz Metering range of sound level 70 - 125 dB Accuracy of the sound level display +/- 1dB Power supply cord 2 m length, earthing contact plug, non-heating... -
Page 20: Disposal
• The materials of the housing can be recycled completely. • The ATMOS Strobo 21 LED does not contain any hazardous materials. • The component parts of the ATMOS Strobo 21 LED must be disposed of correctly and the materials are to be separated carefully. -
Page 21: Notes On Emc
11.1 Guidelines and Manufacturer´s Declaration - Emissions The ATMOS Strobo 21 LED is intended for use in the electromagnetic environment specified below. The customer or user of the ATMOS Strobo 21 LED should ensure that it is used in such an environment. Emissions Test Compliance... - Page 22 11.3 Guidelines and Manufacturer´s Declaration - Immunity The ATMOS Strobo 21 LED is intended for use in the electromagnetic environment specified below. The customer or user of the ATMOS Strobo 21 LED should ensure that it is used in such an environment. IEC 60601- Test Immunity Test Compliance Level...
- Page 23 ATMOS Strobo 21 LED is used exceeds the above compliance level, the ATMOS Strobo 21 LED is to be observed to verify the intended use. If abnormal performance characteristics are noted, additional measures might be necessary, e.
- Page 24 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 atmos@atmosmed.de www.atmosmed.com...
