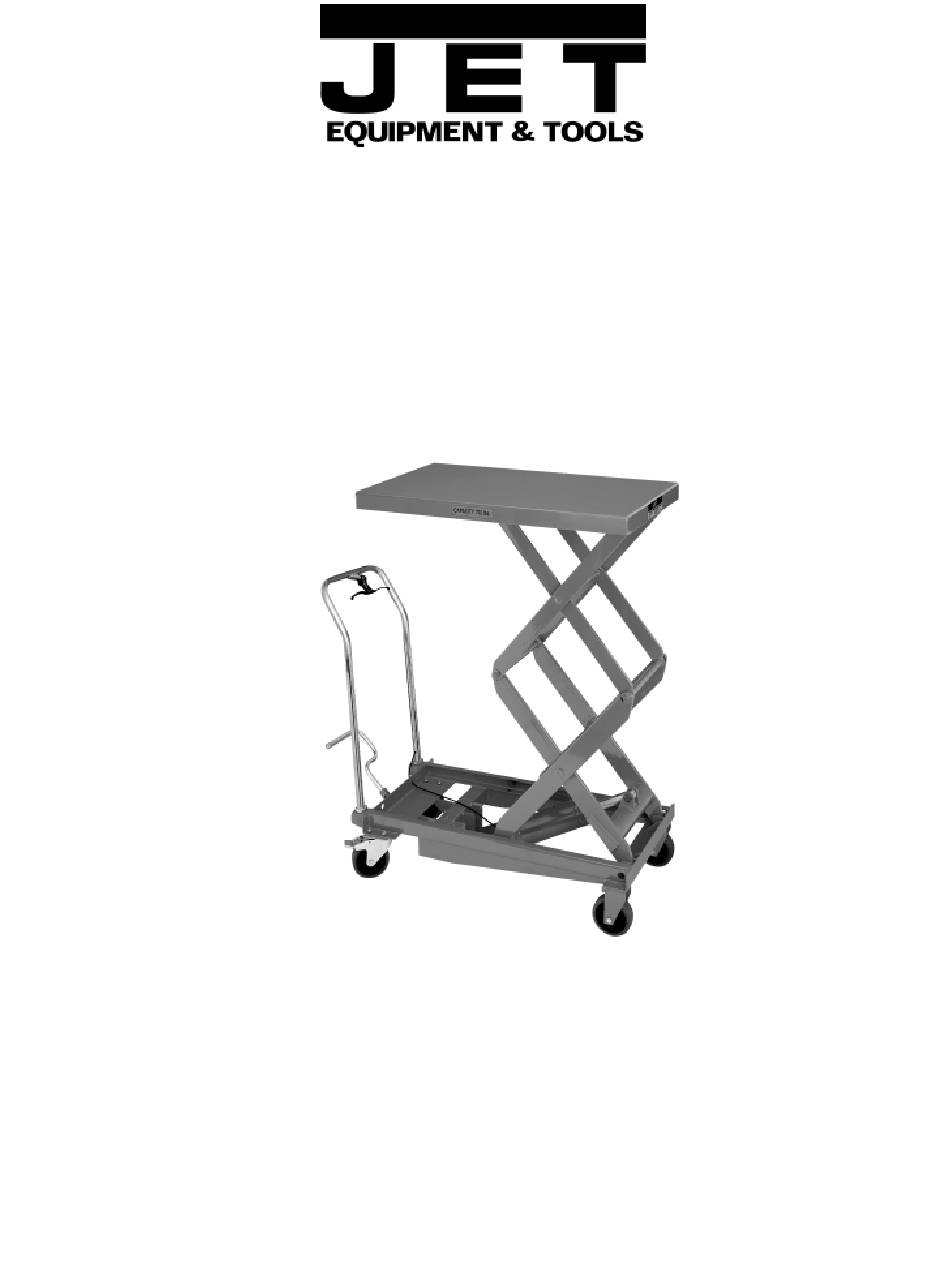

- Page 1 OWNER'S MANUAL DSLT-770 Double Scissor Lift Table JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:253-351-6000 A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840 www.jettools.com e-mail jet@jettools.com M-140778 5/01...
-
Page 2: Replacement Parts
JET’s warranty, then the user must bear the cost of storing and returning the product. This warranty gives you specific legal rights, and you have other rights, which vary, from state to state. JET Equipment & Tools • • • • P.O. Box 1349, Auburn, WA 98071-1349 • • • • (253) 351-6000... - Page 3 Keep hands and feet clear of table when lowering load. Failure to comply with the above warnings may result in personal injury and/or property damage. Specifications: DSLT-770 Stock Number............................140778 Capacity (lbs.) ............................770 Table Size L x W (in.).......................35-5/8 x 20-1/8 Maximum Height (in.) ..........................
- Page 4 2. Attach foot lever (A, Fig. 2) to the lever bracket (B, Fig. 2) with one hex cap bolt, one flat washer, one lock washer (C, Fig. 2). Tighten with a 14mm wrench. WARNING Keep hands and feet clear of table and scissor lift openings while lowering load.
-
Page 5: Troubleshooting
Trouble Shooting Trouble Cause Action Replenish reservoir. No oil in reservoir. Clean lowering valve or steel Lowering valve or steel ball is ball or replace. not seating. Table will not raise. Clean or replace steel ball. Steel ball is not seating. Reload truck within load Relief valve is not adjusted capacity and adjust valve by... - Page 6 Parts Breakdown...
- Page 7 Parts List for the DSLT-770 Hydraulic Scissor Lift Index Part Description Size Qty. 1..DSL770-1......Table....................1 2..DSL770-2......Link Assembly ................1 3..DSL770-3......C-Ring............∅16 ......2 4..DSL770-4......Roller Guide ...................4 5..TS-2360141 ..... Flat Washer........... M16 ......2 6..DSL770-6......Shaft ....................2 7..DSL770-7......
- Page 8 Index Part Description Size Qty. 52 ..TS-1550061 ..... Flat Washer........... M8 ......1 53 ..TS-1540061 ..... Hex Cap Nut..........M8 ......1 54 ..DSL770-54....... Foot Lever..................1 55 ..DSL770-55....... Foot Lever Pad................1 Cylinder Assembly Index Part Description Size Qty. 1A..DSLT770-1A ....Oil Seal*............Ø30 ......1 2A..DSLT770-2A ....
- Page 9 JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:253-351-6000 A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840 www.jettools.com e-mail jet@jettools.com...
