Purpose
The SMG360i(M) – hereinafter the SMG – is a galvanic isolated converter intended for charging batteries.
Installation
Warnings:
The product must only be connected by skilled fitters/mechanics
who are aware of the regulations for working with high battery
voltages.
The product may be damaged if you use inferior connection
material and/or wiring that is too thin.
A short circuit between the positive and negative terminals of the
battery may cause severe damage to your system.
Always use fuses of the correct value.
SMG-1212-360-CM
Switch Mode DC-DC 20A Charger
Galvanic Isolated
intelligent
(MotionDetect)
includes vibration detection
(the SMG can detect whether a vehicle is moving or not)
Very low power consumption
Integrated vibration detection
Wiring diagram
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intellitec SMG-1212-360-CM
Summary of Contents for Intellitec SMG-1212-360-CM

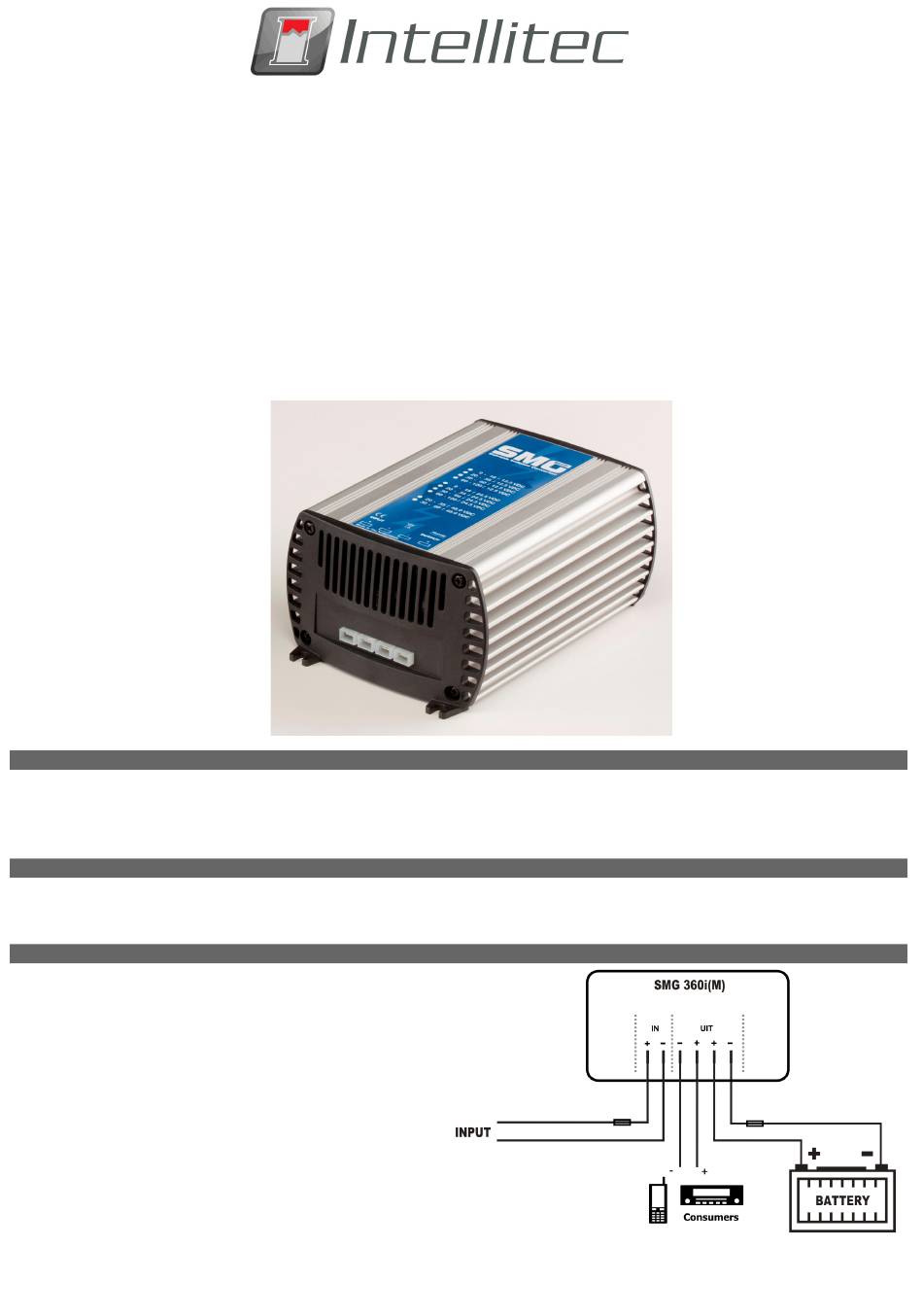

- Page 1 SMG-1212-360-CM Datasheet and Owners Manual Switch Mode DC-DC 20A Charger Galvanic Isolated intelligent (MotionDetect) Features Galvanic isolated input and output Very low power consumption Easy installation Integrated vibration detection Purpose The SMG360i(M) – hereinafter the SMG – is a galvanic isolated converter intended for charging batteries.
