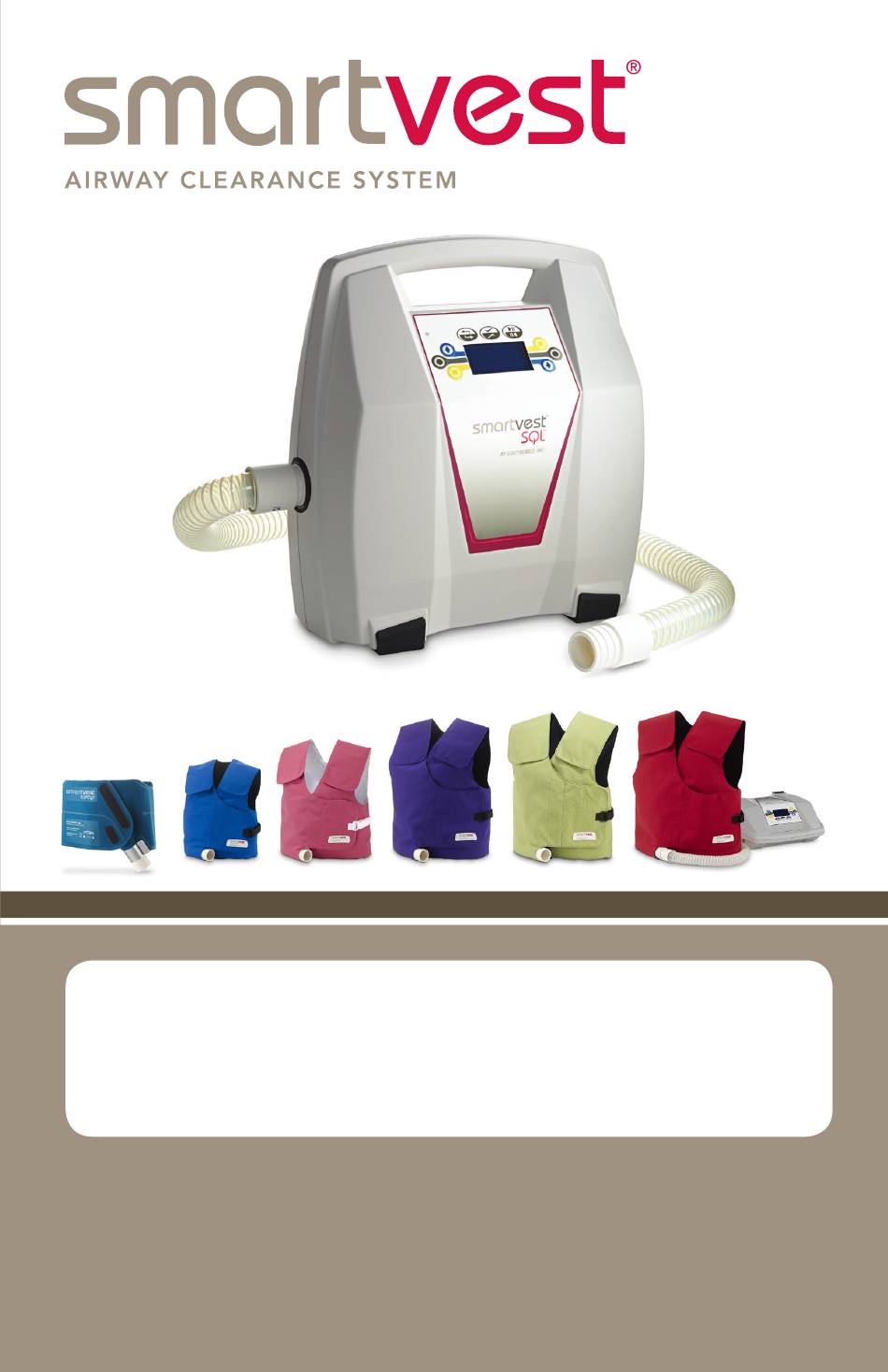

- Page 1 SQL Instruction Manual 090491-S-010 Rev E Making life’s important moments possible — one breath at a time. ® www.smartvest.com...
- Page 3 Please contact Electromed at: (888) 966-2525 or your service representative with questions about the SmartVest Airway Clearance System ® SQL Instruction Manual 090491-S-010 Rev E © 2017 Electromed, Inc.
- Page 5 SmartVest SQL Airway Clearance System Foreword This manual will help you use the SmartVest SQL Airway Clearance System. It is recommended that you read this manual in its entirety before using the system. This manual is not meant to replace your health care provider’s instructions.
-
Page 6: Table Of Contents
Cleaning the Long-Term Use (LTU) SmartVest ............. 9 Removing the Inner Bladder .................. 9 Reinserting the Inner Bladder ................10 Cleaning the Long-Term Use (LTU) SmartVest Wrap .......... 10 Connecting Hose ......................11 SQL Air Pulse Generator ....................12 Powering the Generator .................... - Page 7 Replacing a Filter ..................... 23 Replacing a Fuse ..................... 24 Wheeled Carrier ......................25 Airline Travel ........................26 Airline Travel with the SmartVest System ............26 Airplane Mode ......................26 Troubleshooting ....................... 27 Specifications ........................29 Electromagnetic Compatibility ..................30 Prescription Record ......................
-
Page 9: What Is High Frequency Chest Wall Oscillation (Hfcwo)
20 years. HFCWO, administered by the patented SmartVest , creates a “squeeze and release” action around the chest and torso from 5-20 times per second. The SmartVest inflates and delivers vigorous, yet comfortable, air pulses to the body through a single-hose powered by a programmable air pulse generator. -
Page 10: Safety
Items applied to the SmartVest SQL Airway Clearance System may become choking hazards to unattended at-risk individuals if removed or dislodged. Do NOT apply items anywhere on the SmartVest shell that would come in direct patient contact during use. Keep packaging materials away from babies and children. -
Page 11: Cautions
Use only compatible SmartVest SQL Airway Clearance System components supplied by Electromed. Do NOT staple, sew, or apply any items to the SmartVest shell that could penetrate the inner bladder. Do NOT apply adhesives, tapes, hot glue or hot irons to the SmartVest shell while inner bladder is installed. -
Page 12: Equipment Classifications
IEC 60601-1 (2005); ANSI/AAMI ES60601-1 (2005), CAN/CSA-C22.2 No. 60601-1 (2008). The SmartVest SQL Airway Clearance System meets class II (double insulation) protection against electrical shock. Type BF applied parts: SmartVest and SmartVest Wrap garment(s). -
Page 13: Indications For Use
Indications for use of the SmartVest SQL Airway Clearance System follow the published American Association Respiratory Care (AARC) Clinical Practice Guidelines for Postural Drainage Therapy. For further information regarding indications, contraindications, etc., refer to these Guidelines at:... -
Page 14: Smartvest Airway Clearance System
SmartVest SQL Airway Clearance System The SmartVest SQL Airway Clearance System consists of three primary components - a SmartVest garment, the Connecting Hose, and the SQL Air Pulse Generator. In addition, there are accessories designed to aid in the use of the SmartVest System that are discussed in the following sections. -
Page 15: Smartvest Garments
SmartVest Garments The SmartVest delivers full coverage air pulses to the front, back, and sides of the torso. It is made of a soft, breathable fabric. The SmartVest is available in two styles – the SmartVest and the SmartVest Wrap. -
Page 16: Fitting The Smartvest Wrap
SmartVest Garments NOTE: If the front closure opens during treatment, it can be secured by opening the small strap on the left side of the SmartVest , lacing it through the D ring, and securing it with the Velcro-type closure. -
Page 17: Fitting Accessories
Cleaning the Long-Term Use (LTU) SmartVest The LTU SmartVest is made up of the inner bladder and the outer shell. Special care must be taken to ensure proper function and maintain its appearance. • Always remove the inner bladder before cleaning the vest. The inner bladder may be wiped off with a damp cloth. -
Page 18: Reinserting The Inner Bladder
7. Check the bladder position and readjust the Velcro-type attachments where necessary. 8. Close the zipper. Cleaning the Long-Term Use (LTU) SmartVest Wrap Use the following care when laundering this garment. • Do not machine wash. Spot clean only with a damp cloth and/or stain stick. -
Page 19: Connecting Hose
SmartVest SQL Airway Clearance System Connecting Hose Connecting Hose The single-hose transmits air pulses from the air pulse generator to the garment. The hose connection point is the same on both ends. Therefore, whether connecting to the generator or the garment, the insertion steps are the same. -

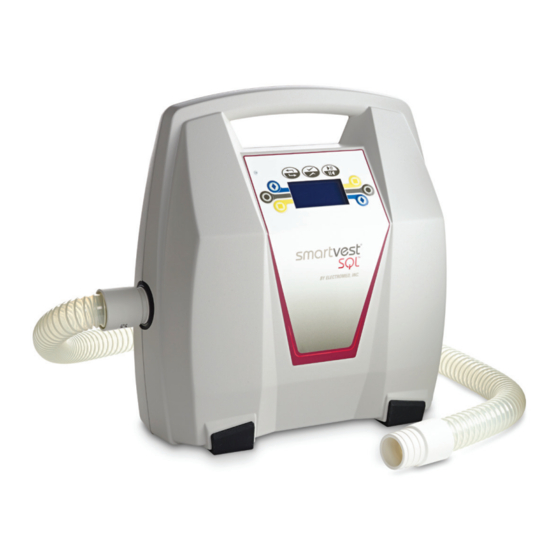

Page 20: Sql Air Pulse Generator
® effect” and “vest creep” on start-up. CAUTION: Do not start the generator until the hose and SmartVest garment are attached to the air pulse generator, as this may cause damage to the unit. The generator is designed to operate in either the upright or horizontal position. -
Page 21: Display And Control Panel Overview
SmartVest SQL Airway Clearance System SQL Air Pulse Generator Display and Control Panel Overview All treatment sessions begin from the Home display of the generator. From Home, you can select an operating mode (Manual, Program (1-3), or Ramp) or learn about System information (Info). -
Page 22: Setting Treatment Protocols
: Intervals per treatment • Setting Treatment Protocols The SmartVest System has three operating modes: Manual, Program (1-3) and Ramp. • In Manual mode you set one prescribed protocol with one interval that you can repeat or adjust each time you perform a treatment. -
Page 23: Setting Manual Mode
SmartVest SQL Airway Clearance System SQL Air Pulse Generator Setting Manual Mode Steps: 1. From the Home screen, press to select the Manual mode. www.smartvest.com... -
Page 24: Setting Program Mode
SmartVest SQL Airway Clearance System SQL Air Pulse Generator 2. To adjust the following settings: • Frequency - Press to the left or right of the frequency display. Adjust in 1 Hz increments from 5 to 20 Hz. • Pressure - Press to the left or right of the pressure display. - Page 25 SmartVest SQL Airway Clearance System SQL Air Pulse Generator 3. To adjust the following settings: • Frequency - Press to the left or right of the frequency display. Adjust in 1 Hz increments from 5 to 20 Hz. • Pressure - Press to the left or right of the pressure display.
-
Page 26: Setting Ramp Mode
SmartVest SQL Airway Clearance System SQL Air Pulse Generator Setting Ramp Mode Steps: 1. From the Home screen, press to select the Ramp mode. 2. Press to select the treatment sequence column. 3. To adjust the following settings: • Time - Press to the left or right of the time display. -
Page 27: Setting A Pause
SmartVest SQL Airway Clearance System SQL Air Pulse Generator 6. Press to save the settings and move to the To: column. 7. To adjust the To settings: • Frequency - Press to the left or right of the frequency display. -
Page 28: Starting The Treatment Protocol
SmartVest SQL Airway Clearance System SQL Air Pulse Generator 3. Press to save these settings. Starting the Treatment Protocol Select the desired treatment protocol (Manual, Program 1-3, Ramp) from the Home screen and follow the steps below. Steps: 1. Press to begin your treatment. -
Page 29: Checking System Information
The time starts at 200 hours and subtracts the Hours Run from when the filter was last changed (see Replacing a Filter). • Electromed Phone Numbers: Need help? Call for assistance. • Version Number: Electromed will ask for this when you call for support. Advanced Settings Setting Lock Use this setting to lock a treatment protocol so that it can’t be accidently... -
Page 30: Setting Save
SmartVest SQL Airway Clearance System SQL Air Pulse Generator Setting Save Use this setting to perform a backup of your system that can later be restored, if needed. Steps: 1. From the Home screen, press 2. Press next to Save. -
Page 31: Routine Care
Routine preventive maintenance requires the air filter to be replaced every six months or every 200 hours, whichever occurs first. A regular slot screwdriver is needed to perform this task. Contact Electromed or your service provider for additional filters. Steps: 1. -
Page 32: Replacing A Fuse
3. Remove the unit’s two fuses. 4. Replace both fuses with supplied 5mm x 20mm 5 AMP, 250 VAC Fast Acting. Contact Electromed or your service provider for additional fuses. NOTE: Bad fuses appear identical to good fuses. Therefore, it is important to discard the old fuses immediately to avoid confusion. -
Page 33: Wheeled Carrier
The one-piece wheeled carrier makes transporting your SmartVest Airway Clearance System easier. The wheeled carrier is durable and designed to transport all components of the SmartVest Airway Clearance System, while the telescoping handle adjusts to your height needs. The wheeled carrier has specific compartments for the SQL Air Pulse Generator, SmartVest garment, connecting hose and supplement kit, which includes the air pulse generator power cord, filters, fuse kits, and training materials. -
Page 34: Airline Travel
It should not be stored away from the airline passenger and should NOT be checked in as baggage on ANY airline. The use of the SmartVest device while on the plane is not allowed due to Federal Aviation Administration (FAA) regulations. -
Page 35: Troubleshooting
In response to various environmental conditions, the generator will display an error message. Understanding these messages will help you quickly troubleshoot the problem. If the suggested actions below do not resolve the issue, contact Electromed or your service provider. Problem is… Display shows…... - Page 36 In rare cases static discharge may cause the display The data on the display to become irregular. To reset the display press does not appear to be in the correct position. Contact Electromed or your service provider for a The vest no longer fits. replacement. www.smartvest.com...
-
Page 37: Specifications
Wrap(s) patient use. An extender is available for those using an adult Extender size SmartVest and requiring additional chest circumference, but not additional height. This accessory provides up to an additional 14 inches (36 cm) of chest coverage. • 100 – 240 V~, 50/60 Hz Electrical •... -
Page 38: Electromagnetic Compatibility
Electromagnetic Compatibility Guidance and Manufacturer’s Declarations – Electromagnetic Immunity The SmartVest SQL Airway Clearance System is intended for use in the electromagnetic environment specified below. The customer or the user of the System should assure that it is used in such an environment. - Page 39 SmartVest SQL Airway Clearance System Electromagnetic Compatibility Guidance and Manufacturer’s Declarations – Electromagnetic Immunity The SmartVest SQL Airway Clearance System is intended for use in the ® electromagnetic environment specified below. The customer or the user of the System should assure that it is used in such an environment.
- Page 40 RF communications equipment and the SmartVest SQL Airway Clearance System. The SmartVest Airway Clearance System is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the System can help prevent electromagnetic...
-
Page 41: Prescription Record
SmartVest SQL Airway Clearance System Prescription Record Prescription Record SmartVest SQL Airway Clearance System Serial # _____________________________ Prescribed Protocols User One ____________ User Two ____________ User Three ____________ Date ________________ Date ________________ Date _________________ ______times/day ______times/day ______times/day ______minutes/treatment ______minutes/treatment ______minutes/treatment... - Page 42 502 Sixth Avenue NW New Prague, MN 56071 www.smartvest.com Made in USA Accredited by ISO 13485 / ISO 9001 Certified The Joint Commission...
Need help?
Do you have a question about the SmartVest and is the answer not in the manual?
Questions and answers

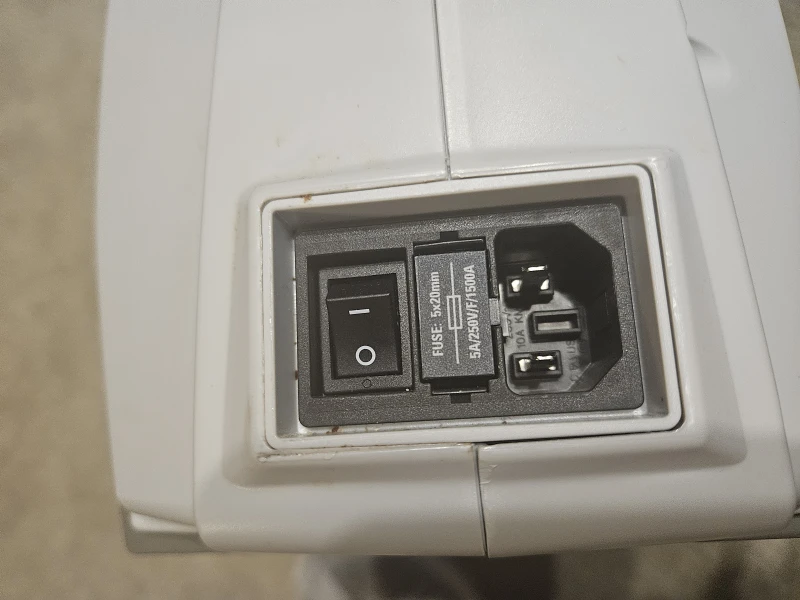

Need a replacement power cord
