Installation Instructions

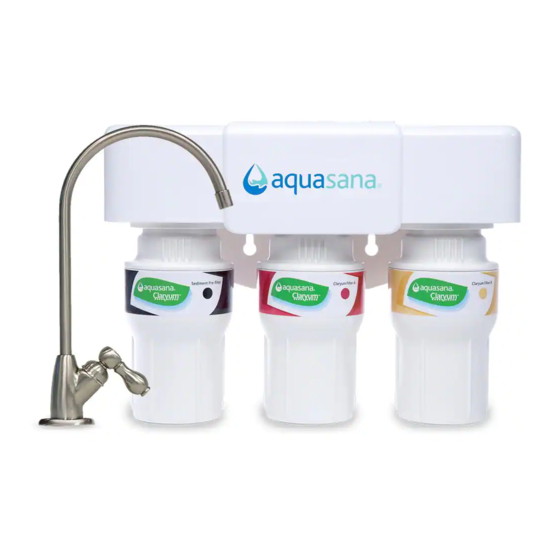

AQ-5100, AQ-5200 & AQ-5300 Under Counter Water Filter
Single Stage (5100), Two Stage (5200) and Three Stage (5300) systems
Welcome to the Aquasana experience. You are about to enjoy clean, healthy water and the
peace of mind that comes from knowing award-winning filter technology is working for you.
Installation must comply with state and local laws.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQ-5100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aquasana AQ-5100

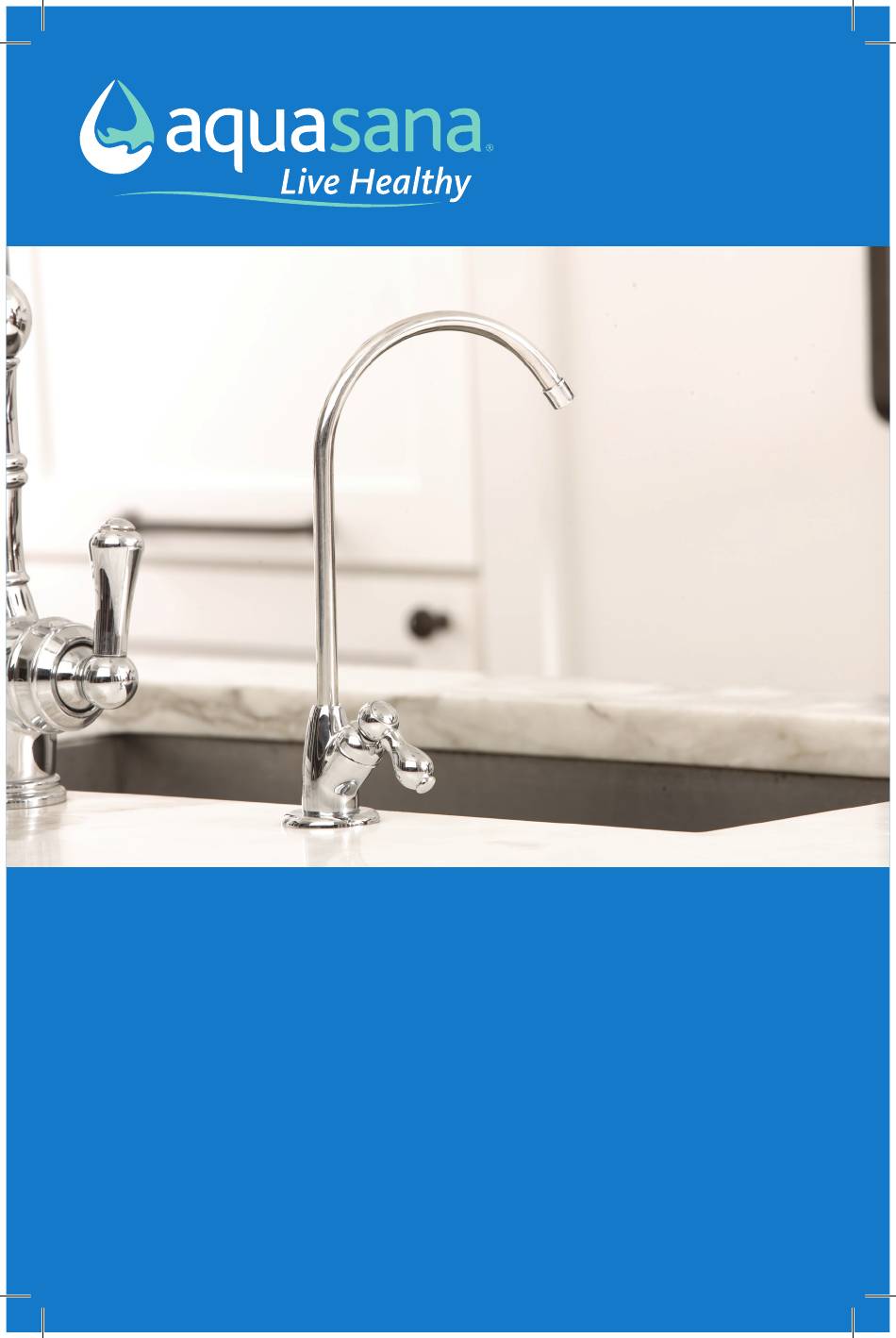

  • Page 1 Single Stage (5100), Two Stage (5200) and Three Stage (5300) systems Welcome to the Aquasana experience. You are about to enjoy clean, healthy water and the peace of mind that comes from knowing award-winning filter technology is working for you.
  • Page 2 The AQ-5200 & 5300 comes in three designer finishes, Chrome, Brushed Nickel and Oil-Rubbed Bronze. The AQ-5100 is only available with the Chrome finish. The faucet may be mounted on the sink using an existing hole for a sprayer nozzle or soap dispenser, or by drilling a hole at least 1/2”...
  • Page 3 Plastic collar (2) Plastic tube insert (1) 3’x1/4” Poly tubing (1) Brass nut (1) Brass tube insert (1) 1/4” Brass Tee (1) AQ-5100 filter unit AQ-5100 Faucet (1) Filter Cartridge (1) Screws with anchors (2) Faucet Rubber Washer (1) Faucet Spacer (1)
  • Page 4 Easy to install Unpack and unwrap contents. Turn off and Attach threaded ends of supplied brass tee disconnect the cold water supply. to the cold water supply line and shut-off valve; tighten using an adjustable wrench. Attach white tube to the brass tee: Slide the compression nut onto the white tubing (with threads of the nut facing the end of the white tube).
  • Page 5 The red LED should flash and beep Center to center hole distances: five (5) times to indicate that the AQ-5100: 41mm battery is installed correctly. AQ-5200: 65mm AQ-5300: 98mm Connect the supply lines: push the Turn the cold water on.
  • Page 6 A Return Authorization Code and a full refund will be promptly issued upon return. Thank you for choosing Aquasana! This filter system is designed and tested for use with genuine Aquasana parts, including replacement filters and all hardware except for the actual faucet.
  • Page 7 • Filter is only to be used with cold water. • If you experience a leak at the hose connection, disconnect and re-seat the hose. • Aquasana is not liable for consequential or incidental damages due to improper installation. AQ-5100...
  • Page 8 Aquasana, Inc. For exclusive deals System tested and certified by NSF 6310 Midway Road facebook.com/aquasana International against NSF/ANSI Standard 42 and 53 for the reduction of Haltom City, Texas 76117 twitter.com/aquasana the claims specified on the Performance 866.662.6885 USA Data Sheet and at www.nsf.org.
