  • Page 3: Table Of Contents

    1.3 DNI Chassis & Passive Card Modules ................. 11 1.3.1 DNI Chassis (Telect Model 010-0000-1402BCS) ..........11 1.3.2 Fully Loaded 19-in. DNI Chassis (Telect Model 010-3224-0402) ......12 1.3.2.1 DNI-3 Card Module (Telect Model 010-3201-0402) ........... 12 1.4 BSCII Active Card Modules ..................12 1.4.1 Repeater Card Modules ..................13...
  • Page 4 4.4 Service ..........................35 4.4.1 In-Warranty Service ....................35 4.4.2 Out-Of-Warranty Service ..................36 4.5 Repacking For Shipment ....................36 © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 5 Figure 9 - 23-inch Chassis with 24 Card Module Slots ............8 Figure 10 - 10-Module, 23-inch Horizontal Chassis ............. 8 Figure 11 - 8-Module, 19-inch Horizontal Chassis (Telect Model 010-0000-0471BCS) ..9 Figure 12 - 8-Module, 19-inch Horizontal Chassis ............... 9 Figure 13 - DSX Cross-Connect Modules (Mini-Weco Front Jacks) ........

  • Page 6: Chapter 1: Description

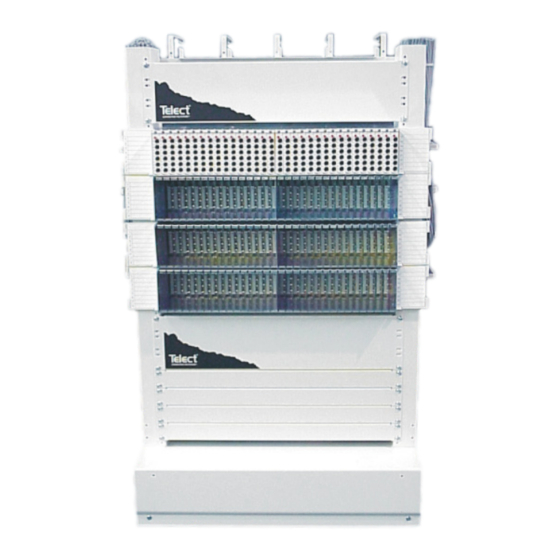

    Figure 1 - 23-inch, 32-circuit BCSII With 6-Port DSX Card Modules The Telect Broadband Connectivity System II (BCSII) is a family of related products providing a high-density environment for cross-connecting and interconnecting DS3, STS-1, E-3, STM-1, and STS-3 signals from broadband equipment such as digital radio, multiplexers and 3:3 or 3:1 DCS.

  • Page 7: Figure 2 - Dsx Modules

    Vector OTM Module Simplex Repeater Module Duplex Repeater Module Figure 3 - Other Modules © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 8: Capabilities

    Broadband Connectivity System II Copper :: Part Number 117389-4 1.1.1 Capabilities The Telect DSX-3 system enables patching, cross-connecting, interconnecting, test and monitor functions for digital signals in 75 ohm systems for the following bit rates: 34.368 Mbps 44.736 Mbps STS-1 51.84 Mbps...

  • Page 9: Dsx Chassis & Passive Card Modules

    1.72/4.37 x 7.59/19.38 x 10, horizontal 010-0000-1471BCS 23.00/58.43 1.72/4.37 x 7.59/19.38 x 8, horizontal 010-0000-0471BCS 19.00/48.26 © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 10: Figure 4 - 23-Inch Dsx Chassis (Telect Model 010-0000-3201Bcs)

    Broadband Connectivity System II Copper :: Part Number 117389-4 Figure 4 - 23-inch DSX Chassis (Telect Model 010-0000-3201BCS) Tracer Lamp Spring Clamp Connector Legend BATT BATT 8 - 32 Stud & Nut for Ground Lug BATT BATT 5A MAX -48V Figure 5 - 23-inch DSX Chassis - Rear View Showing BNC Connectors ©...

  • Page 11: Figure 6 - 19-Inch Dsx Chassis (Telect Model 010-0000-2401Bcs)

    Broadband Connectivity System II Copper :: Part Number 117389-4 Figure 6 - 19-inch DSX Chassis (Telect Model 010-0000-2401BCS) Tracer Lamp Spring Clamp Connectors 8 - 32 Stud & Nut for Ground Lug Legend BATT BATT 5A MAX BATT BATT -48V Figure 7 - 19-inch DSX Chassis - Rear View Showing BNC Connectors ©...

  • Page 12: Figure 8 - 23-Inch Chassis With 24 Card Module Slots

    Copper :: Part Number 117389-4 Figure 8 - 23-inch Chassis with 24 Card Module Slots (Telect Model 010-0000-1401BCS) © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 13: Figure 9 - 23-Inch Chassis With 24 Card Module Slots

    Broadband Connectivity System II Copper :: Part Number 117389-4 Figure 9 - 23-inch Chassis with 24 Card Module Slots (Telect Model 010-0000-1401BCS) 8 - 32 Stud & Nut for Ground Lug Tracer Lamp Spring Clamp Connectors ALARMS Figure 10 - 10-Module, 23-inch Horizontal Chassis — Rear View Showing BNC Connectors ©...

  • Page 14: Fully Loaded Dsx-3 Chassis

    Broadband Connectivity System II Copper :: Part Number 117389-4 Figure 11 - 8-Module, 19-inch Horizontal Chassis (Telect Model 010-0000-0471BCS) 8 - 32 Stud & Nut for Ground Lug Tracer Lamp Spring Clamp Connectors ALARMS Figure 12 - 8-Module, 19-inch Horizontal Chassis — Rear View Showing BNC Connectors 1.2.2 Fully Loaded DSX-3 Chassis...

  • Page 15: Dsx Passive Card Modules

    Figure 13 - DSX Cross-Connect Modules (Mini-Weco Front Jacks) Number of Ports Telect Part Number 010-3201-0407 010-3201-0401 010-3201-0410 © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 16: Dni Chassis & Passive Card Modules

    The following illustration shows Telect’s 23-in. DNI chassis. Telect’s DNI-3 chassis does not have a power backplane. The chassis has rear external BNC I/O connectors for use with DNI card modules. Although only passive DNI card modules are used in DNI chassis, the DNI card modules can also be used in the DSX chassis.

  • Page 17: Fully Loaded 19-In. Dni Chassis (Telect Model 010-3224-0402)

    1.3.2 Fully Loaded 19-in. DNI Chassis (Telect Model 010-3224-0402) The fully loaded 19-in. DNI chassis includes the following: • DNI rear labeling (NE-1 I/O, NE-2 I/O) • 24 DNI cards installed in a 19-in. Telect DNI-3 chassis • BNC Rear I/O connectors • Mini-Weco front jacks 1.3.2.1 DNI-3 Card Module (Telect Model 010-3201-0402)

  • Page 18: Repeater Card Modules

    All fiber optic connectors are located at the front of the modules. Telect manufactures both single-mode and multimode converters with either ST or SC connectors. A hardened version of the single mode optical/electrical converter with SC connectors is suitable for extended temperature operation.

  • Page 19: Power Distribution

    (PDP) to ensure power availability in case one power feed fails. One appropriate PDP for this application is Telect Model 06004-11, shown in the following illustration. Model 06004-11 is a dual-feed GMT PDP with 20 fuse positions per side and a total output load capability of 20A.

  • Page 20: Specifications

    Thermal Limits (Active): -55°C to +85°C, non-operating; 0°C to +50°C, operating Thermal Shock: per MIL-STD-202, method 107D Humidity: 0% to 95%, operating and non-operating © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 21: Chapter 2: Installation

    CAUTION! Only qualified technicians may install and maintain his product. These instructions presume you have verified that the Telect equipment being installed is compatible with the rest of the system, including power, ground, circuit protection, signal characteristics, equipment from other vendors, and local codes or ordinances.

  • Page 22: Computer Floor Issues

    • BNC crimpers for constructing BNC connector ends. Die sets required, depending on cable. • BNC insertion tool, Telect PN 097197. 2.2 Inspection Compare the contents of the shipping container with the packing list. Call Telect or your distributor if you are missing anything. Telect is not liable for shipping damage.

  • Page 23: Figure 21 - Mounting Chassis To Rack

    NOTE: If installing active card modules, check the installation instructions included with those modules before installing them in the chassis. Some active modules, such as repeaters, require jumper setting selections. © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com...

  • Page 24: Figure 22 - Installing A Module

    5. Slide the card modules along the guides in the chassis and press into backplane connectors in the rear of the chassis. Secure the cards with the captive screw. Figure 22 - Installing a Module © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 25: Figure 23 - Grounding The Chassis

    • NE I/O cables connect to the lower I/O connectors on the chassis. Use a BNC insertion tool. Figure 24 - BNC Insertion Tool © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 26: Figure 25 - Connections

    11. Use cable ties along the upper tie-down bar to restrain the X-connect cables. Figure 25 - Connections © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 27: Figure 26 - Rear Cross-Connect Cables With Tracer Wire

    Broadband Connectivity System II Copper :: Part Number 117389-4 Figure 26 - Rear Cross-Connect Cables with Tracer Wire © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 28 Broadband Connectivity System II Copper :: Part Number 117389-4 This page intentionally left blank. © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 29: Chapter 3: Electrical Operation

    Power from Distribution Panel Tracer Lamp Figure 27 - Power from Distribution Panel to Front Tracer Lamp © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 30: Tracer Lamps (Tl)

    1 (NE-1) to the IX (X-IN) for network element 2 (NE-2), AND connect the OX port for NE-2 to the IX port from NE-1. See the diagrams below © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com...

  • Page 31: Figure 29 - Schematic Drawing Of Cross-Connection

    Figure 29 - Schematic Drawing of Cross-Connection Figure 30 - Rear Cross-Connect Cables with Tracer Wire © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 32: Dsx Card Front Patch

    See information included with modules for selecting options. Figure 32 - Simplex Repeater © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 33: Figure 33 - Repeater Application Using Two Simplex Repeaters

    The simplex repeater, ALWAYS USED IN PAIRS, can drive DS3 output via ATT 734A cable to a network element receiver port (or another repeater) up to 900 ft (274 m) away. Contact your distributor or call Telect at 800-551-4567 for more information.

  • Page 34: Duplex Repeater Card

    Like a pair of simplex repeaters, a single duplex repeater can drive DS3 output via ATT 734A cable to a network element receiver port (or another repeater) up to 900 ft (274 m) away. Contact your distributor or call Telect at 800-551-4567 for more information.

  • Page 35: Dni Operations

    3.4 DNI Operations 3.4.1 Basic Function: Digital Network Interconnection Telect’s DNI-3 card provides an interconnection between two network elements (NE-1 and NE-2) and allows temporary access for testing and monitoring. The DNI chassis uses only one DNI-3 card per circuit. The DNI card does not have crossconnect capability for circuit reconfiguration.

  • Page 36: Interconnect Network Elements Using Dni Cards

    NE-1 output signal NE-1 OUT Monitor Figure 40 - DNI Card Monitoring © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 37: Dni Patching

    Figure 41 - Patching Between DNI Card Modules © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 38: Skeleton Bay Options

    Figure 42 - Reference Schematic for DNI-3 Card Module (Model 010-3201-0402) 3.5 Skeleton Bay Options Telect offers several options for configuring bays in your lineup. Please consult your distributor or visit our website at Telect.com. © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com...
  • Page 39 Broadband Connectivity System II Copper :: Part Number 117389-4 This page intentionally left blank. © Telect, Inc., All Rights Reserved, 117389-5 A0 1.509.926.6000 :: telect.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 40: Chapter 4: Service

    Contact your Telect equipment distributor, or call a Telect Customer Service Representative: 1-800-551-4567 1-509-926-6000 Telect will repair or replace defective products within the limits of the warranty. See “Repacking for Shipment” in this section. Call a Customer Service Representative for a Return Material Authorization (RMA) before returning any equipment.
  • Page 41 Copper :: Part Number 117389-4 4.4.2 Out-Of-Warranty Service The procedure for out-of-warranty service is the same as for in-warranty service, except that Telect charges a processing fee, and you must submit a Purchase Order along with a Return Material Authorization (RMA) before returning equipment.
  • Page 42 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
