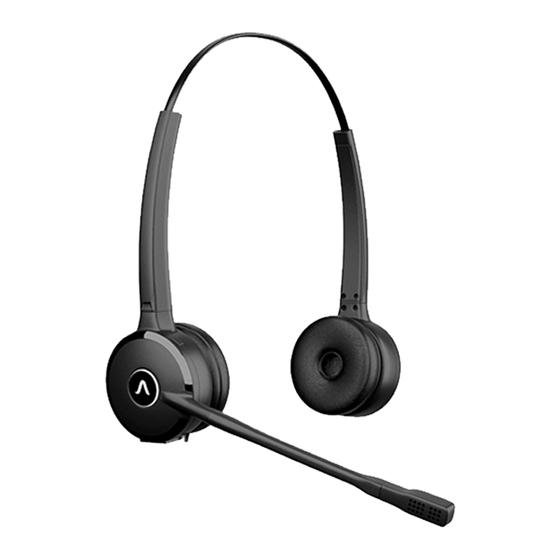

Axtel PRIME X1 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
THE NEW GENERATION OF PROFESSIONAL HEADSETS
PRIME X1 / X3
INSTRUCTION MANUAL
www.axtelheadsets.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIME X1 and is the answer not in the manual?

Questions and answers

Related Manuals for Axtel PRIME X1

Summary of Contents for Axtel PRIME X1

  • Page 1 THE NEW GENERATION OF PROFESSIONAL HEADSETS PRIME X1 / X3 INSTRUCTION MANUAL www.axtelheadsets.com...

  • Page 2: Table Of Contents

    Contents 1. Welcome remarks..........................3 2. Content of the package ........................5 3. Possibility to wear the headset ....................7 4. Charging ............................. 7 4.1 Connecting to a power supply source ........................ 7 4.2 Charging the headset ..............................8 4.3 Status of the battery ..............................

  • Page 3: Welcome Remarks

    1. Welcome remarks Thank you for buying our product. We hope you will be fully satisfied with the Axtel headset that you have purchased. Depending on the needs, you can choose a version that only connects to a landline phone (X1) or an expanded version with the possibility to make calls on three different communication channels (X3).
  • Page 4 85 dB, 87 dB, or 105 dB. • When you feel discomfort caused by direct contact of the device with the skin, stop using the headset and contact Axtel Headsets. Continued use of the headset may result in allergic reactions, such as redness or rash.

  • Page 5: Content Of The Package

    2. Content of the package PRIME X1 Earpiece Earpiece DUO version MONO version Control-charging base Protective cover RJ/RJ connecting cable 12 V power supply www.axtelheadsets.com AXT/2019/IN...
  • Page 6 PRIME X3 Earpiece Earpiece DUO version MONO version Control-charging base Protective cover USB connecting cable RJ/RJ connecting cable 12 V power supply AXT/2019/IN www.axtelheadsets.com...

  • Page 7: Possibility To Wear The Headset

    3. Possibility to wear the headset The Axtel headset can be worn with the microphone on the right side or the left side. 3.1. Mono version 3.2. Duo version 4. Charging 4.1 Connecting to a power supply source In order to start the base station, use the power supply provided.

  • Page 8: Charging The Headset

    4.2 Charging the headset In order to charge the headset, first place the earpiece in the docking station connected to a power supply source. The headset can be in operation for up to 10 h. Charging of the headset takes 3 h. Charging time from 0% to 100% - 3 h Standby time - from 100% to 0% - 23 h 30 min.

  • Page 9: Status Of The Battery

    4.3 Status of the battery Earpiece on the base - Charging: 0% to 20% 20% to 40 % 40% to 60 % 60% to 80 % 80% to 99 % 100% 4.4 Status of the battery Earpiece outside of the base - Discharging: 100% to 80% 80% to 60% 60% to 40%...

  • Page 10: Pairing

    Mobile Phone button. Then switch on the Bluetooth function in the mobile phone and then connect the phone to “Axtel Prime X3. ” No access code is required. Completion of pairing is indicated by the blue Mobile Phone pictogram flashing three times. Correct pairing is indicated by the Mobile Phone pictogram backlit in white.

  • Page 11: Operation

    6. Operation 6.1 Description of the earpiece Most important components of the earpiece Adjustable headband Flexible microphone VOLUME DOWN button VOLUME UP button Decreases the volume in the earpiece Increases the volume in the earpiece Multifunction MFB button 1 s. switch on the earpiece Docking port 5 s.

  • Page 12: Description Of The Base Station

    6.2 Description of the base station Control-charging base Most important components of the base: FRONT Docking port Place to put the headset Headset battery for charging charging status Buttons to switch between channels with icons: pictograms of inactive channels are not illuminated 1.

  • Page 13: Led Light And Sound Signals Of The Earpiece And The Base Station

    BACK Power supply socket connecting the receiver connecting the power of a landline phone supply Micro USB Adjustment buttons Connecting RJ45 a landline microphone sensitivity socket for phone remote receipt Polarization switch Changes the polarization of the RJ9 outlet for a landline phone 6.3 LED light and sound signals of the headset and the base station Earpiece Switching on the earpiece...
  • Page 14 Base Switching on Switch on/standby Information about lack of connection outside of the base Earpiece outside of the base - active call Active connection with the earpiece Incoming call Active call Call on hold Listening Pairing the earpiece Bluetooth pairing USB connection Collecting a Deskphone call Collecting a Softphone call...

  • Page 15: Operation Of Multiple Devices

    7. Operation of multiple devices 7.1 Switching between channels By pressing the MFB button and holding it for about 2 seconds, you can switch between channels. During an active call, when a call from another channel is collected, the active call is put on hold and the newly collective call becomes active.
  • Page 16 THE NEW GENERATION OF PROFESSIONAL HEADSETS CONTACT sales@axtelheadsets.com Axtel Headsets contact@axtelheadsets.com support@axtelheadsets.com www.axtelheadsets.com feedback@axtelheadsets.com www.axtelheadsets.com...

This manual is also suitable for:

Prime x3
