Summary of Contents for Lubell Labs LL916

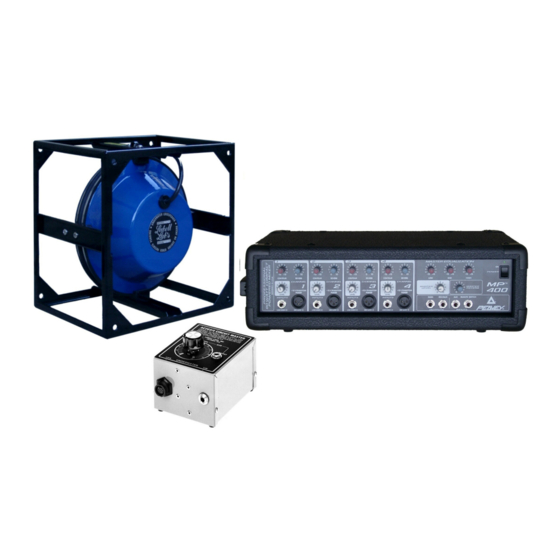

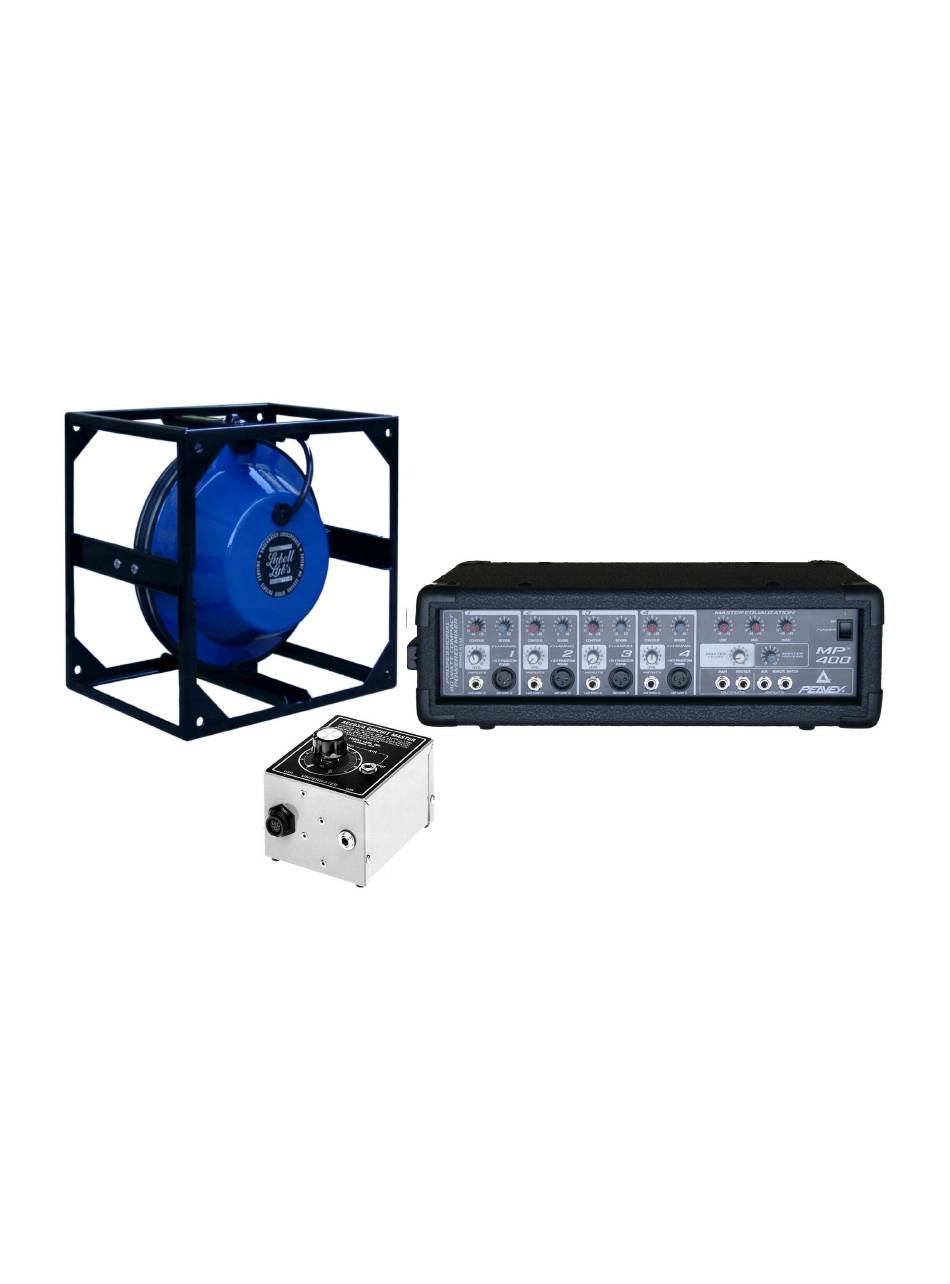

- Page 1 INSTRUCTION BOOK FOR LUBELL SKU#9481 LL916 BASIC SYSTEM LUBELL LABS INC. 21 NORTH STANWOOD ROAD COLUMBUS, OHIO 43209 U.S.A. (614) 235-6740...
- Page 2 TABLE OF CONTENTS TOPIC: PAGE: TABLE OF CONTENTS ....1 SYSTEM THEORY & DESCRIPTION ..2 SPECIFICATIONS: LL916C3 UW SPEAKER..3 SPECIFICATIONS: AC203/4 CIRCUIT MASTER .
- Page 3 8 ohm air speaker (LL6T, SX80, or Impulse 100), a side mounted .250” LL98 output jack for a Lubell LL98 U/W speaker, and a side mounted 3-pin LL916 output jack for a lubell LL916C3 U/W speaker. (Only one speaker and air speaker may be connected at a time.) The...
- Page 4 Dimensions: LL916 Speaker ....9.00” diameter x 5.50” axial length Cage(HWD) ....10.750” x 10.750” x 7.750”...
- Page 5 Lubell AC203/4 Circuit Master’s side jack. Allow sufficient slack in this cable, route neatly across deck and LL916 UW SPEAKER cover with a cord protector or rubber mat to prevent trips and damage. 4. Using a Lubell SPC1 Resistive Summing Patch Cord (dual male to 0.250”...
- Page 6 7. Now that all equipment is connected, pre-set controls as follows: Boom-box to 5; VOLUME Peavey MP400M control to 5, and CHANNEL 2 & 3 LEVEL control to 0; CHANNEL 1 LEVEL Peavey MP400M , and controls to 0; Peavey MP400M CONTOUR, LOW HIGH MASTER...
- Page 7 SYSTEM APPLICATION These remarkable sets are state-of-the-art. Many engineers and scientists working in the field of underwater acoustics are still unaware of the feasibility of compressing the size of a low-frequency transducer without reducing it’s efficiency; or of the feasibility of driving a piezoelectric transducer over broad-band frequencies using common transistor amplifier circuitry.
- Page 8 During this warranty period, the obligation of Lubell Labs is limited to repairing or replacing, as Lubell Labs may elect, any part or parts of such product which after examination by Lubell Labs discloses to be defective in material and/or workmanship.
