Summary of Contents for XP-PEN Star 05

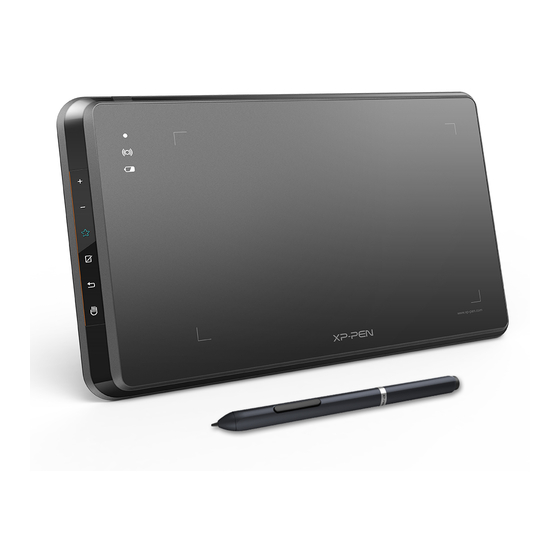

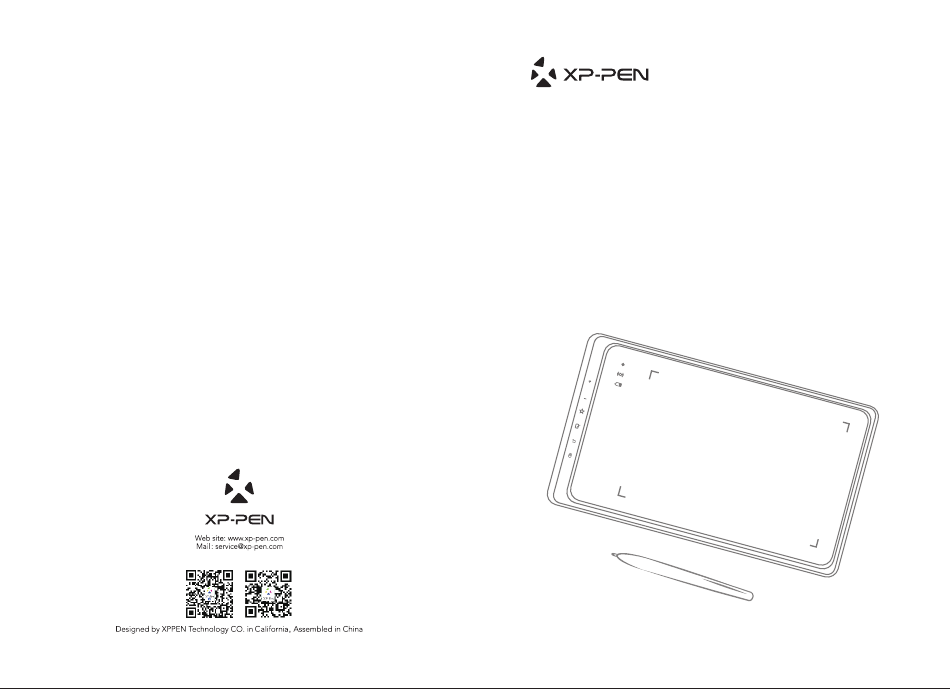

- Page 1 Graphic Pen Tablet Star Manual Windows 10,8,7 and Vista Mac 10.7 or above Please contact us with any questions www.xp-pen.com...
-
Page 2: Table Of Contents
VII.FAQ a.I can’t use the stylus to control the cursor. b.The Star 05’s response time is slow during wireless USB use. c.How do I know that the Star 05 driver installed successfully? d.How do I determine if a problem is software or hardware related? -
Page 3: Product Overview
{I.Product Overview} b. Working area a.Overview 127mm 203.20mm Image 1-2: Working area {II.Stylus pen} reset a.Overview Image 1-1: Overview (1). USB plugin (2). Status indicator light a) Blinking light: Stylus is in range of, but not touching, the working area. b) Solid light: Stylus is touching the working area. -
Page 4: B.replacing The Pen Tip
05 driver. Other tablet drivers will conflict with the Star 05 driver or prevent installation entirely. (3) You may install the Star 05 driver with the included CD or download the latest driver version from the XP-Pen website (www.xp-pen.com). If you... -
Page 5: B.corded Usb
(2). Turn the tablet off and back on with the power switch on the back. b.Corded USB (1). Connect the Star 05 to your computer with the included USB cable. (2). Switch the tablet on. reset Image4-4: Sleep mode {V.Driver Settings UI} a.Windows... - Page 6 2.Tablet The Star 05 driver will automatically detect dual monitors. Your tablet can be used horizontally across both monitors. Image5-2: Tablet (1).The “Tablet” tab displays basic information about the Star 05. Image5-4: Example of a dual-monitor setup (2).Tablet PC support can be toggled on and off here. Enabling this will allow support for Windows Ink.
- Page 7 (2).Internet The stylus pen’s barrel buttons can be programmed to open a specified web address. Image5-6: The Pen Button tab In the Pen Button tab, you may customize the functions of the pen’s barrel buttons by selecting the button name from the top menu and assigning your desired command under “Mouse Command.”...
- Page 8 In the Work Area tab, you may adjust the tablet’s on-screen working area to your preferred size and location. In this tab, you may edit the functions of the Star 05’s touch keys. Width (X) & Height (Y): Indicates the current height and width of the tablet’s on-screen working area. You may type exact dimensions here.
-
Page 9: B.mac
Here, you may edit the list of functions that the Handy Key will cycle through. Move To open the Star 05’s driver settings, open Finder > Applications > PenTabletSetting. a function to the left to enable it, or to the right to disable it. - Page 10 In the Pen tab, you may choose your preferred functions for the stylus pen’s barrel This tab displays the current version of your driver software. buttons from a list. You may also test the Star 05’s pen pressure and adjust its sensitivity. Higher pressure creates a thicker line. Lighter sensitivity means that digital pressure level will rise with less applied physical pressure.
- Page 11 User defined actions: In the Express Keys tab, you may choose your preferred functions for the Star 05’s touch keys from a list. (3).Application NOTE: The Star 05’s touch keys can be programmed to open specified programs or Do not edit the K1 key—doing so will disable the “+” and “-“ keys.
-
Page 12: Vi.driver Uninstallation
Allocates buffer space along the outside borders of your on-screen working area. Working Area Orientation: Allows the tablet to be switched between right or left-handed use. Image5-24: Internet (6).Mouse The Star 05’s touch keys can be programmed to function as standard mouse buttons. Image5-26: Scope { I.Driver Uninstallation} Image5-24: Mouse 5.Scope... - Page 13 When functioning properly, the white status indicator light will light up when the stylus pen is in range of or touching the tablet’s working area. If the light does not turn on under these conditions while the Star 05 is powered ON, you may be experiencing a hardware issue.
