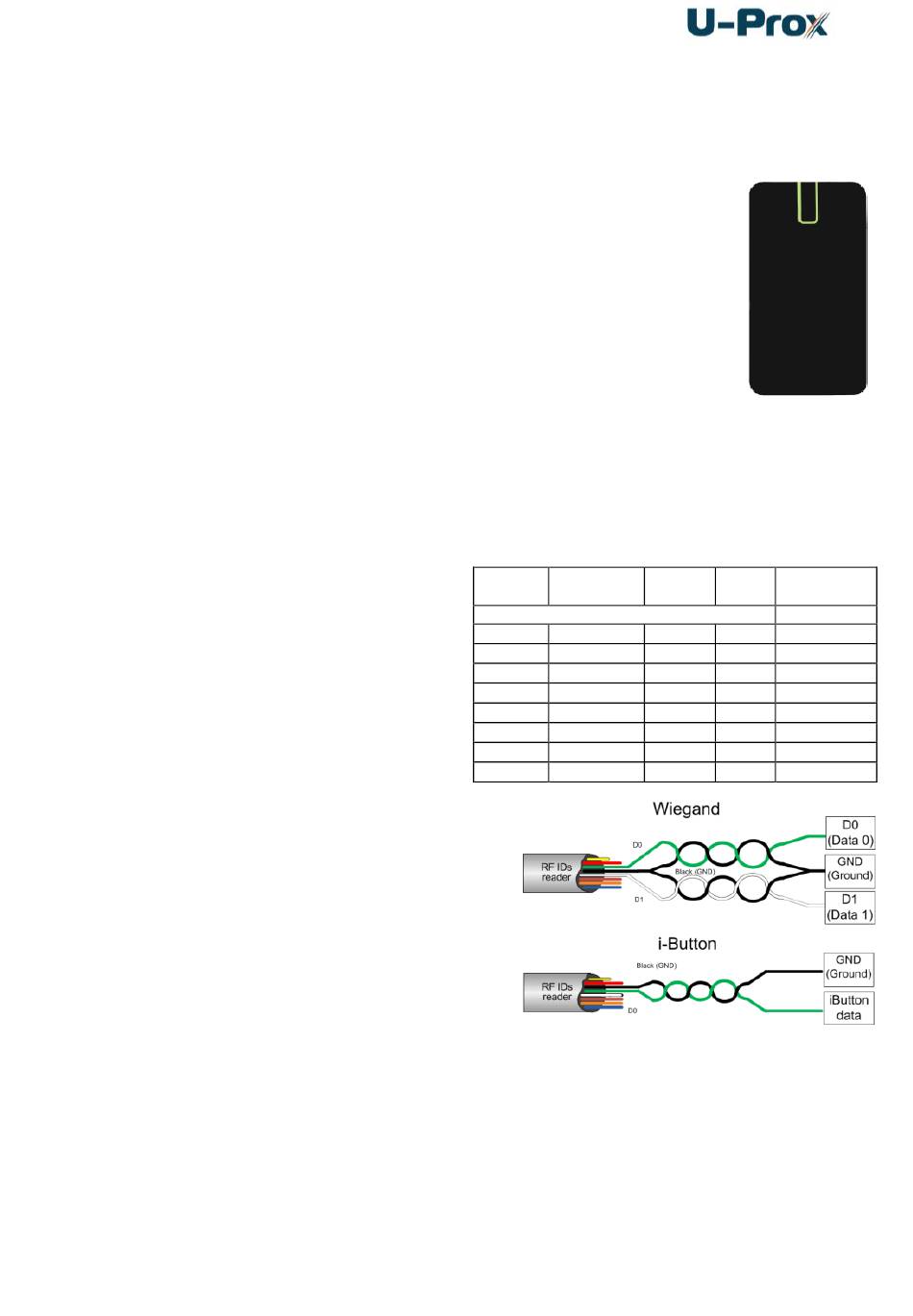

U-Prox mini MF User Manual

Integrated Technical Vision Ltd.
for mobile, Mifare® and Mifare®Plus identifiers
Introduction

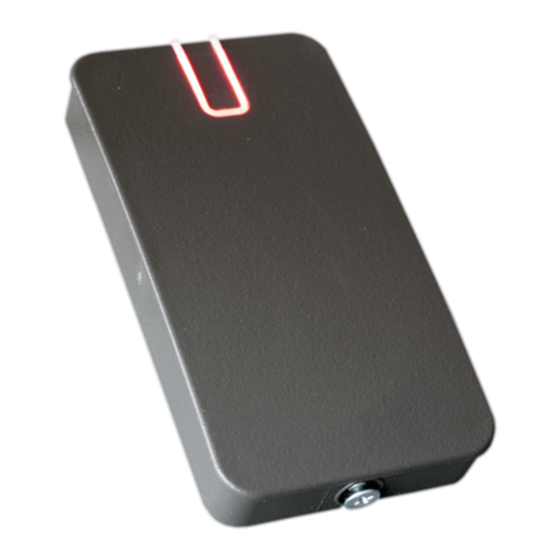

U-Prox mini MF reader is intended to be applied in different access control
systems, using RS232, Wiegand 26, Wiegand 32, Wiegand 34, Wiegand 37,
Wiegand 40, Wiegand 42, Wiegand 56, Wiegand 58, Wiegand 64, Wiegand auto
and TouchMemory interface. The direct and reverse ID bytes order supported.
Personification of mobile and Mifare® identifiers is supported by setting an
additional secure mode.
Reader supports 2 operation mode for smartphones with U-Prox ID:
–
"Door" - up to 60-70 cm
–
"Barrier/Gate" - adjustable range of interaction from 1 to 15 m.
Identifiers types
U-Prox mini MF proximity reader operates with various kinds of Mifare
SL3 modes), MIFARE
MIFARE Classic 4k, MIFARE CLASSIC 7UID and/or U-Prox IDs.
The adjustment of the reader, its interface and identifiers' type settings is provided with mobile
application. The reader can be programmed to operate with Mifare
Design
The reader has
enclosure with IP66 class.
Benefits
Case Material
Color
Dimensions
Weight
Ambient Oper. temp.
Conditions Humidity 100% rel. at +25
Power Voltage
Supply Max current up to 80 mA
Voltage ripple up to 500 mV
Read range
Typical read range is 50 mm and depends on tag
type used and installation environment.
Wiring
R
eader has 8 wire cable for connecting to access
control panel. The reader terminal functions are
listed in the table above (+V - external source +12
V): We recommend to use multi-core signal cable
2
with 0.22 mm cross-section of each wire between
reader and panel.
minimum distance to panel is up to 150 m (Wiegand interface) with this cable.
Refer to the Figure 1 for twisted pair reader connection to the panel.
Types of interfaces
Depending on modification, reader supports one of the following interfaces: Wiegand 26, 32, 34, 37,
40, 42, 56, 58, 64 or standard with automatic selection (W26, W32, W34, W37, W40, W42, W56, W58,
W64), RS-232C (RS), enhanced encrypted RS Pro protocol or TouchMemory.
A programmable reader
U-Prox mini MF
User manual
®
Standard, MIFARE
elegant plastic sealed
ABS plastic
black, gray, white
42,8х80х12,5 mm
70 g
-35°C . . . +60°C
0
C
+9. . . +15 VDC
p-p
®
Ultralight, MIFARE DESFire, MIFARE CLASSIC 1k,
®
Colour W2 / W3 /
W4 / WS
Functions
Green Data 0
White Data 1
Red +V
Black GND
Brown Red Led
Orange Green Led
Blue Beep
Yellow Hold
® cards: Mifare® Plus (SL1 and
and/or U-Prox ID.
RS232 DB-9 Touch
Memory
Rx 3 iButton
Tx 2
-
+V +V
GND 5
GND
- Red Led
-
Green Led
- Beep
Hold Hold
Figure 1
1
