U-Prox mini User Manual

Integrated Technical Vision Ltd.
Introduction
The proximity reader U-Prox-mini is intended to be applied in
different access control systems, using RS232, Wiegand 26,
Wiegand 37, Wiegand 42, Wiegand auto and Touch Memory
interface.
The interface type is to be changed by special PC program. If you
need to change the interface type please call your distributor.

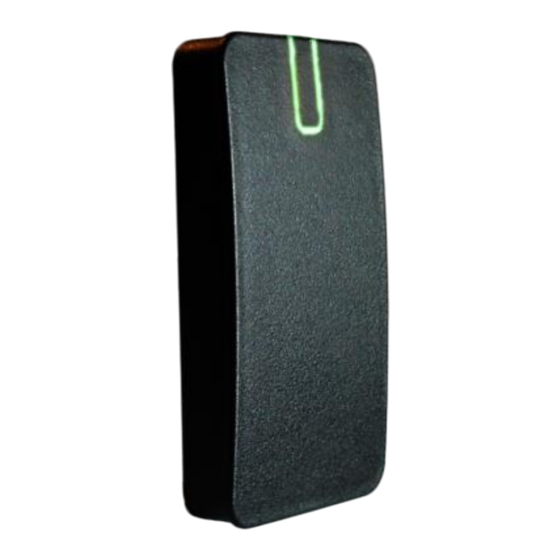

The reader is placed in elegant plastic case with two color LED
indicator on front panel.
Types of cards
Integrated Technical Vision ltd manufactures readers operating with
amplitude modulation (ASK) and/or frequency modulation (FSK)
proximity cards and tags.
Benefits
Case
Material
Color
Dimensions
Weight
Ambient Conditions
Oper. temp.
Stor. temp
Humidity
Electrical
Voltage
Current
Max current
Voltage ripple
Distance of reading
Typical reading distance is 50-100 mm and depends on tag type used with it.
Wiring
Reader has 8 wire cable for connecting to the access control panel.
Table 1. The wires assignment.
Color
Green
White
Red
Black
Brown
Orange
Blue
Yellow
AWG22 multiwire signal cable is recommended. Using this cable the maximum length of
150 meters can be obtained
*
Not for RS232 interface
http://www.itvsystems.com.ua
U-Prox-mini proximity reader
User manual
ABS plastic
black, gray, white
80 х 45 х 12,5 mm
70 g
-35°C . . . +60°C
-30°C . . . +80°C
100% rel. at +25
+4,75. . . +16 VDC
up to 30 mA
up to 50 mA
up to 500 mV
W2 / W3 / W4 / WS
Data 0
Data 1
+V
GND
Red Led
Green Led
Beep
Hold
*
.
0
C
.
p-p
RS232 (reader)
Function
Rx
Tx
+V
GND
-
-
-
Hold
DB-9 (computer)
3
2
5
1
