Key Digital KD-BYOD4K Quick Start Manual

4k kdplay wireless presentation gateway
Hide thumbs Also See for KD-BYOD4K:

Advertisement

Quick Links

Download this manual

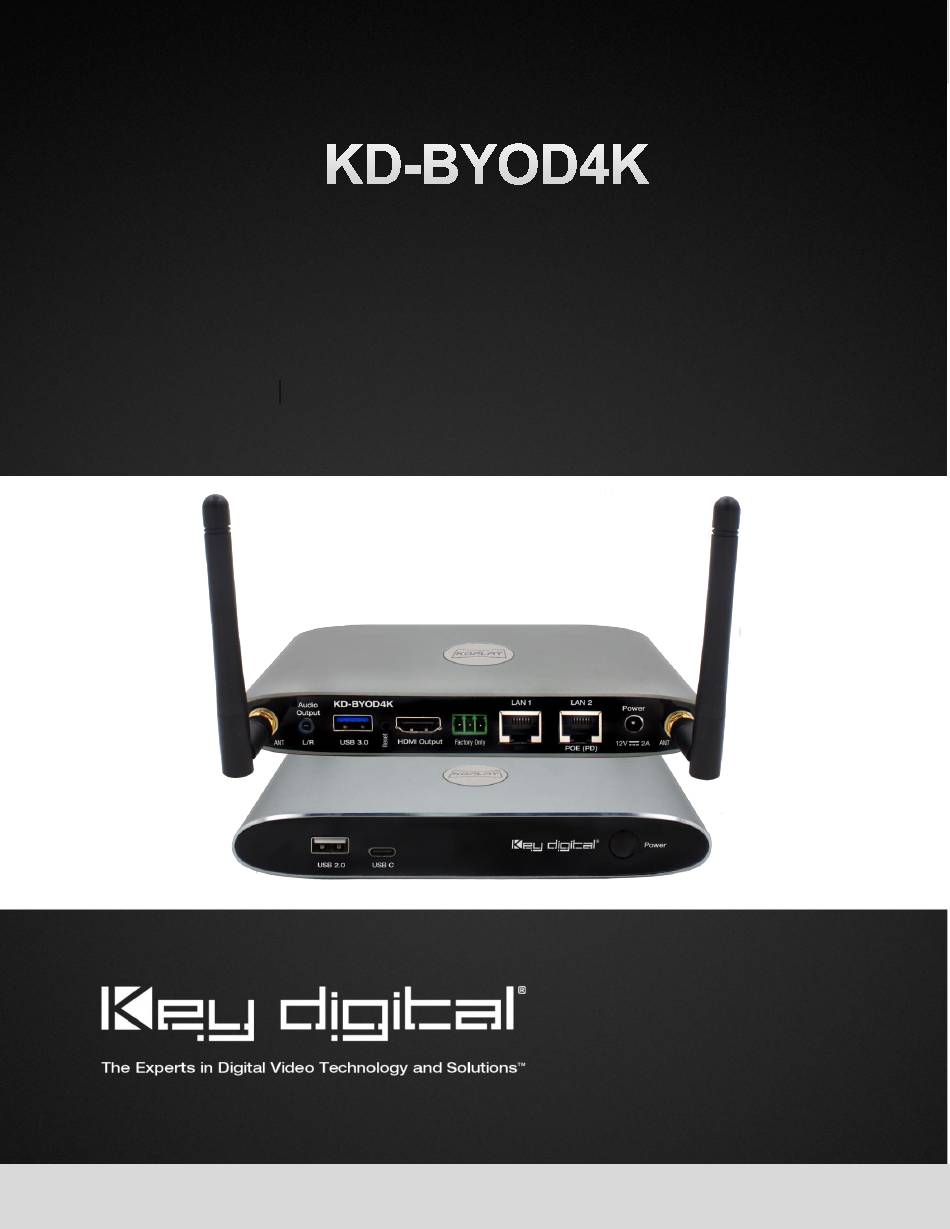

Rev 0 – May 2020
4K KDPlay Wireless Presentation Gateway for PC, Mac, iOS
and Android devices. Full and Multi-Presenter Viewing
Modes. Screen Mirroring via LAN or WiFi with built-in
Antenna. Power over Ethernet, HDMI and Analog Audio
Output, USB Keyboard, Mouse, and Annotation Control
Street Mt. Vernon, NY 10553 • www.keydigital.com
rd
521 East 3
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the KD-BYOD4K and is the answer not in the manual?

Questions and answers

Related Manuals for Key Digital KD-BYOD4K

Summary of Contents for Key Digital KD-BYOD4K

  • Page 1 Rev 0 – May 2020 4K KDPlay Wireless Presentation Gateway for PC, Mac, iOS and Android devices. Full and Multi-Presenter Viewing Modes. Screen Mirroring via LAN or WiFi with built-in Antenna. Power over Ethernet, HDMI and Analog Audio Output, USB Keyboard, Mouse, and Annotation Control Street Mt.

  • Page 2: Table Of Contents

    Rev 0 – May 2020 Table of Contents About KD-BYOD4K WiFi Direct Mode vs LAN Connection Mode Quick Setup Guide Cabling Configure Cast Application Examples Warranty Information Product Warnings & Safety Instructions 192.168.13.1 Default IP Address: Quick Setup Guide Please visit www.keydigital.com...

  • Page 3: About Kd-Byod4K

    KDPlay Flash™ to auto launch. Additional Flash™ may be purchased separately. Android users download the KDPlay™ app and iOS devices natively cast using AirPlay. KD-BYOD4K’s dual network ports enable access via Employee and Guest network for easy internet access. KD-BYOD4K supports 4K...
  • Page 4 What Mode to Use? WiFi Direct or LAN Connection? WiFi Direct Mode (Default) allows wireless devices direct access to the base unit using KD-BYOD4K’s built-in WiFi access point. WiFi Direct Mode is the quickest way to begin casting to your KDPlay™ screen but is not recommended for applications that require internet connectivity.

  • Page 5: Quick Setup Guide

    Rev 0 – May 2020 Quick Setup Guide Begin with KD-BYOD4K, the connected display / touch screen monitor, and all USB or HDMI extension devices turned off with power cables removed. Ensure that all desired functionality is achieved before installing.

  • Page 6: Configure

    4. Enter default password admin 5. Enter NETWORK menu and choose Wireless sub-menu 6. Enter the desired name (SSID) for KD-BYOD4K’s WiFi network. The default network name is KD- BYOD4K-XXXX 7. Enter the desired password for KD-BYOD4K’s WiFi network. The default password is 12345678 8.
  • Page 7 Rev 0 – May 2020 Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 8 10. Enter the WiFi Password and press CONNECT. Press SAVE and verify Connection Status 11. (Optional) To set a desired static IP address to KD-BYOD4K, enter the Ethernet LAN sub-menu. The default IP address setting for LAN Connection Mode is DHCP / Obtain IP Address Automatically. Press SAVE to apply new settings.
  • Page 9 Rev 0 – May 2020 Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 10 Rev 0 – May 2020 Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...

  • Page 11: Cast

    Cast 1. Power on connected HDMI display and select the appropriate HDMI input connection. All instructions are displayed on KD-BYOD4K’s Home Screen 2. (Preferred Method) Casting with KDPlay Flash Auto-Launcher from PC / Mac a. Insert KDPlay Flash drive into computer. KDPlay software will auto launch.
  • Page 12 Press CONNECT button. f) Enter the KD-BYOD4K device’s password, as displayed on Home Screen. g) Press CONNECT button. You are now paired with the KD-BYOD4K device, but not yet Casting. h) Press START MIRRORING to begin casting your content. Street Mt. Vernon, NY 10553 • www.keydigital.com...
  • Page 13 WiFi network, as instructed on Home Screen b. Open Control Center on iOS Device c. Choose Screen Mirroring d. Choose your KD-BYOD4K device you wish to cast to Note: Streaming video from YouTube app via AirPlay is not currently support. Please stream from web browser if needed.
  • Page 14 Choose desired KDPlay screen you wish to cast to. e. Enter the KD-BYOD4K device’s password, as displayed on Home Screen. Press CONNECT button. You are now paired with the KD-BYOD4K device, but not yet Casting. g. Press START MIRRORING to begin casting your content.

  • Page 15: Application Examples

    Rev 0 – May 2020 Application Examples WiFi Direct Mode Touchscreen Annotation in LAN Connection Mode Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 16 Rev 0 – May 2020 Audio De-Embedding and USB Extension Dual Monitor / Extended Monitor Conferencing System Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 17 Rev 0 – May 2020 Integration with Key Digital Complete Presentation Solution Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...

  • Page 18: Warranty Information

    Exposure to rain or moisture Power Supply Use: You MUST use the Power Supply provided with your unit or you VOID the Key Digital® Warranty and risk damage to your unit and associated equipment. Street Mt. Vernon, NY 10553 • www.keydigital.com...
