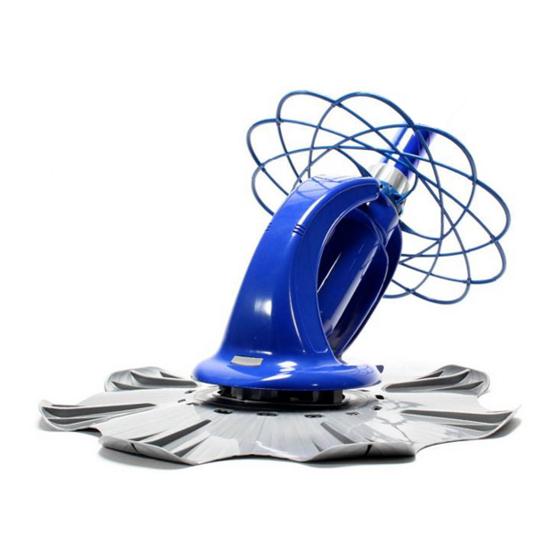

- Page 1 AUTOMATIC POOL CLEANER OPERATING MANUAL 2 00 01 & 20002 THE PREMIUM AUTOMATIC POOL CLEANER...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS:- Read Prior to Use SUCTION HAZARD - When using the Orbit pool cleaner, keep it away from body parts when the cleaner is connected to suction. CHILD DROWNING RISK - Adult use only. Never allow children to use the Orbit pool cleaner. -
Page 3: Step 1: Check Contents
ASSEMBLING & INSTALLING YOUR ORBIT POOL CLEANER STEP 1: CHECK CONTENTS Remove the cleaner body and all parts from the box and check the following components are included. Refer to Figure 1 . Quantity of Description Figure 1 components Cleaner complete with Footpad... - Page 4 Use the Deflector Wheel if your pool has Figure 3 tight corners and/or a ladder. The Deflector Wheel helps guide your Orbit pool cleaner around these obstacles. To fit the Deflector Wheel, simply push it over the Handnut until it has engaged correctly and rotates freely See Fig STEP 4: CONNECT HOSE &...
- Page 5 STEP 5: CONNECTING & USING THE FLOW CONTROL VALVE The Flow Control Valve ensures your Orbit pool cleaner receives the flow required to ensure optimum performance. •Make sure the pool pump is turned OFF. Figure 6 • Expel all the air from the hose.
-
Page 6: Troubleshooting
·Ad just return line e yeb all fi tting s to use th e wa ter flo w to h elp g uid e Orbit aw a y from th e ste ps o r corner. ·Ad just Flo w C on trol Val ve to in crea se flo w to Orbit. -
Page 7: Replacing The Diaphragm
The diaphragm of your Orbit pool cleaner operates at the rate of approximately 360 beats per minute. If your Orbit operates daily for 8 hours, the diaphragm will open and close over 60 million times in a year! The design has been perfected over many years and, properly cared for, the diaphragm will last for several seasons. - Page 8 IEP LOCATOR. Grasp the other end of the DIAPHRAGM (the end furthest away from the INNER EXTENSION PIPE) and pull it away from the Orbit BODY. The DIAPHRAGM will fall clear of the BODY. Twist the DIAPHRAGM, removing it from the INNER EXTENSION PIPE.
- Page 9 To install a new diaphragm, simply reverse the process: Fit the RETAINING RING onto the new Push the DIAPHRAGM onto the INNER DIAPHRAGM. EXTENSION PIPE. Make sure it is correctly located and fully engaged. Pull the INNER EXTENSION PIPE up Gentle turn the INNER EXTENSION PIPE so through the BODY, positioning the tabs so the tabs are aligned with the recesses in the...
-
Page 10: Parts Diagram
PARTS DIAGRAM ITEM NO. DESCRIPTION Main Body Outer Extension Pipe Handnut Inner Extension Pipe Thrust Washer Deflector Wheel Footpad Disc IEP Locator Retaining Ring Diaphragm Red Leopard LLC 2459 N. Horseback Ave. Pine Ridge Florida 34665 Email: sales@red-leopard.net www.red-leopard.net PAGE 10... - Page 11 3. Pattern removal, abrasion or marking on vinyl liners. 4. Damage to vinyl liners where the age, care, maintenance and improper installation of the vinyl liner may have caused it to become wrinkled or brittle. Use of the Orbit ’...
