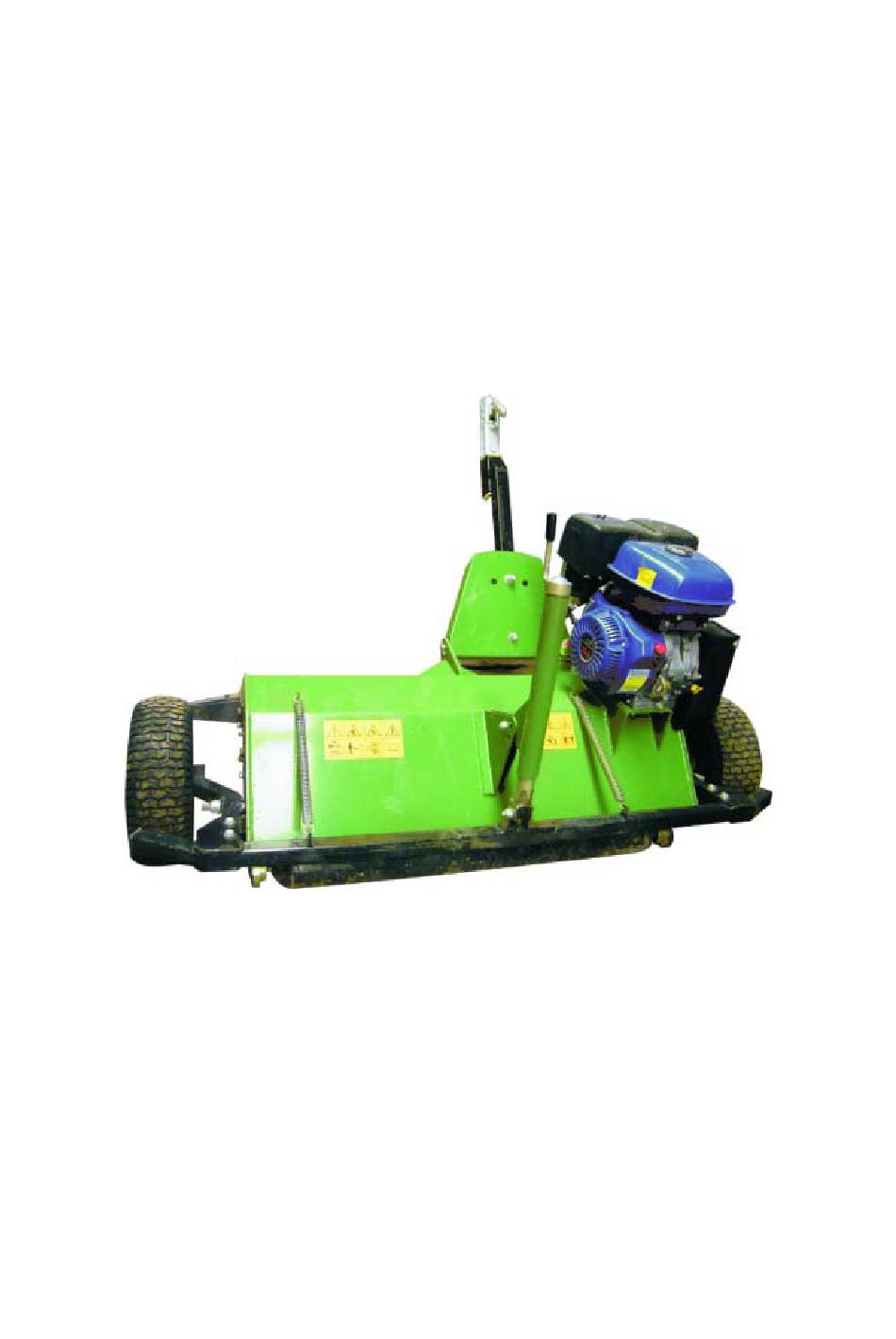

- Page 1 ATV Flail Mower USER MANUAL Before using the machine, please read the manual carefully, ask your local dear or manufacturer if you still have something unclear after you read it. This manual is for only user’s reference. If the product has some changes, please use it according to the exact items.
-
Page 2: Important Safety Information
Introduction NOTICE: This manual must be handed to the operator before use. The operator must understand fully the content of this handbood before using the machine.For the first time.If the implement is resold.this manual must accompany the machine. Note: The information contained in this manual is correct at the time of going to press. However, in the course of development,changes inspecification are inevitable. - Page 3 day’s work.Worn or damaged fails must be replaced before you use the machine. Flails must be replaced in pairs to ensure rotor balance is maintained. --During checks or repairs, ensure the machine can not be started by other persons by mistake.
-
Page 4: Operation
Attachment Before Attaching the Machine Before attachment, always ensure the following: --The machine is in good condition. --All safety guards & decals are in good working order and correctly fitted --All flails are correctly fitted, undamaged, and not worn to excess --Lubrication points have been well greased --The engine oil level is correct &... - Page 5 Quick Offset Drawbar Pull back the locking pin: slide the drawbar to the desired position,and release the locking pin into the securing hole,as shown. Cutting Height Adjustment; The main cutting height adjustment is achieved by using the screw jack to raise or lower the cutting deck as necessary.
- Page 6 deck. Raise the deck to its mas height to assist access to the rotor shaft. Wheel Bearing Inspection Jack one side of the mower body up,so the wheel is just off the ground.Rotate the wheel by hand,and check the wheel alignment.To check the bearings.try to move the wheel from left to right and feel for any play in the bearings (A).
- Page 7 ground. This llows the roller to prevent scalping of the surface, or damage to the blades & rotor.For a fine turf finish with striping, the wheels can be lifted off the ground with the machine weight earing on the rear roller. Please note: machine should not be trans-ported in this condition over ough ground djust the roller by undoing &...
-
Page 8: Maintenance
the offset holes are not to be used for a long period of time, it is worth adding a small amount of grease to each threaded hole to prevent corrosion of the threads. WARNING: Changing the drawbar angle must be undertaken with the engine switched off & the ignition keys removed. - Page 11 Discription Qty. Discription Qty. Body Rotor Rear roller Finishing shovel Stone guard rod Short stone guard Spacer Washer flat Oil seal Rotor houshing Bearing Rotor fixing plate Bearing Oil baffle/spacer bushing Washer spring Roller attachment support plate Skid...
- Page 12 Belt tensioner complete Belt tensioner wheel Tensioner spring Engine key Engine Roll pin Centrifugal clutch pulley spacer Split pin Centrifugal clutch pulley Grease nipple Rotor drive pulley Grease nipple Top hat spacer Grease nipple Taper lock Grease nipple Toothed belt Bolt hex head Transmission guard Transmission guard cover...
