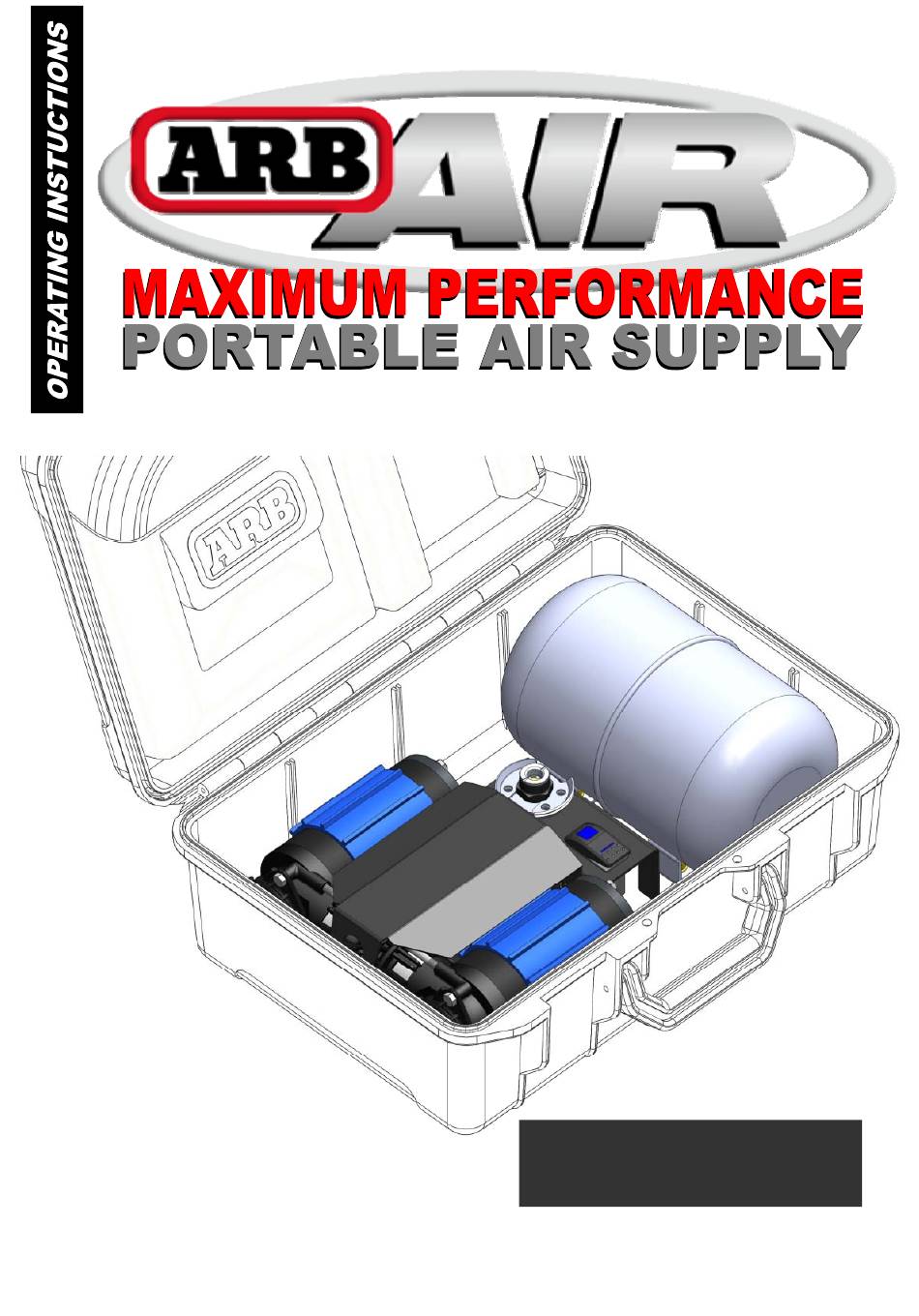

- Page 1 CKMTP12 Part No. 2102MTP12 Revision Date 02/06/11 Copyright © 2011 by ARB Corporation Limited...
- Page 2 No liability is assumed for damages resulting in the use of the information contained herein. ARB Air Locker Air Operated Locking Differentials, ARB Air Locker Air Activation System and Air Locker are trademarks of ARB Corporation Limited. Other product names used herein are for identification purposes only and may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Table of Contents : 1 Introduction Features Of The CKMTP12 Portable Compressor What Is Included Specifications Of The CKMTP12 Portable Compressor 2 Safe Air Compressor Operation Safety Precautions Connecting For Use Tyre Filling Air Powered Tools Keeping The Carry Case Organised Understanding The Built-In Protection Devices 3 Service &... -
Page 4: Introduction
85LPM [3CFM] @ 600kPa [90PSI]. The ARB CKMTP12 is a world class recreational product designed and built to commercial / industrial standards boasting the following features: • Ultra compact twin motor, dual cylinder design makes this the highest flowing portable compressor of its size on the market at 174LPM [6.16CFM]... -
Page 5: What Is Included
Introduction • Pressure switch and relay equipped electrical system prevents run-on when not filling, or any damage to compressor or hoses as a result of the pressure generated from a kinked air line. • Illuminated isolating switch is easy to see at night, and protects the user from hazardous sparking when connecting the alligator clips to the battery terminals. -
Page 6: Specifications Of The Ckmtp12 Portable Compressor
Norgren series 237 Gromelle series 600 WARRANTY This ARB Air Compressor is designed to provide many years of trouble free recreational use, and is warranted to be free from manufacturing defects for two (2) years from the date of purchase. -
Page 7: Safe Air Compressor Operation
If using compressed air accessories (e.g., extension or replacement hoses, or pneumatic devices like air tools) other than genuine ARB, avoid the danger of spontaneous disconnection by using only products with hose fittings that conform to one of the international standards listed in the... - Page 8 2.1.3 Pressure Vessel Safety The ARB CKMTP12 contains two mechanical pressure relief valves that will bleed of pressure the system above 1100kPa [160PSI]. The air tank contains compressed air and could result in an explosion if punctured.
-
Page 9: Connecting For Use
Safe Air Compressor Operation Connecting For Use • Position the compressor on a sturdy flat surface before opening the box. • Unlock and open the box using the two latches. • Make sure that the switch is in the ‘OFF’ position by pressing down on the top of the switch rocker. - Page 10 Safe Air Compressor Operation NOTE : Once compressed air has been expelled through the attached device (e.g., tyre filler, air tool, etc.) and the pressure in the system reduces the pre-set pressure switch 'ON pressure' of 930kPa [135PSI] then the compressor will automatically start running again.
-
Page 11: Tyre Filling
• Attach the ARB tyre filler to any standard tyre valve by depressing the lever on the filler and then pushing the filler onto the tyre valve until a good seal is made. -
Page 12: Air Powered Tools
Safe Air Compressor Operation Air Powered Tools In addition to tyre inflation the ARB CKMPT12 is suitable for operating most air powered tools, some of which are shown below. • With the compressor connected and switched on as described in Section 2.2, connect the air tool to the air hose coupling by inserting it into the... -
Page 13: Keeping The Carry Case Organised
Safe Air Compressor Operation Keeping The Carry Case Organised The ARB CKMTP12 packs a lot of gear into a purpose built carry case. The compressor carry case has been designed with designated storage compartments for the accessories to help keep things organised. The wiring loom has also been configured with the black wire longer than the red to allow it to pack away as neatly as possible. -
Page 14: Understanding The Built-In Protection Devices
Safe Air Compressor Operation Understanding The Built-In Protection Devices This compressor has been equipped with both THERMAL and OVER PRESSURE protection devices in the interests of personal safety and to protect the unit from unnecessary internal damage. NOTE : Never disable or modify any of the compressor’s built-in protection devices. -
Page 15: Service & Maintenance
Service & Maintenance Air Filter Service The ARB CKMPT12 comes factory fitted with high density, high flow, sintered bronze air filters to protect the compressor components, and any accessories that might be used with the compressor, from damage caused by the ingress of dirt and fine dust particles. -
Page 16: Fuse And Wiring Loom Replacement
Replacement 3.2 Fuse And Wiring Loom The CKMTP12 supply wiring loom is connected to the compressor by a sealed high current rated connector. Should the loom or battery clamps be damaged and need replacement the supply loom can simply be unplugged and replaced. -
Page 17: Parts List
Parts List CKMTP12 Portable Compressor Kit – Exploded Parts Diagram... -
Page 18: Itemized Parts List
HOSE COUPLING (US STD FEMALE) 170403 Complete set of CKM series O-ring seals is available SWITCH (12V) 180209 as O-ring Service Kit #320301. (Order two for CKMTP12) SWITCH COVER (ARB COMPRESSOR) 180212 CARRY CASE POCKET 270105 Cover assembly is preassembled with the relays, fan and...
