Installation Instructions

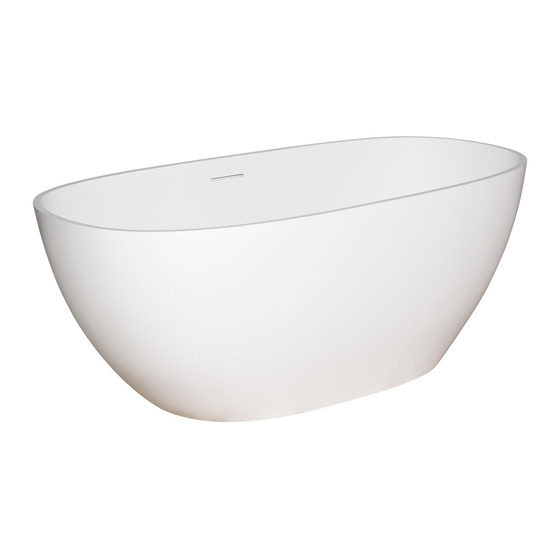

Kado Lussi Freestanding Bath

Important:

• Please unwrap the bath and check it carefully to ensure it has not been damaged in handling or transport.
• Please check that all parts have been supplied.
• Assemble bath on a mat to protect against damage to bath surface.
• Please do not remove the old fixture before you unpack and inspect the new unit.
• Store the bath in a safe place until you begin installation to avoid damage.
• Any installation should be carried out by a qualified tradesman with knowledge of statutory plumbing requirements in your
area.
• This product requires a four person lift – use proper lifting techniques.
• This installation guide does not include details of waste connection; final decision about installation of waste connection
should be taken by a suitably qualified person.
• Install waste pipe and trap - taking into consideration the waste position of the bath. Make sure that the surface where the
bathtub will be placed is perfectly flat, clean, free of any excess humidity and offers adequate support.
A suggested bath component list for Slab floor or 2nd storey bath connection or Timber floor with clear access underneath is
listed below:
1. Slab floor or 2nd storey suggested bath connection component list:
• 1405525 DWV Adaptor PVC X FI 40mm
• 1400105 40mm DWV PVC pipe (installer to cut to length)
• 1400155 Smart Seal D101 seal
• 1400140 Smart Pan
• 1400146 DWV Smart Trap 100 X 50mm
2. Timber floor with clear access underneath:
Connection of bath waste to 40mm P-Trap in timber sub-floor is acceptable when clear access is available under the floor.
• 1409115 Dura Standard P Trap 40mm or 1409121 Dura Short P Trap 40mm
• 1400105 40mm DWV PVC pipe (installer to cut to length)
Plumbers, please ensure a copy of the installation instructions
is left with the end user for future reference
