Plastica SLIDELOCK REEL SYSTEM Assembly Instructions

How to Uncover
1. Making sure nothing is attached to the cover or in the way, wind the cover back onto your reel.
2. If you have a mobile system, remove brake or unscrew the deck anchors if fitted, move the reel back
out of the way and re-apply the brake when in position. Fit elasticated quick Fit Strap PRD115 and
Protector Cover (recommend optional extras).
VERY IMPORTANT If using a solar cover, please fit the protector cover over the reel when cover
is being stored. This will stop U.V. damage to the cover.
Strap Set Spares and Optional Extras
WEB302 Short Strap 0.4m
WEB303 Long Strap 1.5m
BUC100 Strap Buckle
PRD020PFB Blue Press Fix Connector (x 20)
WED200 Small Wedge for Outer Tube (Pack of 10)
WED100 Large Wedge for Inner Tube (Pack of 10)
RTS100 Thumb Screw
PRD103 Pan Head Self Tapping Screw 10 x 0.5in (Pack of 8)
Protector Cover
PSC901 25m x 1.22m Roll
PSC920 6m x 1.22m Roll
PRD115 Elasticated Quick Fit Strap Kit (pack of 3)
PRD113 140cm Elastic Cord with Toggle Ends (pack of 8)
Optional Extras for Type A
End Stands Only
PRD150 Castor Pack
PRD125 Threaded Deck Anchor Set
PRD00032 Threaded Deck Anchor
PRD00033 Brass Anchor Plug
Plastica Ltd • Perimeter House • Napier Road
Castleham Industrial Estate • St Leonards-on-Sea • TN38 9NY • UK
Tel: +44 (0)1424 857857 • Fax: +44 (0)1424 857858
email: info@plasticapools.com • www.plasticapools.com
V2_06/2019
400mm
515mm
PRD00003
PRD127
Outer
Tube Straps
PRD110
PRD111
PRD00012
OPTIONAL EXTRAS
Braked
Threaded
Castor
Deck
Anchor
Set
(Type A End Stand ONLY)

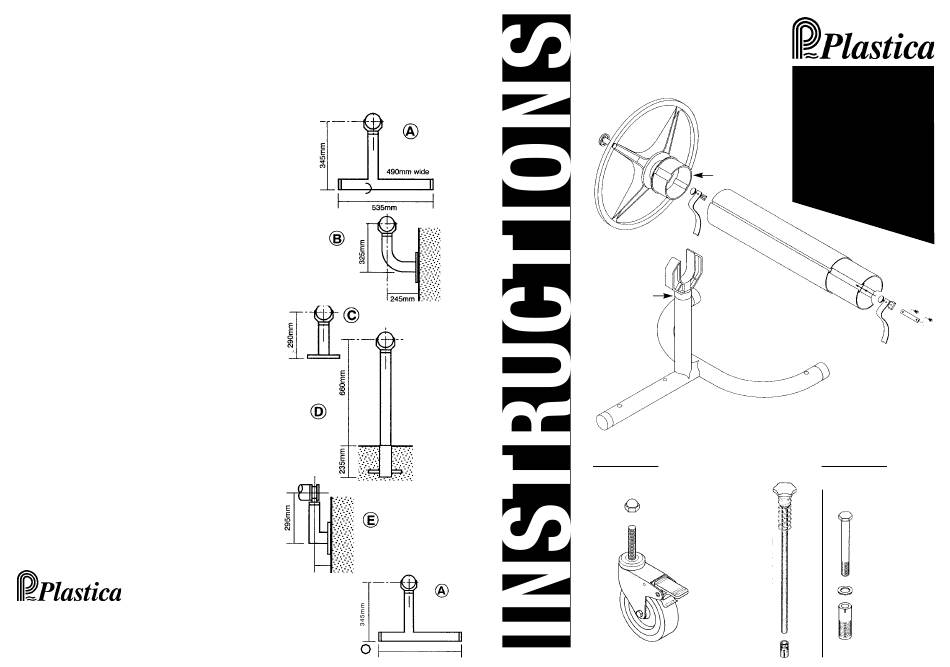

SLIDELOCK
